Product Description

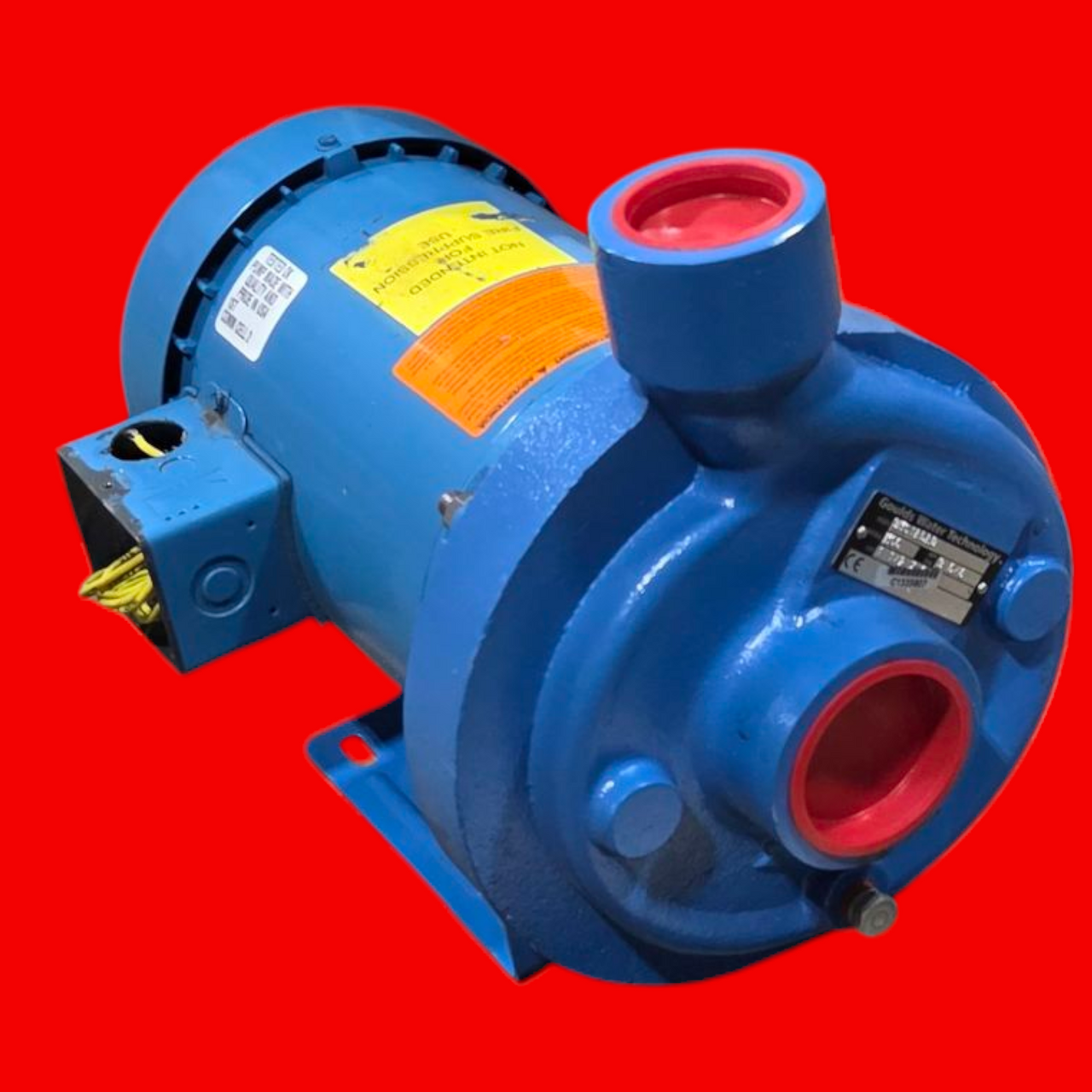

Goulds Water Technology MCC Series Centrifugal Pump, Size 1 1/2 x 2-6, 3MC1E5E0
PN: 3MC1E5E0
Goulds 3MC1E5E0 MCC Series Centrifugal Pump, Size 1 1/2 x 2-6, Cast Iron, Close Coupled, 1 HP, 208-230/460 Volt, 60 hz, Three Phase, BUNA Mechanical Seal, TEFC - Totally Enclosed Fan Cooled Motor, 3500 RPM, 3.625" (3 5/8") Impeller Diameter, 2" NPT Suction, 2" NPT Discharge
- Capacities (GPM): 220 GPM (56.8 m3/hr) at 3500 RPM
- Casing Material: Cast Iron
- Discharge NPT (Inches): 1 1/2" NPT
- Heads To (Feet): 142 feet (43 m) at 3500 RPM
- HP: 1
- Hz: 60
- Impeller Size (Inches): 3.625" (3 5/8")
- Maximum Operating Temperature: 212°F (100°C) with standard seal or 250°F (121°C) with optional high temperature seal.
- Maximum Working Pressure (PSIG): 75 PSIG (5 bars) or 125 PSIG (9 bars) with optional seals
- Motor Enclosure Type: TEFC - Totally Enclosed Fan Cooled
- Phase: 3 Ph (Three Phase)
- Pump Size: 1-1/2 x 2 -6
- Quick Specs: 1HP 3/60/230-460 TE 3.62"
- Rotary: Carbon
- Shaft Seal Material: Carbon / Ceramic / SS Buna-N
- Speed (RPM): 3500
- Stationary: Ceramic
- Suction NPT (Inches): 2" NPT
- Voltage: 208/230/460
