Product Description

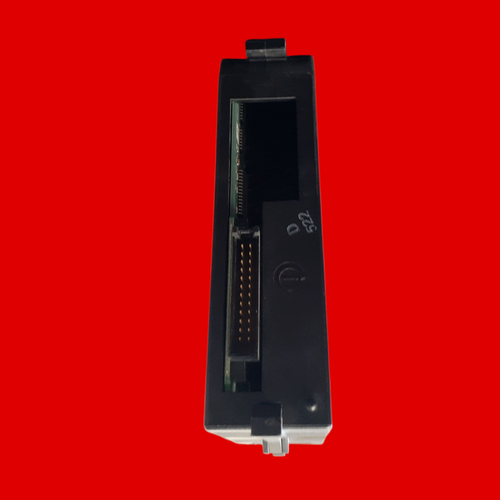

GE Fanuc Series 90-30 Discrete Output Module, IC693MDL340G
PN: IC693MDL340G
- Series: Series 90-30
- Product Description: Discrete output module
- No of Channels: Sixteen (16)
- No. of groups: Two (2)
- Product Type: Output Module
- No. of channels per group: Eight (8)
- Rated Voltage: 120 V AC
- Output signal range: 85-132 VAC
- Output Voltage Range: 85 to 132 V AC
- Nominal output voltage: 120 VAC
- Frequency: 50 to 60 Hz
- Output current per point: 0.5 A
- Outputs: 16
- Isolation between field side and logic side: 1500 V
- Inrush current: 20 A for one cycle
- Isolation between each group: 500 V
- On Response time: 1 ms
- Max. Output Voltage Drop: 1.5 V
- Off response time: ½ cycle
- Max. Output Leakage Current: 2 mA at 120 V AC
- Isolation: 1500 volts between field side and logic side; 500 volts between each group
- Min. Output Leakage Current: 1 ms
- Minimum Load Current: 50 mA
