Product Description

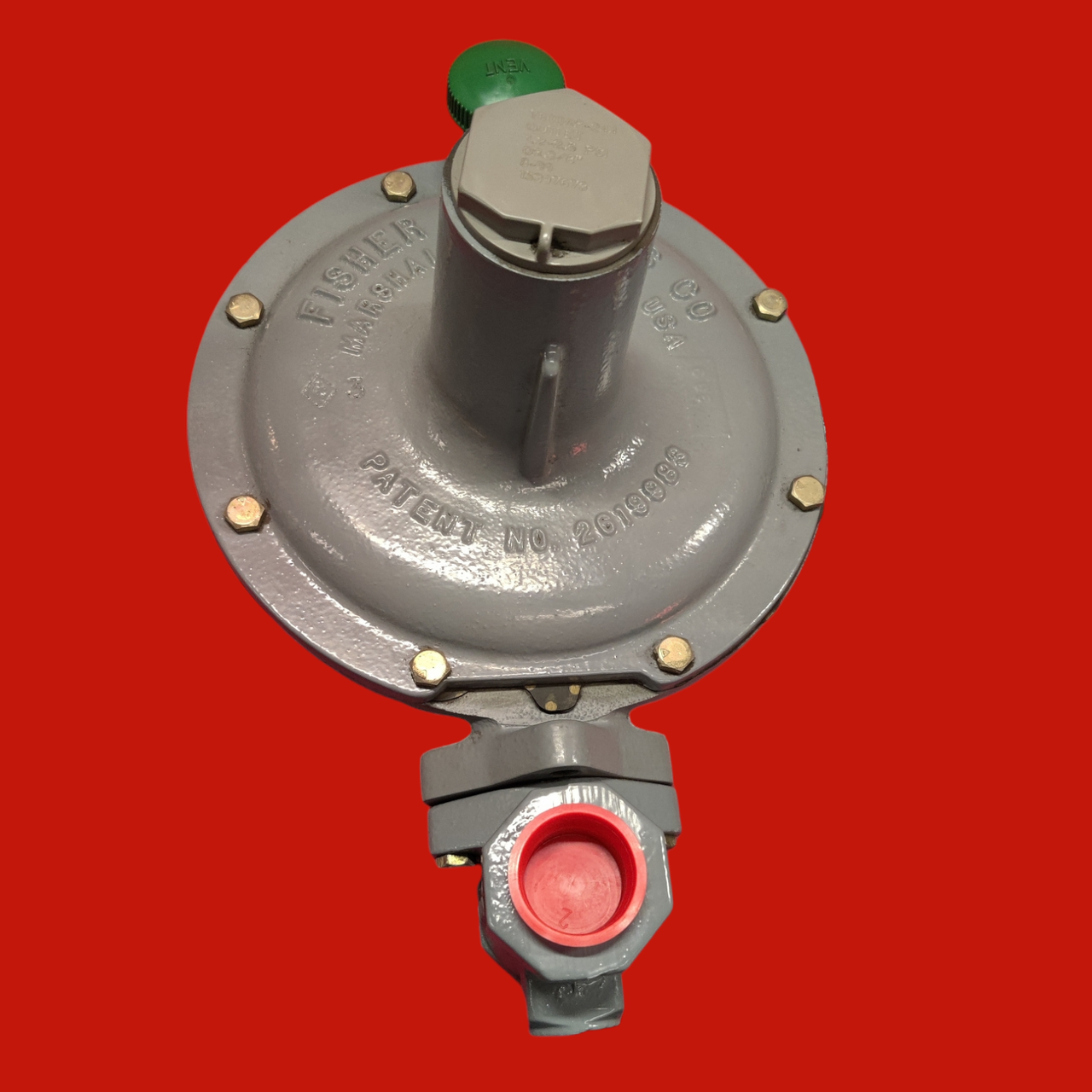

Fisher Controls Y600AR-244 Pressure Reducing Regulator 1" NPT
PN: Y600AR-244
- Series: Y600A
- Type Y600AR: Type Y600A with internal relief valve.
- Size: 1" x 1" NPT screwed
- Maximum Inlet Pressure (Body Rating): 150 psig (10, 3 bar)
- Maximum Outlet Pressure (Casing): 20 psig (1, 4 bar)
- Maximum Operating Outlet Pressure to Avoid Internal Parts Damage: 2 psig (0, 14 bar) above oulet pressure setting
- Material Temperature Capabilities: -20° to 180℉ (-29° to 82℃)
- Spring Case Vent Connection: 1/4" NPT
- Approximate Weight: 13 lbs (5, 9 kg)
