Product Description

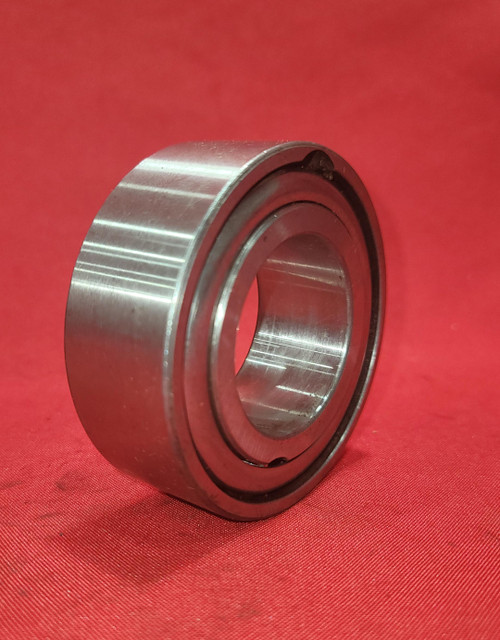

Federal Mogul 5307W Double Row Angular Contact Bearing
- -Inner Dia. 35mm
- -Outside Dia. 80mm
- -Width 1-3/8"
- This item is surplus and in New condition
35 mm Bore, 80 mm OD, 1.3750 in Width, Open, 30 ° Contact Angle, C0
| Bore Diameter | 35 mm |
|---|---|
| Outside Diameter | 80 mm |
| Overall Width | 1.3750 in |
| Contact Angle | 30 ° |
| Row Type & Fill Slot | Double-Row Non-Fill Slot |
| Internal Clearance | C0 |
| Closure Type | Open |
| Radial Dynamic Load Capacity | 15600 lb |
| Radial Static Load Capacity | 10800 lb |
| Cage Material | Steel |
| Outer Ring Width | 1-3/8 in |
| Maximum RPM | 5220 RPM |
| Finish/Coating | Uncoated |
| Precision Rating | Not Rated |
| Fillet Radius | 1.5 mm |
| Series | 5300 |
| Weight | 1.92 lbs |
