Product Description

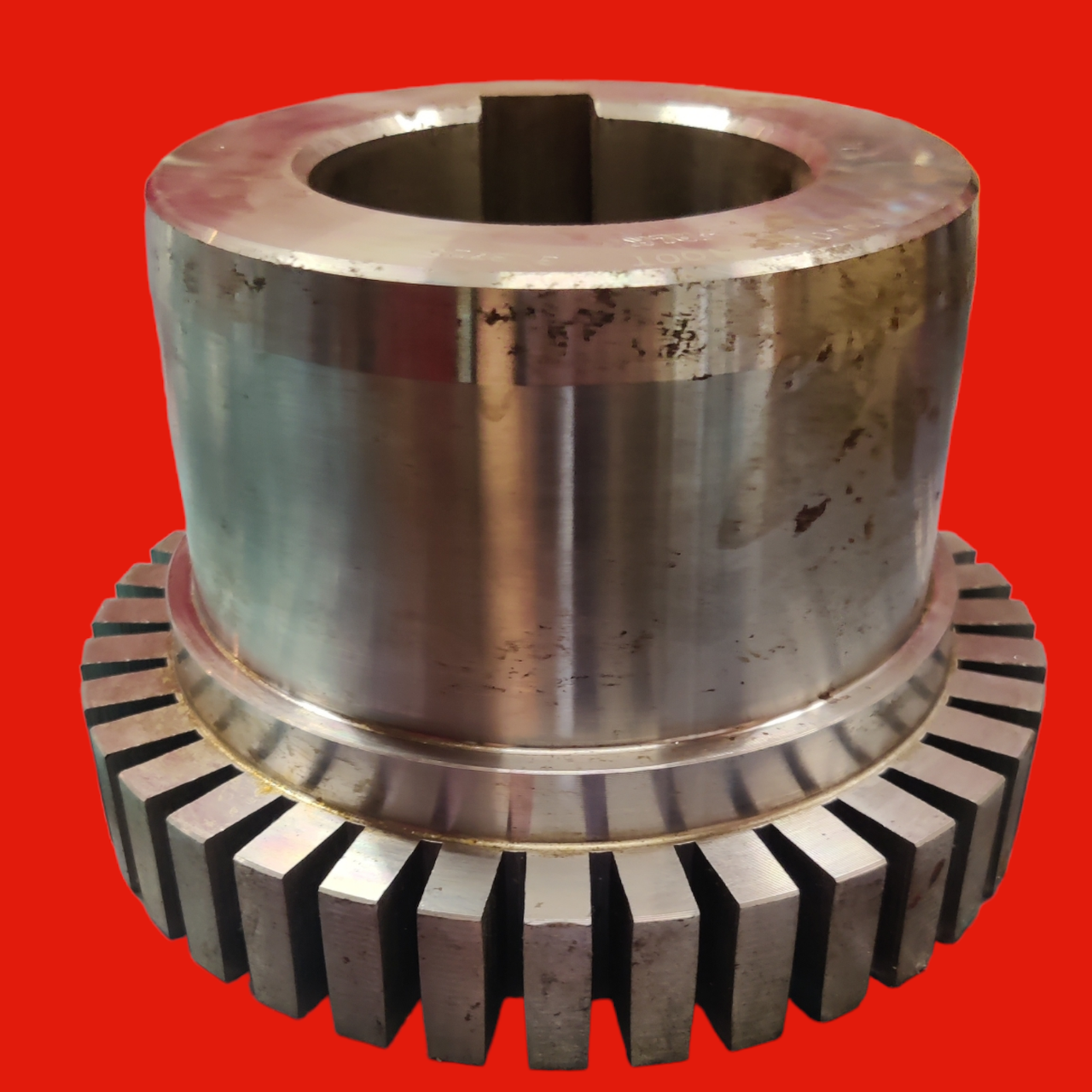

Falk 0744018, 1100T HUB
PN: 0744018
Falk T10_T20 Series Standard Hubs size(s) 1100T with a 5.590-inch outside barrel diameter and 4.75-inch length for grid couplings.
- Coupling Size:1100T
- Coupling Type:Grid
- Height:6.00
- Hub Barrel Outside Diameter (in):5.59 in
- Hub Bore Fit:Interference
- Hub Length through Bore (in):4.75 in
- Hub Material:Steel
- Hub Straight Bore Diameter [Max] (in):3.3735 in
- Hub Straight Bore Diameter [Min] (in):3.3725 in
- Hub Straight Bore Diameter [Nom] (in):3.375 in
- Hub Style:Bored
- Hub Type:T-Hub
- Keyway ANSI Standard:True
- Keyway Depth (in):0.4375 in
- Keyway Fit:Commercial
- Keyway Width (in):0.875 in
- Length:7.90
- Net Weight:26.00
