Product Description

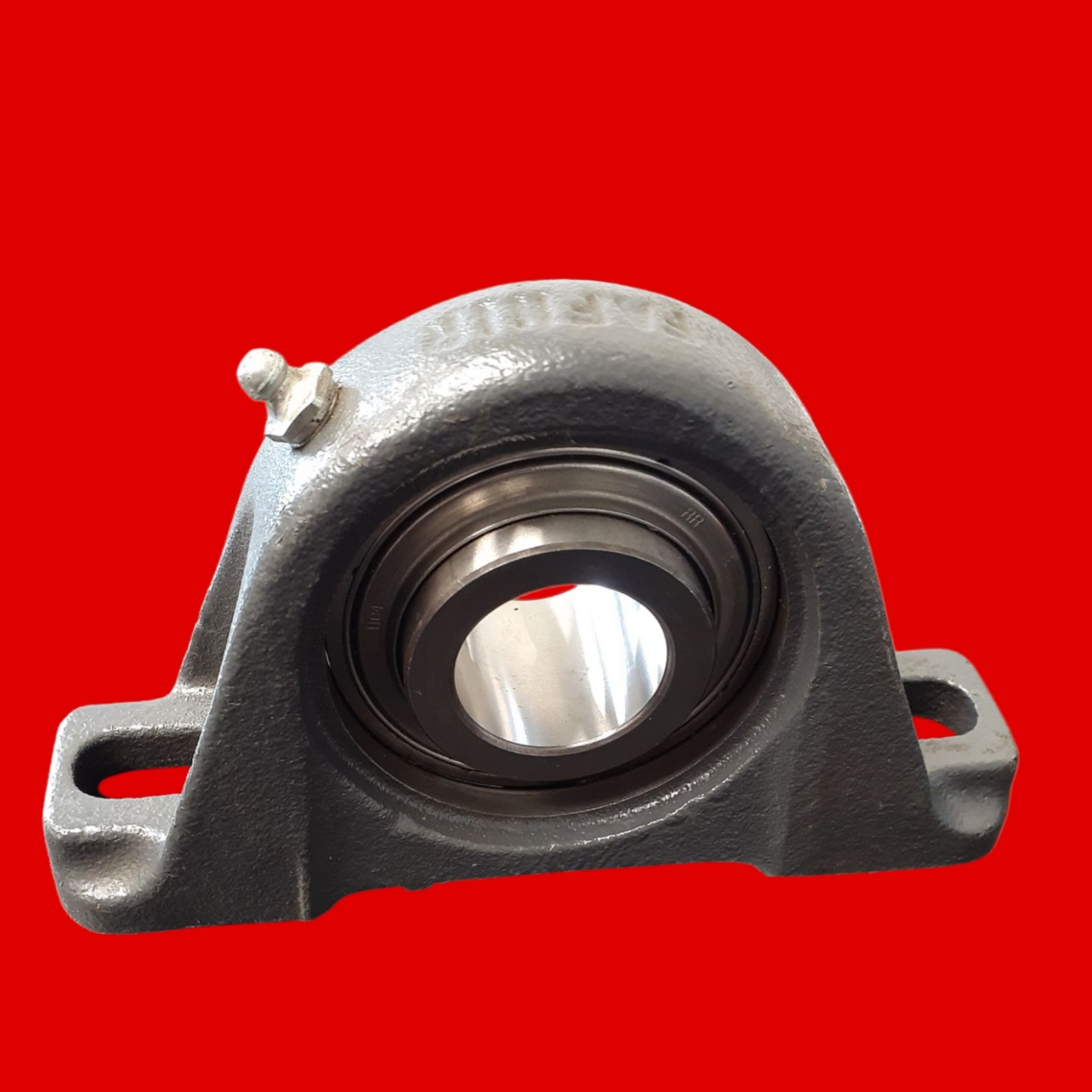

Fafnir 1-1/4" Pillow Block Bearing, RAS1 1/4
PN: RAS1 1/4
- Lubrication: Relubricatable
- Series: RAS Series
- Bearing Design: Non-Expansion
- Base Width: 1 25/32 in
- Housing Construction: 1 Piece
- Bolt: 1/2 in
- Bolt Hole Width: 9/16 in
- Bearing Type: Ball Bearing
- Shaft Dia. 1.25 in
- Base Length: 6 9/16 in
- Length Through Bore: 1 31/64 in
- Overall Width: 2 11/64 in
- Seal Type: Contact Seals
- End Type: Open End
- Bearing Insert: G1104KRRB
- Bolt Holes: 2
- Dynamic Load Rating: 6,400.00 lbf
- Static Load Rating [Max]: 3,400.00 lbf
- Base Height: 23/32 in
- Bolt Hole Length: 31/32 in
- Housing Material: Cast Iron
- Bolt Hole Spacing: 5 1/8 in
- Mounted Unit Duty: Normal-Duty
- Center Line to Base Dimension [Min]: 1 7/8 in
- Outer Ring Size: 207
- Pillow Block Type: Thru-Bolt
- Housing Height: 3 3/4 in
- Insert Type: Steel Insert
- Inch/Metric: Inch Bore
- Weight: 4.368 LB
No locking collar.
