Product Description

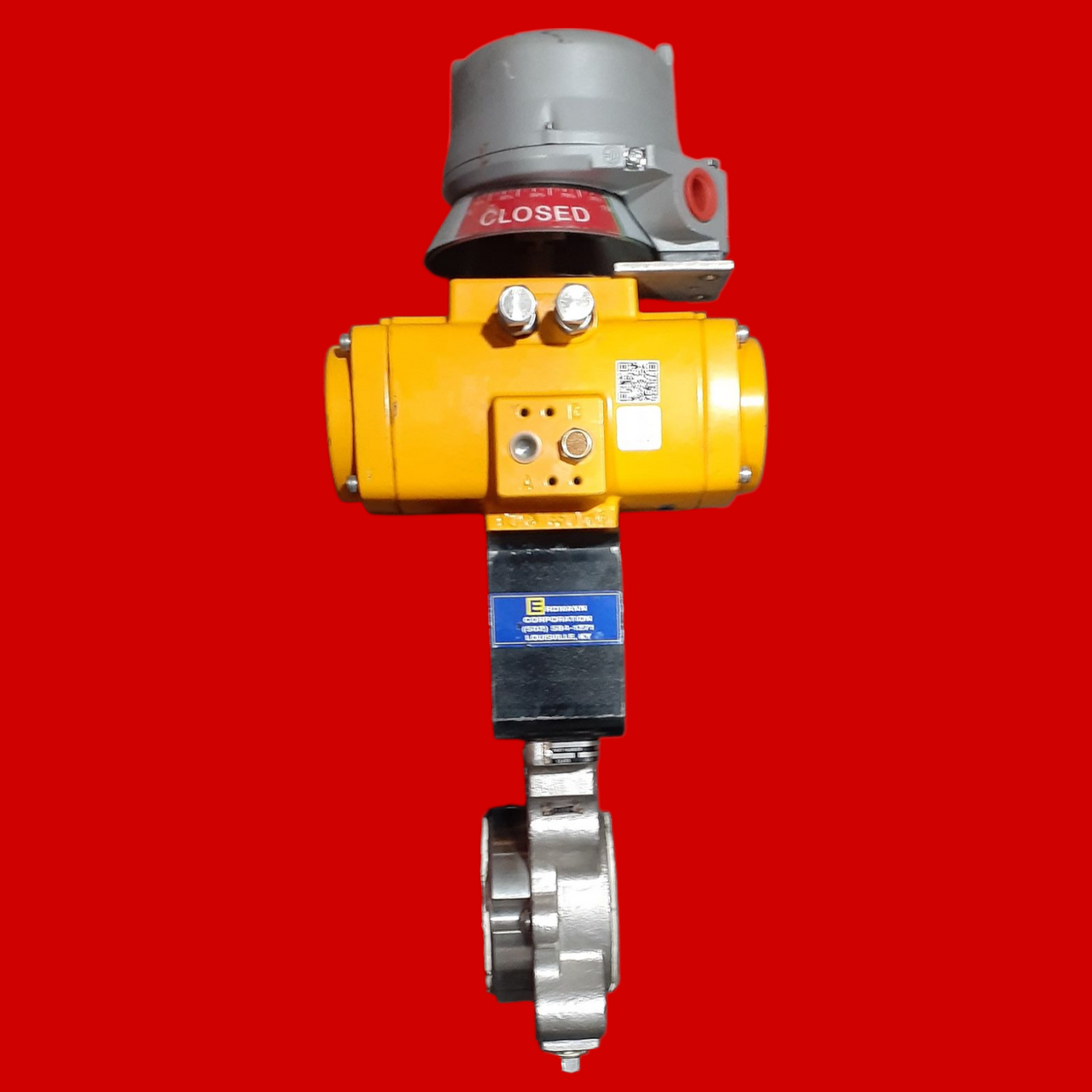

EL-O-Matic F-Series Rack and Pinion Pneumatic Valve Actuator, F0065U with StoneL Quartz QX Explosionproof Mechanical Switch, and 2" DeZURIK BHP Butterfly Valve
PN: F0065U
- Type: F0065U
- PED Group: 2
- PS max: 8 Bar (120 PSI)
- Temp Range: -20°C (-5°F) to +75°C (+165°F)
- Power Source: Pneumatic
- Product Type: Pneumatic Rack and Pinion Actuator
- Actuation: Quarter-turn
- Certifications: ROHS3, REACH, ATEX, PED and Machinery Directives, SIL3, IP66/67
- Control Type: On/Off, Positioning, Modulating, ESD
- Valve Type: Ball, butterfly, plug and any other quarter turn application
PN: QX2VE02SRA StoneL Quartz QX Explosionproof Mechanical Switch
- Conduit Entries: (1) 3/4 in. NPT & (1) 1/2 in. NPT
- Electrical Ratings: 10 A @ 125/250 VAC 0.5 A @ 125 VDC
- Function: (2) SPDT Switches
- Product Type: Limit Switches
- Visual Indication: Red closed/green open
- Approval: B
- Product Category: Switches
PN: 2098560R001 DeZURIK BHP Butterfly Valve
- Size: 2"
- Class: 300
- Style: BHP
- Disc: 316
- Press @ 100°F: 275 PSI
- Shaft: 2205
