Product Description

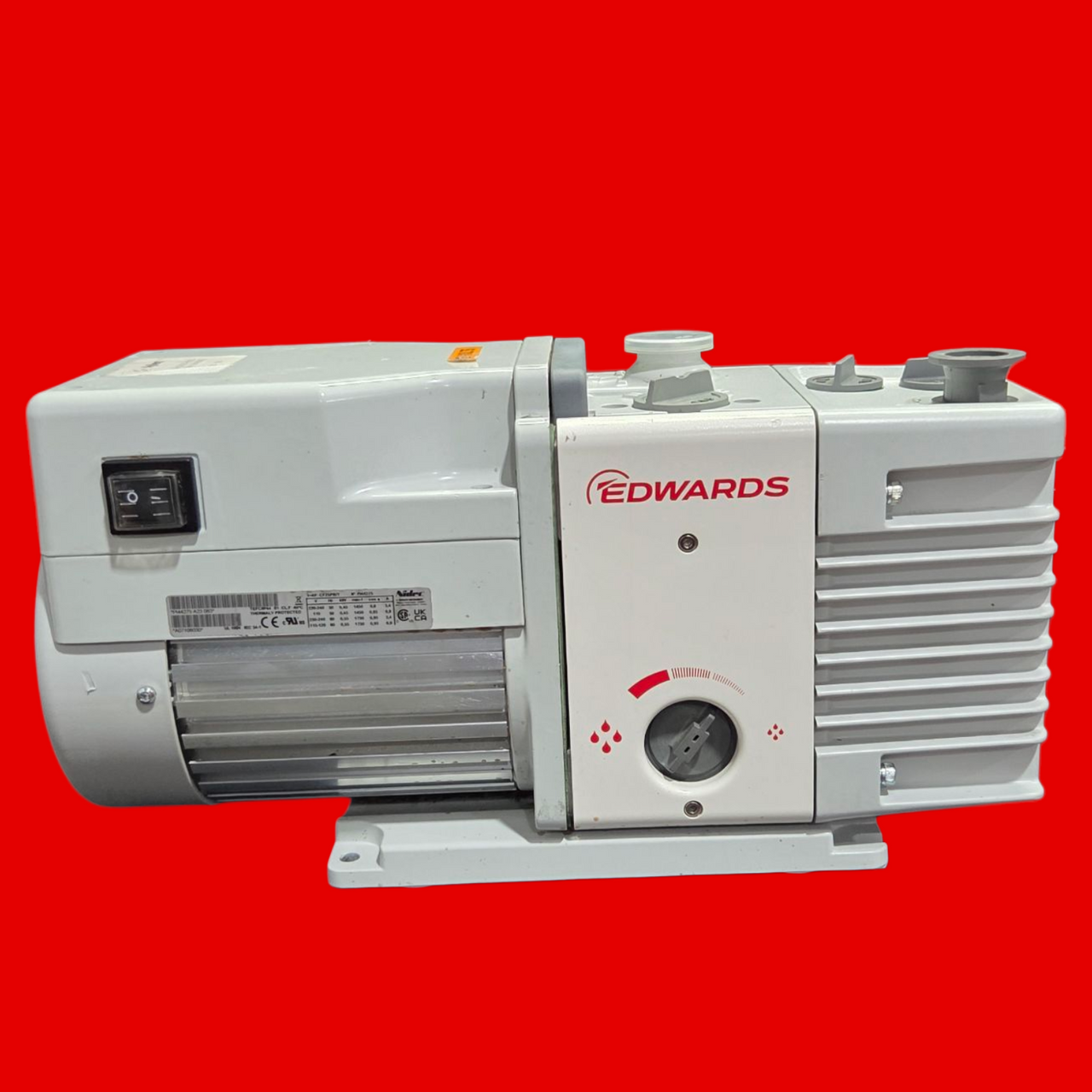

Edwards RV5 Two-Stage Rotary Vane Vacuum Pump, A65302906

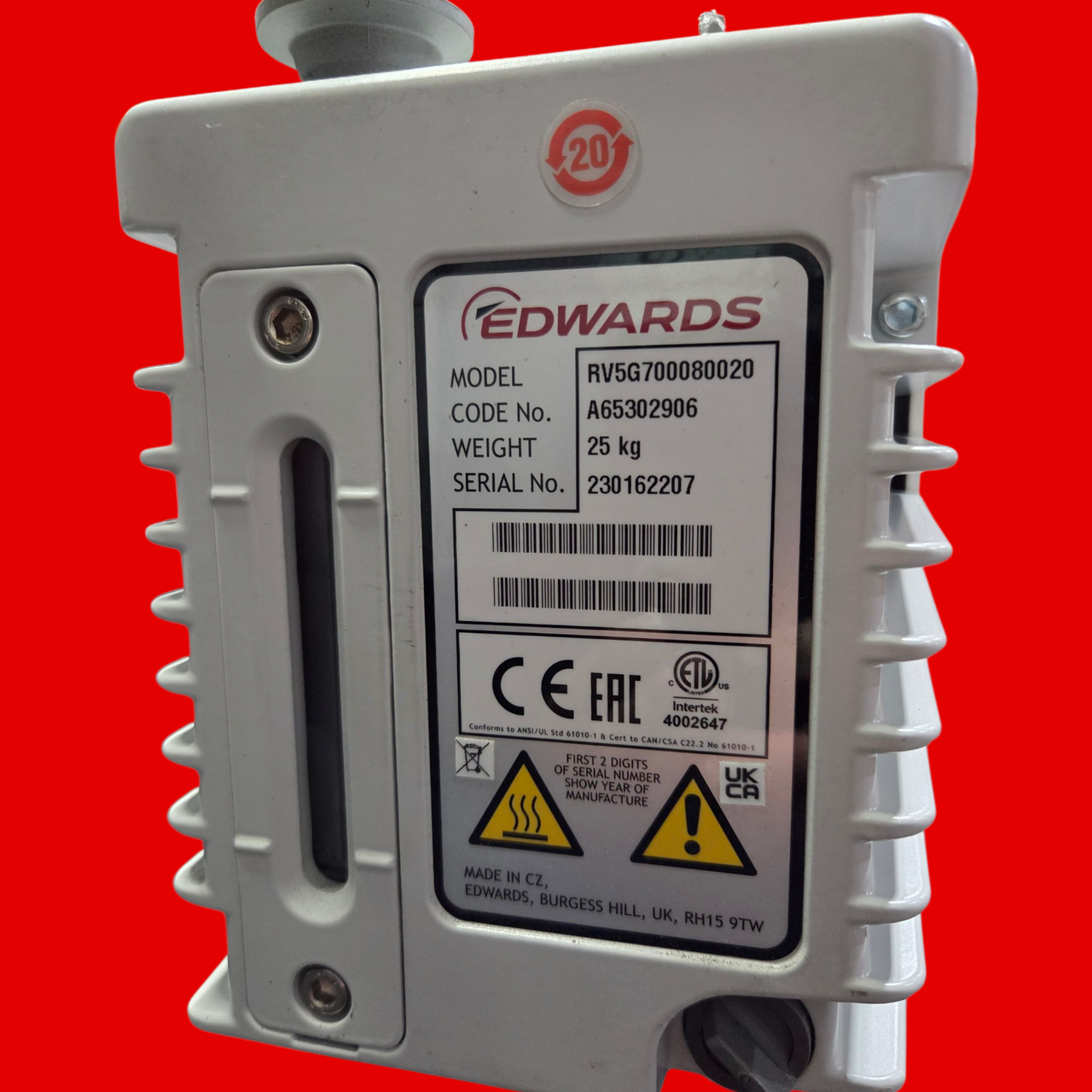

Model: RV5G700080020
Code: A65302906
- Pumping Speed: 5.1 m³/h at 50 Hz and 6.2 m³/h at 60 Hz
- Ultimate Pressure: 2.0 X 10-³
- Oil Capacity: 0.42 to 0.7 liters. The recommended oil is Ultragrade 19
- Noise Level: 48 dB(A) at 50 Hz
- Operating Temperature Range: 12 to 40°C
- Voltage: The pump can operate on either 115V or 230V, 50/60 Hz, single-phase power
The pump features a dual-mode system, allowing it to be configured for either high vacuum or high throughput applications without compromising performance. It also has a fast-acting inlet valve for protection against suck-back and a two-position gas ballast control.
