Product Description

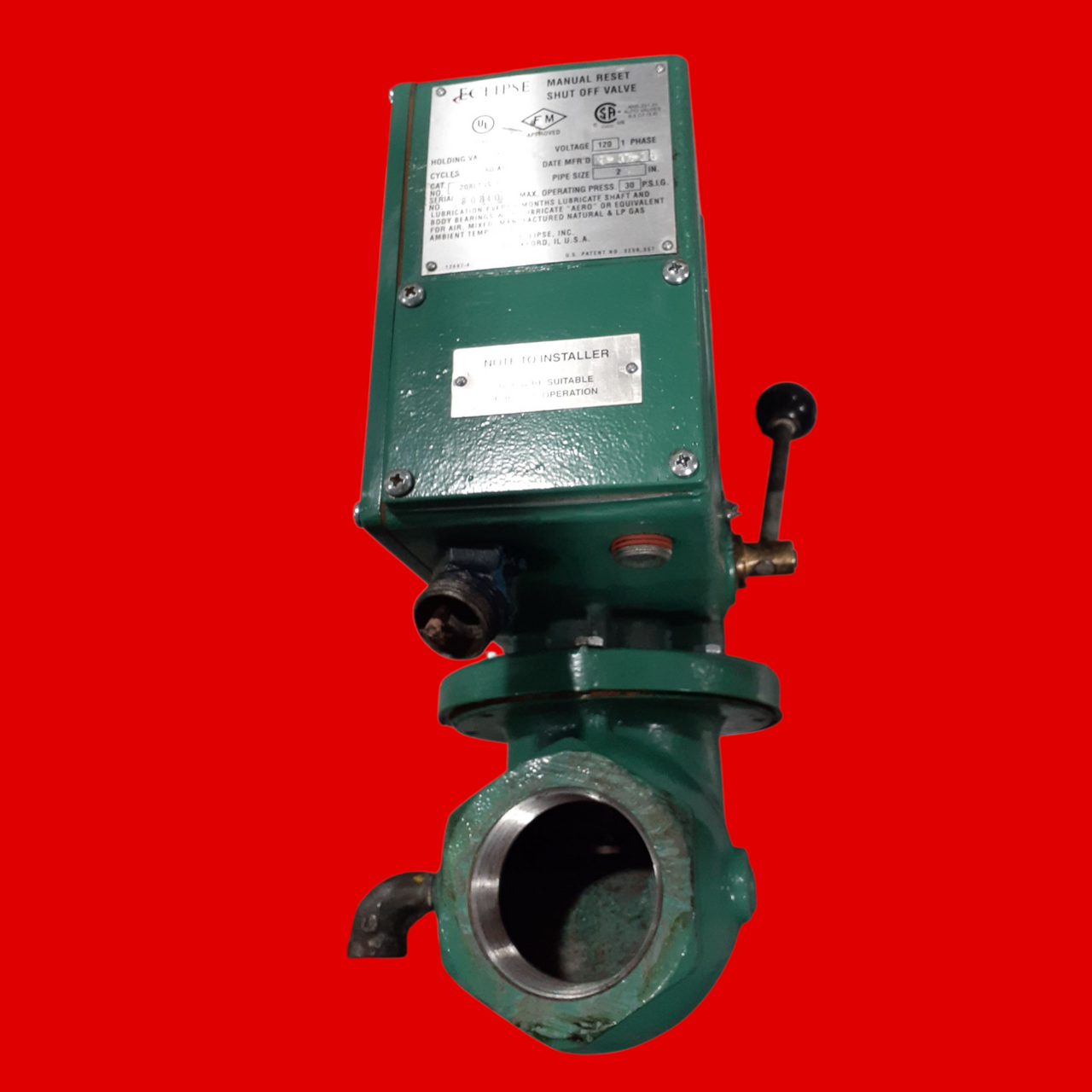

Eclipse Series 200 LT Locktite Manual Reset Gas Shut-Off Valve, 2" NPT, 208LT-IS-3
PN: 208LT-IS-3
Eclipse 200 LT valves are manually opening valves that automatically shut off gas supply to a combustion system when any interlocking limit switch opens. The valve handle cannot be reset until the condition causing the open switch is corrected and all limit switches are closed. Typical limit switches include air pressure, gas pressure, temperature limit, and flame monitoring contacts. In the event of a power failure, the valve immediately closes.
Features
- UL listed, FM & CSA approved.
- Snap-acting solenoid for fast closing.
- Two visual indicators of valve position.
- Raintight construction.
- Soft seat disc for positive shut-off.
- Two built-in auxiliary switches.
- Ball bearing tip mechanism reduces wear.
Specifications
- Pipe Size: 2"
- Holding VA: 15
- Cycles: 50 AC
- Voltage: 120, 1 Phase
- Max Operating Pressure: 30 PSIG
