Product Description

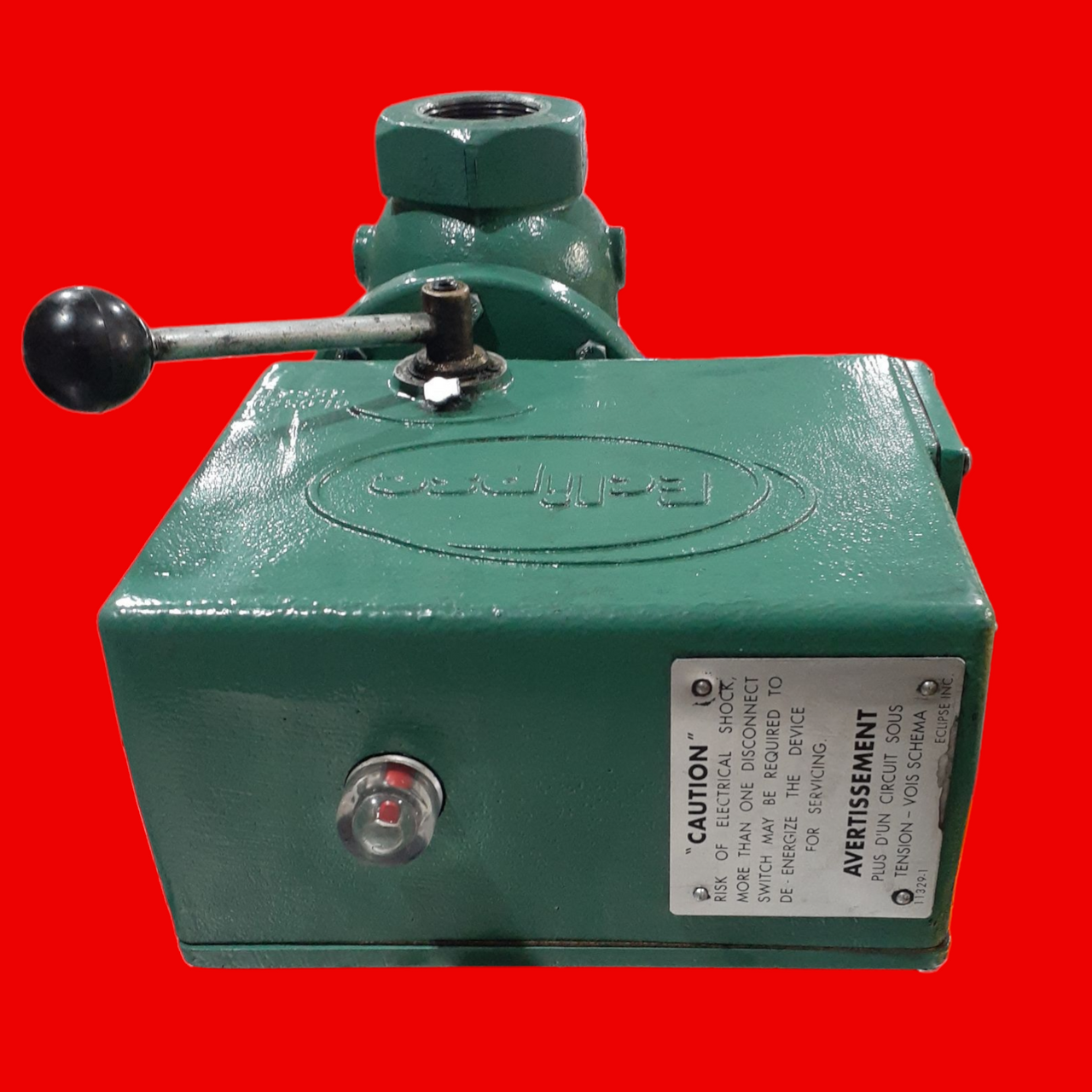

Eclipse Locktite 206LT-IS-3 Manual Safety Gas Shut-Off Valve
Part# 206LT-IS-3
- Holding VA: 15
- Voltage: 120 VAC; 1 phase
- Cycles: 60 AC
- Cat No: 206LT-IS-3
- Date Mfr'd: 3-8-99
- Pipe Size: 1 1/2" NPT
- Serial No.: 10958
- Max Operating Press.: 30 P.S.I.G
Eclipse 200 LT valves are manually opening valves that automatically shut off gas supply to a combustion system when any interlocking limit switch opens. The valve handle cannot be reset until the condition causing the open switch is corrected and all limit switches are closed. Typical limit switches include air pressure, gas pressure, temperature limit, and flame monitoring contacts. In the event of a power failure, the valve immediately closes.
Series 200 LT valves include two visual indicators of “open” or “closed” position: a red “flag” visible in the plastic dome on top of the valve; and the reset handle position as indicated by cast markings on the operator case. These valves also include two SPDT micro-switches that can be used for auxiliary circuits. Two contacts are made when the valve opens, and two are made when the valve is closed.
Temperature Limits
Maximum Inlet & Differential Pressure
Gases
Electrical
Approvals
200 LT Specification
+125° to –20° F (+52° to -29° C) fluid and ambient . Below 32° F (0° C) the gas must be free of water vapor which could condense and freeze within the valve.
1" thru 2" 30psig 2-1/2" thru 4" 20psig
UL listed for air, natural gas, LP gas and hydrogen.
FM approved for natural, LP and manufactured gases.
CSA approved for natural, LP, mixed and manufactured gases.
Contact Eclipse for other gases. For corrosive or wet gases such as coke oven or digester gas, corrosion-resistant valve trim must be installed at Eclipse.
Volts/Cycles
Holding Current Auxiliary Switches (2)
UL Listed, FM & CSA approved
This item is used; Good working order and Bench Tested.
