Product Description

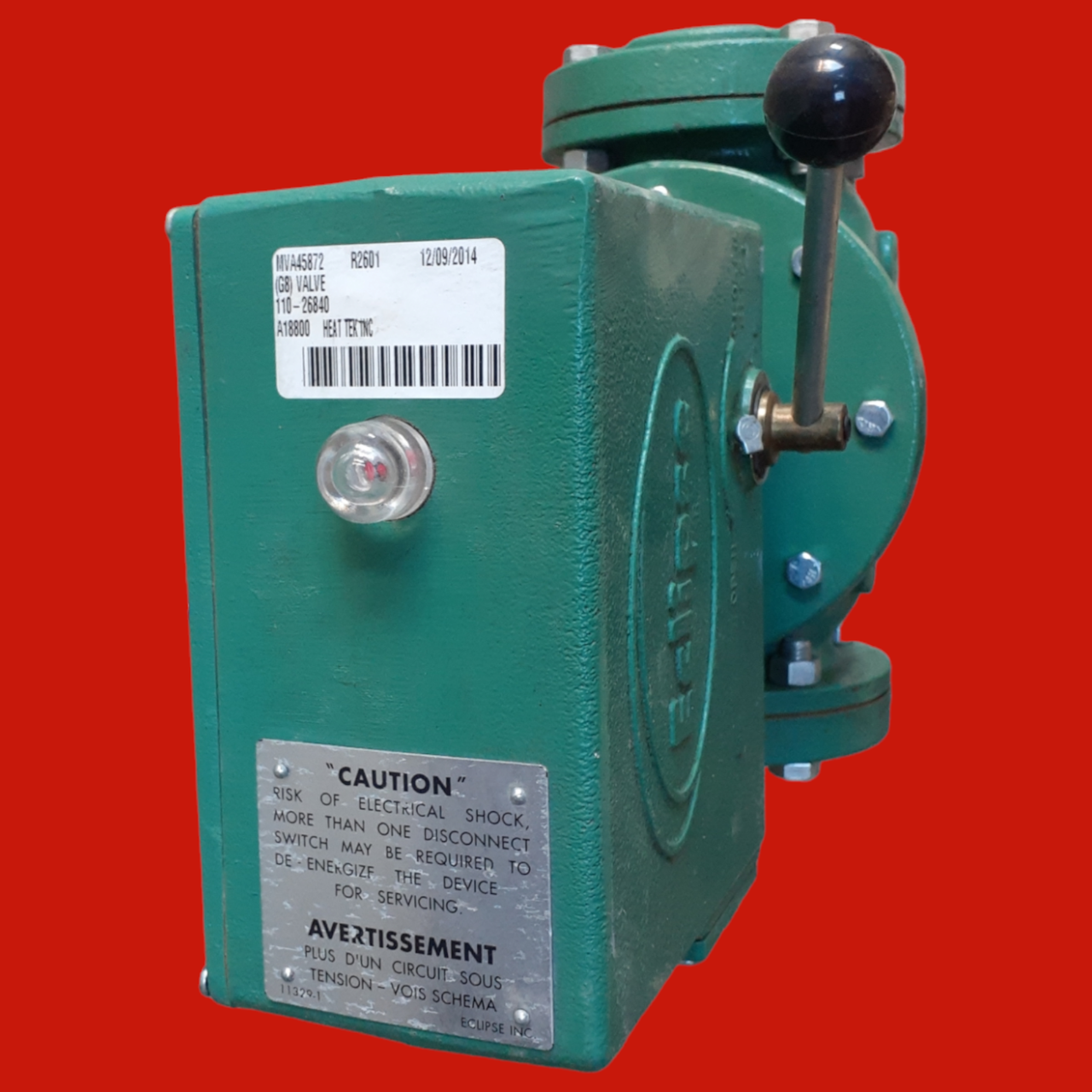

Eclipse 212LT-IF-3 Manual Reset Shut-Off Valve
PN: 212LT-IF-3
Eclipse 200 LT valves are manually opening valves that automatically shut off the gas supply to a combustion system when any interlocking limit switch opens. The valve handle cannot be reset until the condition causing the open switch is corrected and all limit switches are closed. Typical limit switches include air pressure, gas pressure, temperature limit, and flame monitoring contacts. In the event of a power failure, the valve immediately closes.
- UL listed, FM & CSA approved.
- Snap-acting solenoid for fast closing.
- Raintight construction.
- Soft seat disc for positive shut-off.
- Two built-in auxiliary switches.
- Ball bearing trip mechanism reduces wear.
Specifications:
- Holding VA: 15
- Cycles: 60 AC
- Voltage: 120
- Pipe Size: 3"
- Max Operating Pressure: 20 P.S.I.G.
