Product Description

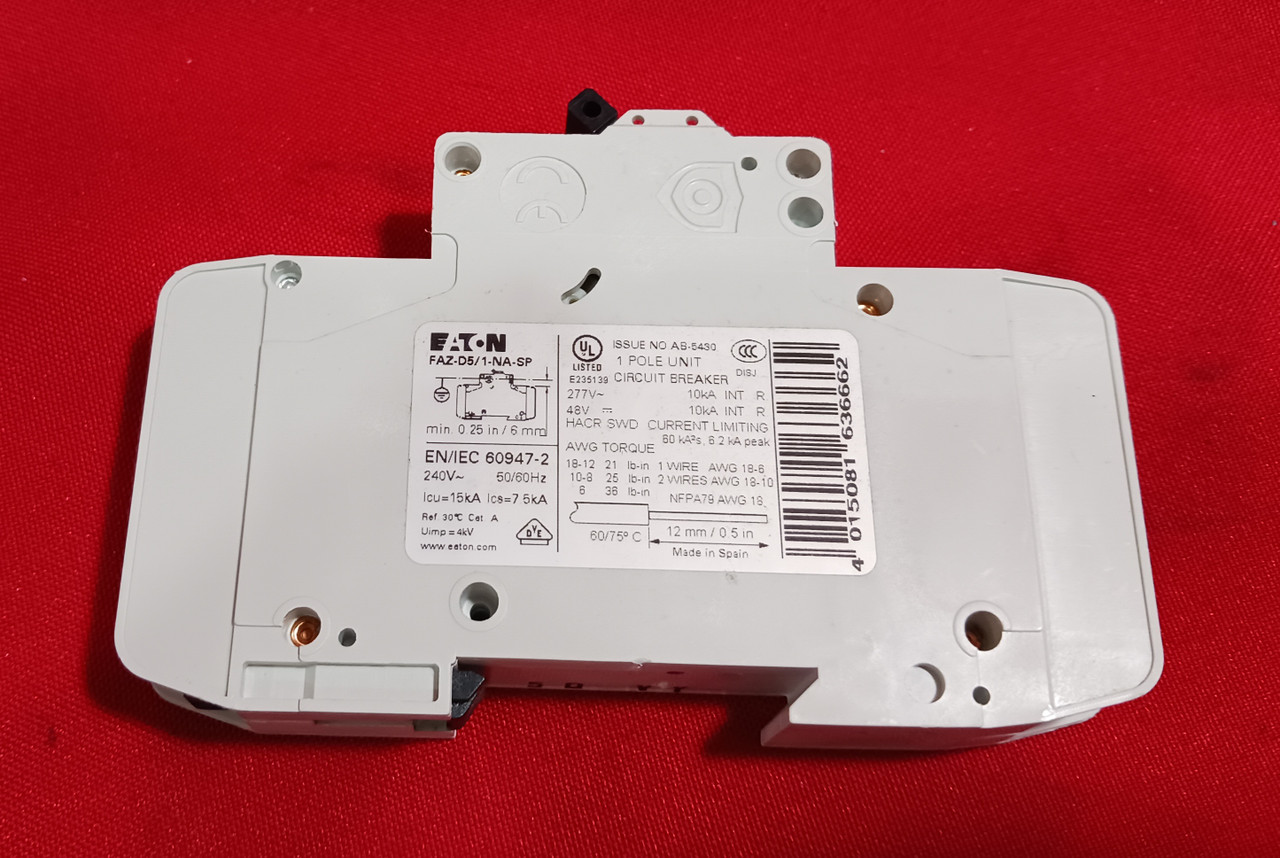

Eaton FAZ-D5/1-NA-SP Circuit Breaker
- Basic function: Miniature circuit-breakers
- Number of poles: 1 pole
- Tripping characteristic: D
- Rated current:5 A
- Rated switching capacity acc. to IEC/EN 60947-2 [Icu]: 15 kA
- Product Range: FAZ-NA
- Standards: UL 489, CSA C22.2 No. 5, IEC 60947-2
- Rated operational voltage [Ue] [Ue]: 277 Y V AC
- Rated operational voltage [Ue]: 60 V DC
- Rated voltage according to IEC/EN 60947-2 [Un]: 240/415 V AC
- Rated voltage according to UL [Un]: 277 V AC
- Rated switching capacity acc. to IEC/EN 60947-2 [Icu]: 15 kA
- Characteristic: B, C, D
- Selectivity Class: 3
- Lifespan [Operations]: > 20000
- Standard front dimension: 45 mm
- Enclosure height: 105 mm
- Mounting width per pole: 17.7 mm
- Mounting: IEC/EN 60715 top-hat rail
- Degree of Protection: IP20, IP40 (when fitted)
- Terminals top and bottom: Twin-purpose terminals
