Product Description

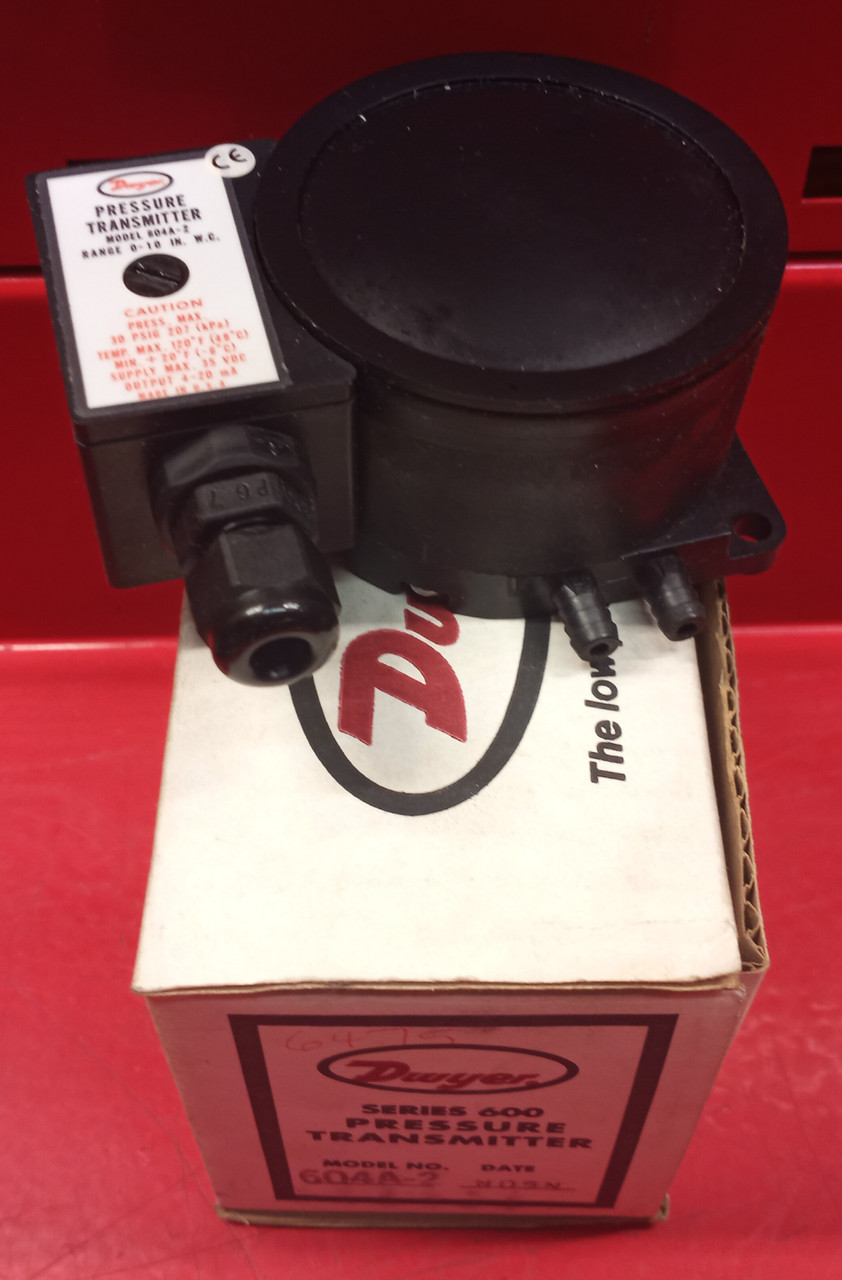

Dwyer 604A-2 Pressure Transmitter
- Service: Air and non-combustible, compatible gases.
- Accuracy: ±2% of full span output (Includes linearity, hysteresis and repeatability).
- Stability: ±1% F.S./yr.
- Temperature Limits: 0 to 140°F (-17.8 to 60°C).
- Compensated Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
- Pressure Limits: 2 psig for models 604A-0, 604A-1; 11 psig
- for models 604A-2, 604A-3.
- Thermal Effect: ±0.025% F.S./°F (0.045% F.S./°C).
- Power Requirements: 10-35 VDC (2-wire*).
- Output Signal: 4 to 20 mA.
- Zero and Span Adjustments: Internally accessible Potentiometers.
- Loop Resistance: DC; 0-1250 ohms maximum.
- Current Consumption: DC; 38 mA maximum.
- Electrical Connections: Terminal block.
- Process Connections: Barbed, for 3/16˝ (4.76 mm) I.D. tubing.
