Product Description

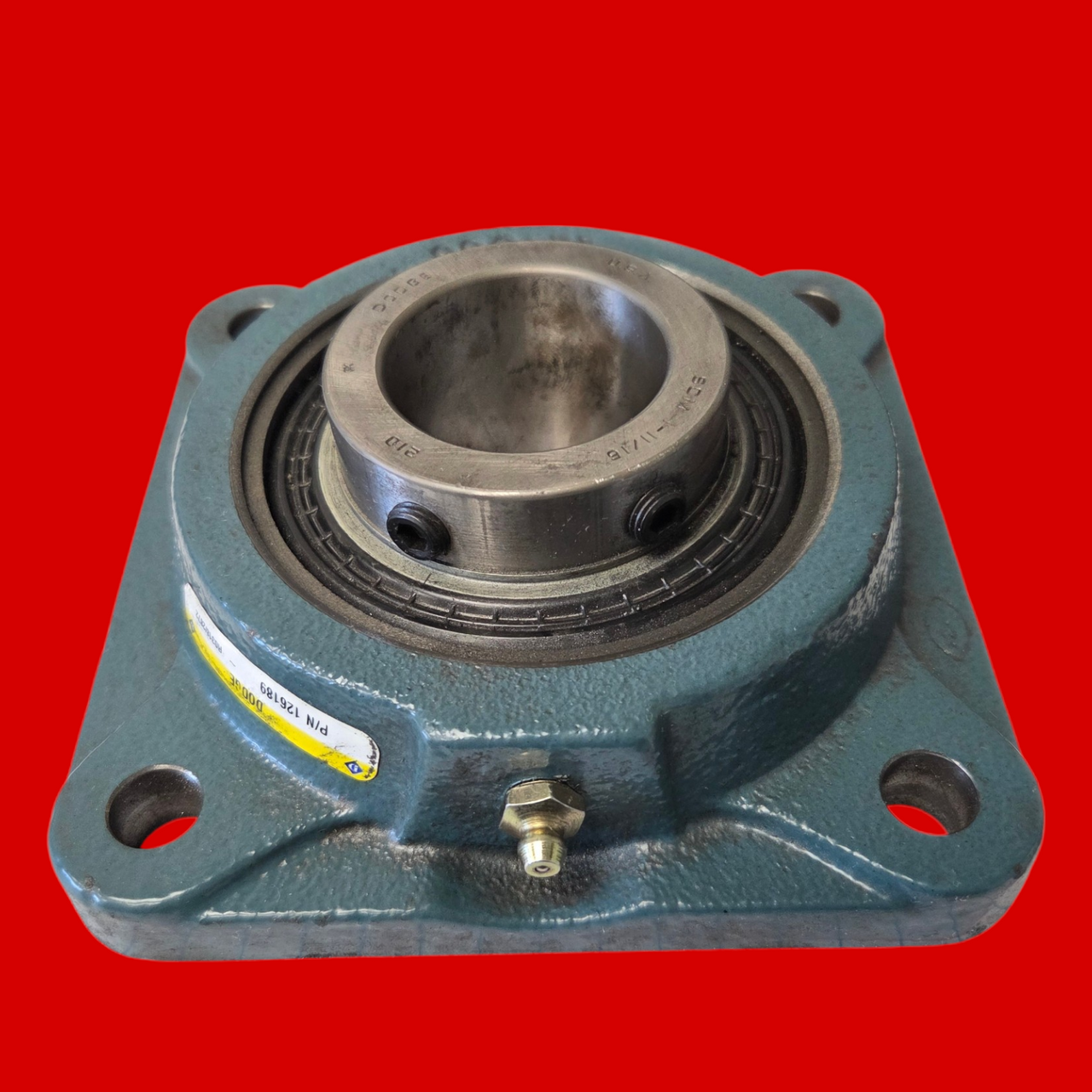

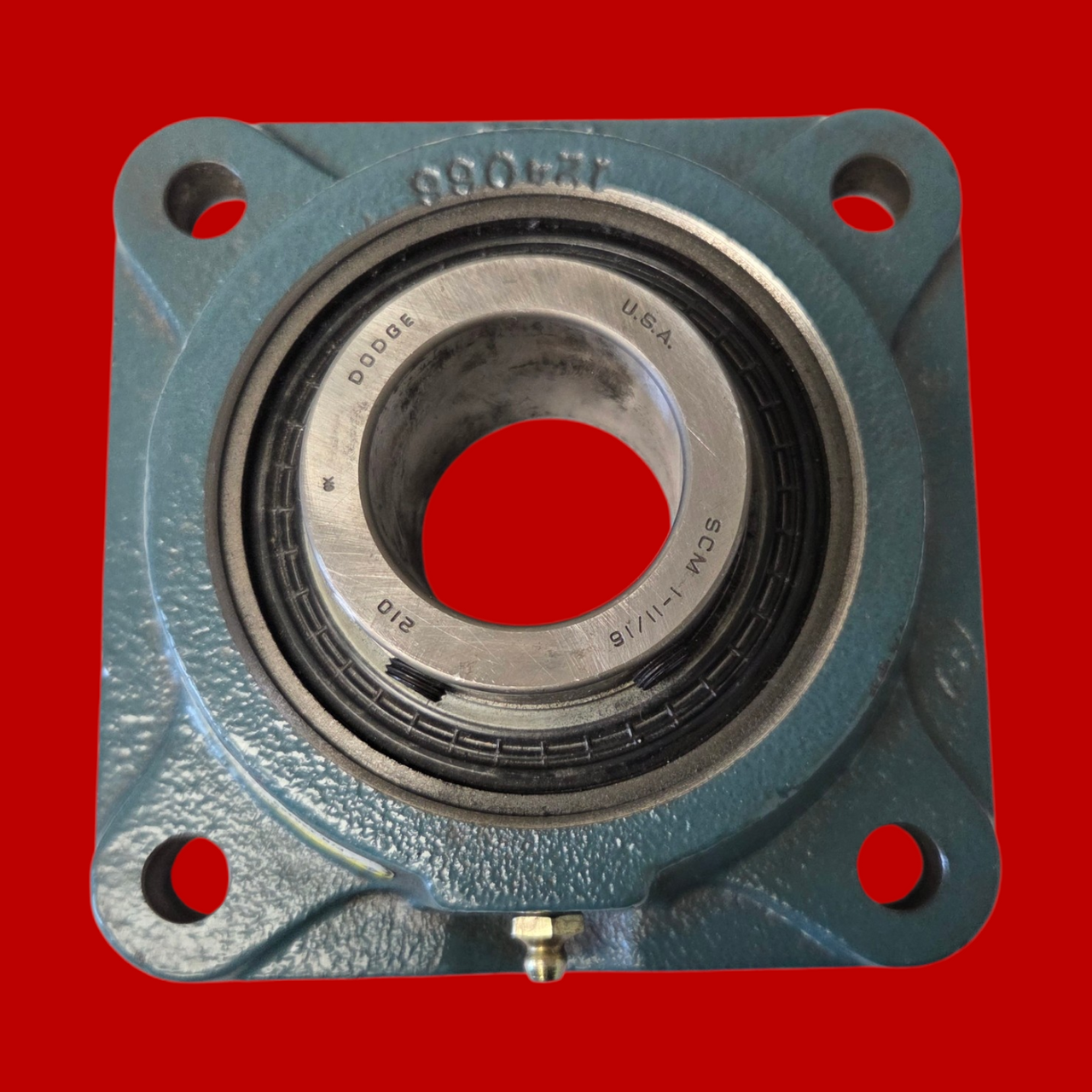

Dodge 126189 F4B-SCM-111 4-Bolt Flange
Dodge 126189 F4B-SCM-111 BORE DIAMETER: 1-11/16 INCH HOUSING: 4-BOLT FLANGE LOCKING: SET SCREW
- Medium-Duty 4-Bolt Flange
- 1 11/16" Shaft Size
- Setscrew Locking Inner Ring
- 4 3/8" Bolt Hole Spacing
- Non-Expansion
APPLICATIONS
- Air handling
- Unit handling
- Food and beverage
- Forest products
- Paper
- Automotive
- Chemical
- Packaging and processing
FEATURES
- Inner and outer rings are precision hardened and honed for wear resistance and quiet operation
- DualGuard sealing system includes a mechanically retained, land riding, single lip contact seal plus a patented rubberized flinger for enhanced protection against contaminants
- Ball cage is made of heat stabilized nylon with fiberglass reinforcement, which allows higher operating temperatures and greater flexibility with added strength
- Anti-rotation pin makes insert replacement easier with no need to replace grease fittings or location pins
- 65° setscrew spacing offers an optimum balance between locking force and inner ring stress
- Grade 10 balls for quieter operation and less vibration
