Product Description

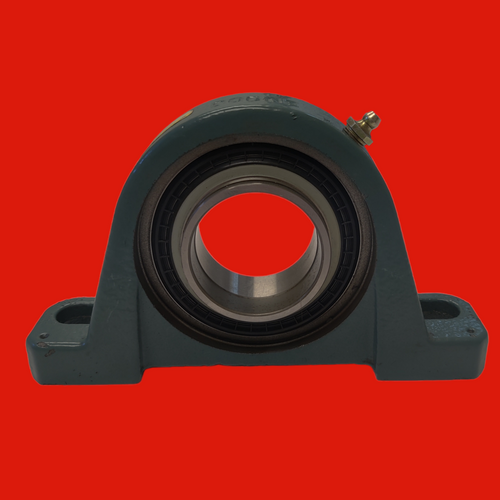

Dodge 053670 P2B-SC-012-HT Pillow Block Bearing
- Base Width: 1.34 in
- Bore Type: Round
- Expansion Type: Non-Expansion (Fixed)
- Finish: Powder Coated
- Load Capacity: 2899 lb Dynamic/1482 lb Static
- Locking Device: Set Screw
- Material: Steel
- Maximum Speed: 7500 rpm
- Mounting Type: Two-Bolt Base
- Overall Width: 1.23 in
- Seal Type: Shield
- Series: 204
- Temperature Rating: 400 deg F
- Type: Normal Duty
- Bore Diameter: 3/4 in
- Bolt Center-to-Center Length: 3.38 to 4.19 in
- Base to Bore Centerline: 1.31 in
- Overall Length: 5-1/4 in
- Overall Height: 2.56 in
