Product Description

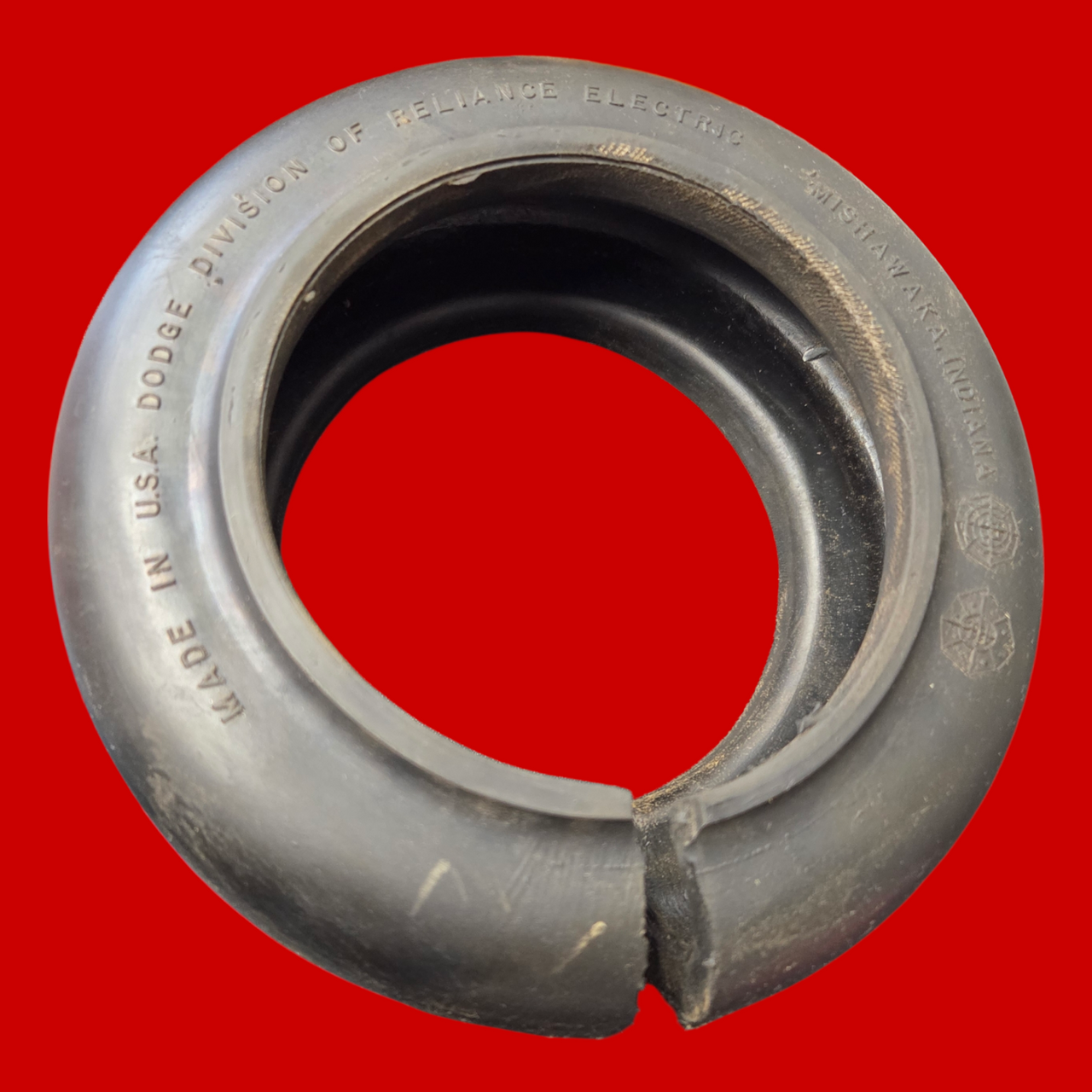

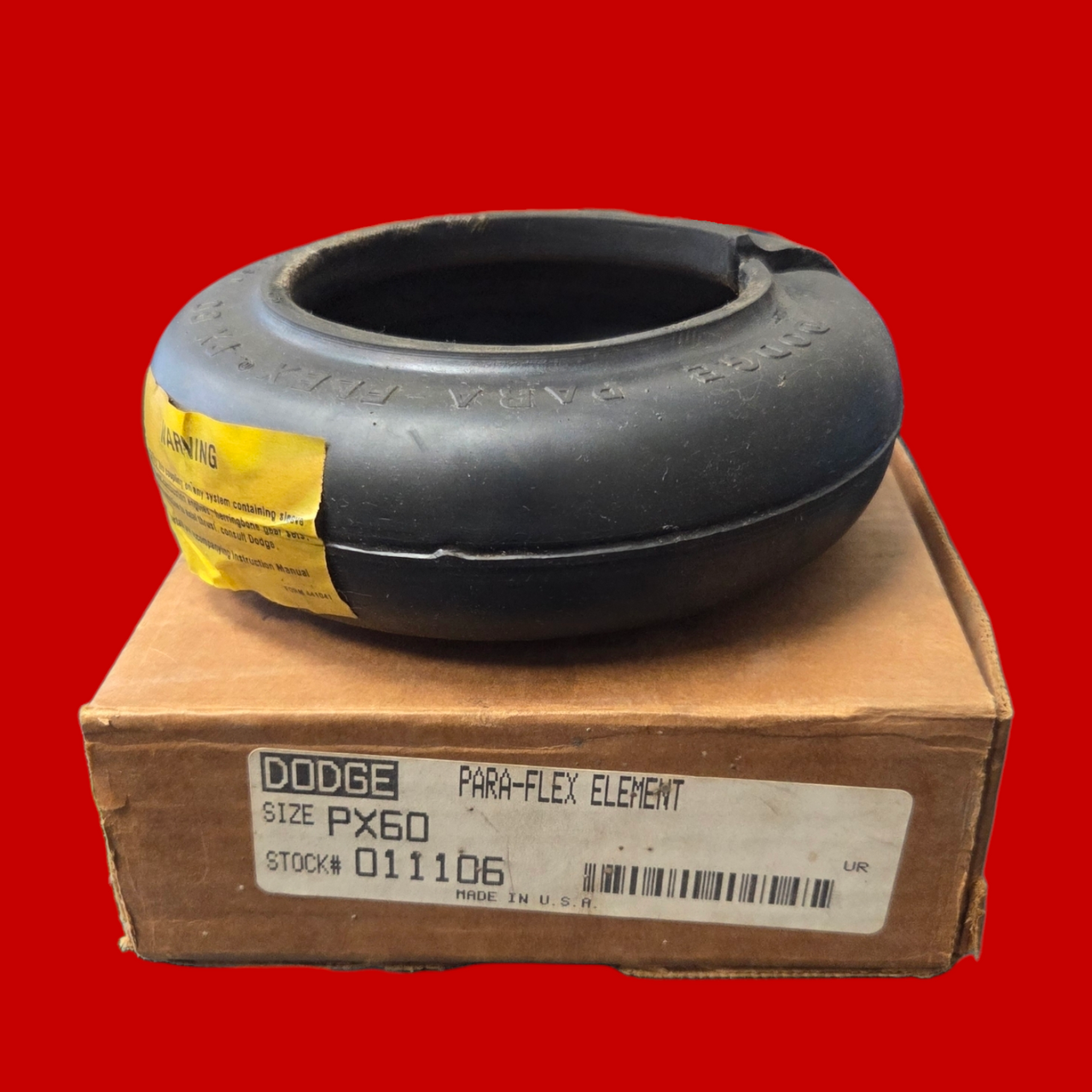

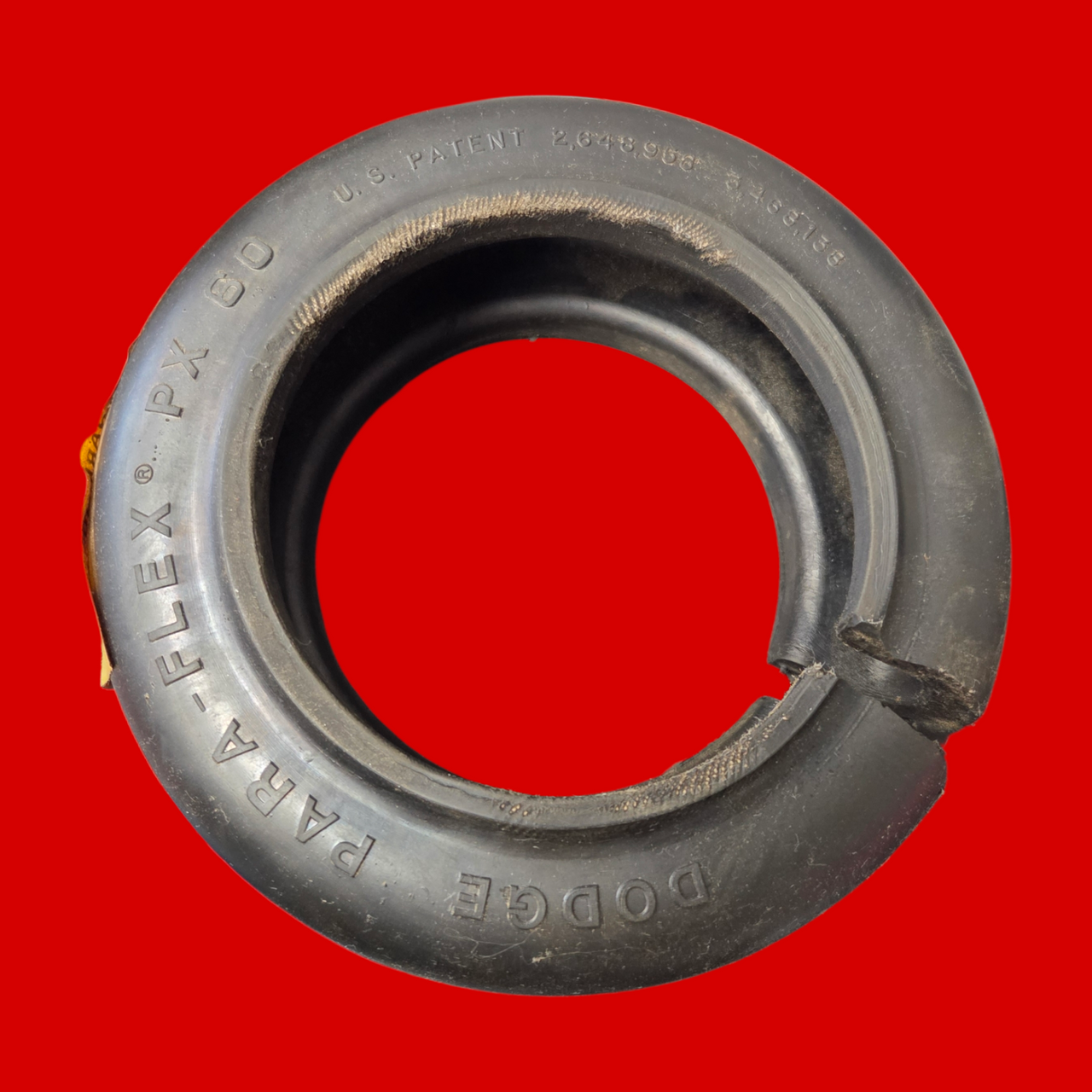

Dodge 011106 Tire - Para-Flex PX Series, 60 Coupling Size, Rubber Element Material
- Para-Flex couplings employ a molded, non-lubricated elastomeric flexing member loaded in shear
- Taper-Lock flange design offers reversible flanges for H- or F-style mounting on size PX50-120
- Torque transmitted through composite element system
- Reinforced with torque-carrying tension cords
- Natural rubber split element for easy installation
- Split end reinforcement
- Dampens torsional vibration
- Takes 4° angular misalignment
- Takes 1/8" parallel misalignment
- Takes end-float of 1/4" to 5/16"
| Outside Diameter | 6-1/2 in |
|---|---|
| Series | Para-Flex PX |
| Coupling Size Code | 60 |
| Element Type | Tire |
| Element Material | Rubber |
| Maximum Angular Misalignment | 4 ° |
| Maximum Parallel Misalignment | 1/8 in |
| Maximum Axial Misalignment | 0.156 in |
