Product Description

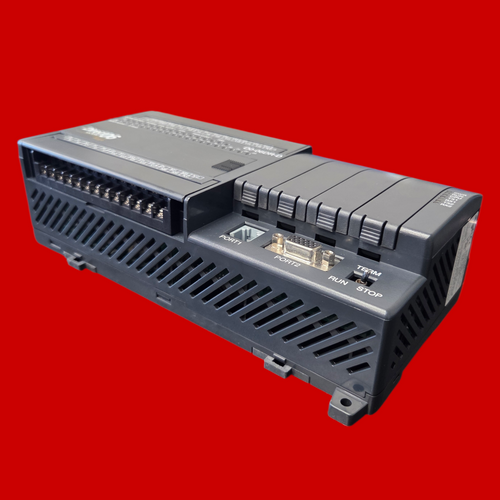

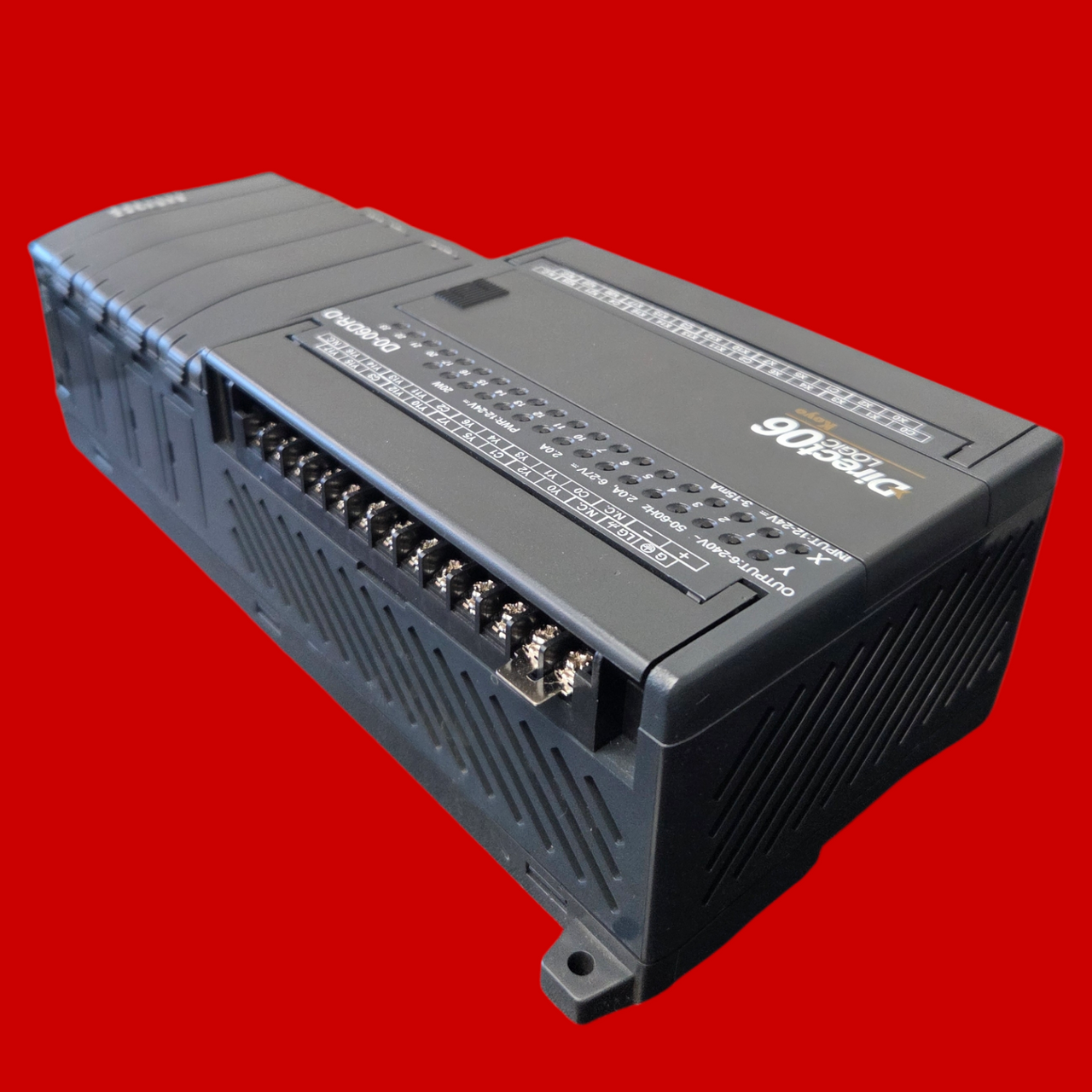

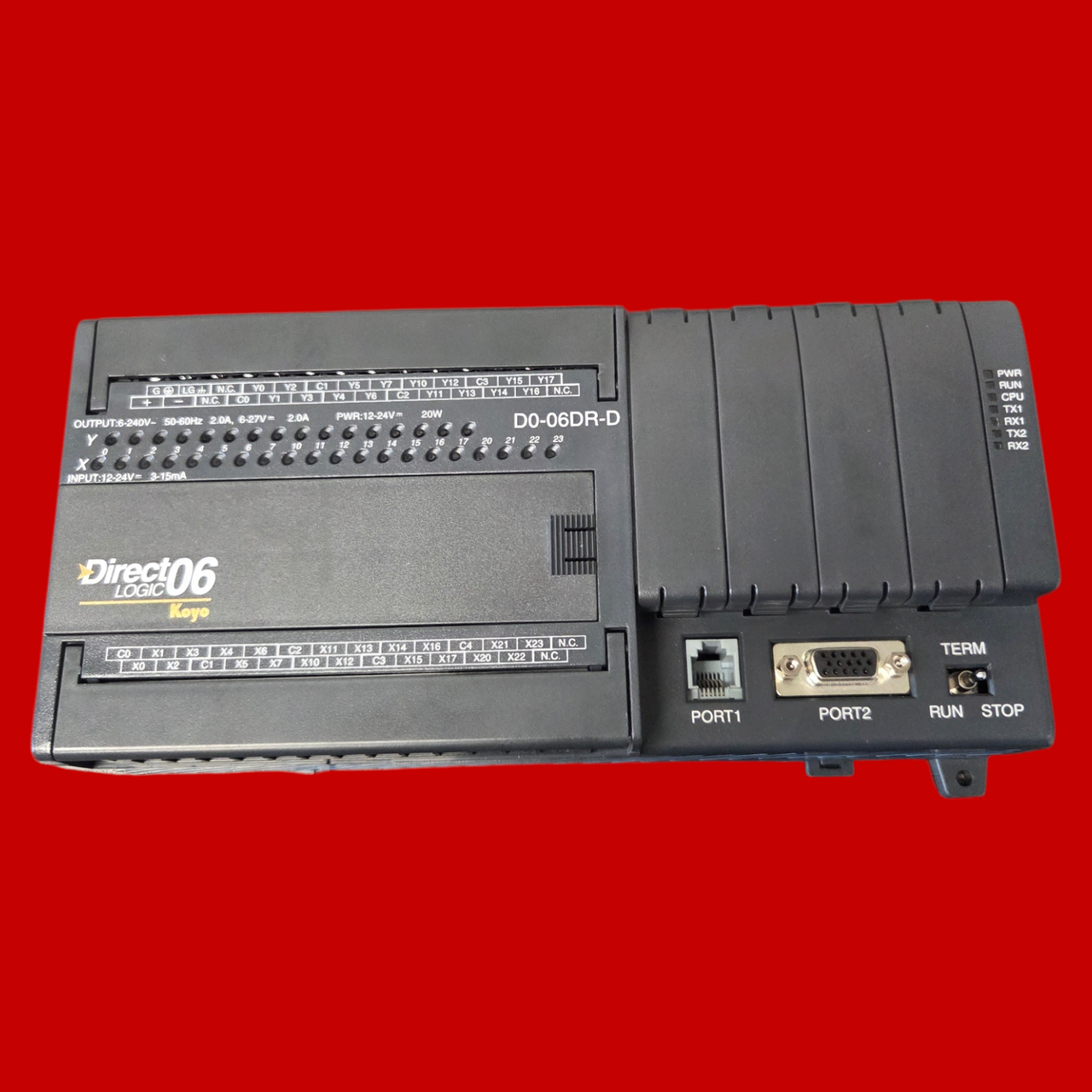

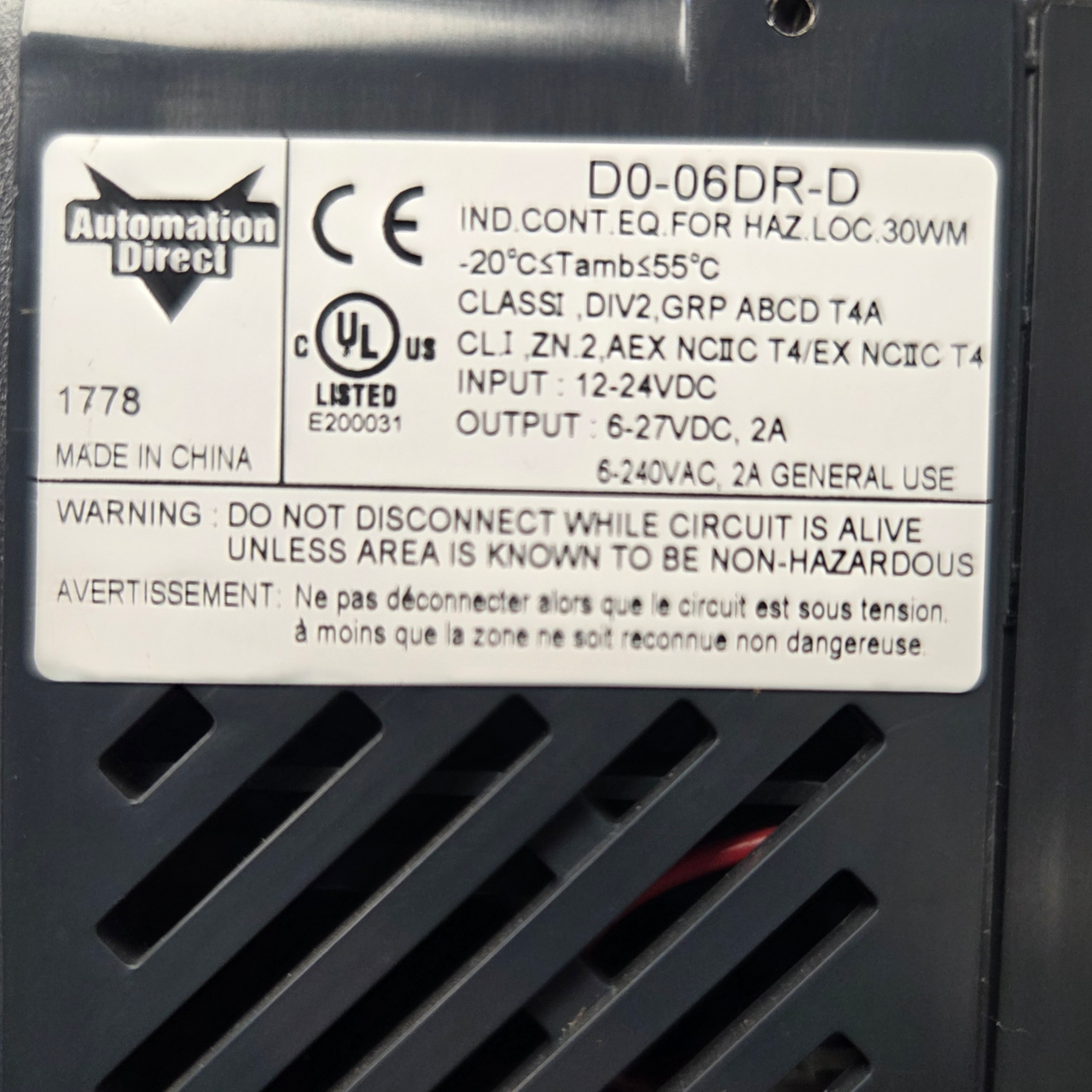

Direct Logic D0-06DR-D PLC
PN: D0-06DR-D
- Brand: DirectLOGIC
- Item: PLC
- Series: DL06
- Total Memory: 14.8k words
- Ladder Memory: 7k words
- User Data Memory: 7k words
- Programming Language: Ladder
- Programming Software: DirectSOFT programming software v4.0 or later
- Communication Port and Connection Type(s): (1) RS-232 (RJ12), (1) RS-232/RS-422/RS-485 (DB15HD female)
- Port Protocol(s): DirectNET, Modbus RTU, ASCII, K-sequence, programming and monitoring
- Port Speed(s): fixed at 9.6k baud, up to 38.4k baud
- Real Time Clock/Calendar: Yes
- Retentive Memory: Yes
- Battery Backup: Yes
- Maximum Expansion Modules Allowed: 4
- External Power Requirement: 12-24 VDC
- Number of Discrete Input Points: 20
- Nominal Input Voltage: 12-24 VDC
- Voltage Type: DC
- Discrete Input Type: Sinking/sourcing
- Number of Isolated Discrete Input Commons: 5
- Number of Points per Discrete Input Common: 4
- Frequency Response: 7 kHz
- Number of Discrete Output Points: 16
- Nominal Output Voltage: 6-24 VDC/6-240 VAC
- Discrete Output Type: Relay
- Relay Configuration: (16) Form A (SPST) relays
- Load Current: 2A/point
- Number of Isolated Discrete Output Commons: 4
- Number of Points per Discrete Output Common: 4
- Maximum Number of PID Loops: 8
- Number of High-Speed Capable Input Points: 4
