Product Description

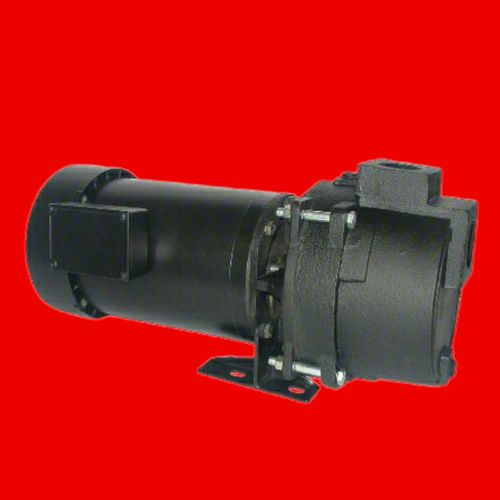

Dayton 5RWG8 Sprinkler Pump: Self-Priming, 208-230/460V AC, 1 1/2 hp, 50 psi Shut Off, TEFC
PN: 5RWG8
Self-priming sprinkler pumps with a motor between 1-1/2 and 3 HP achieve higher head and flow rates than pumps with lower HP.
- Priming: Self-Priming
- Pump Housing Material: Cast Iron
- Phase: Three
- Horsepower: 1-1/2 hp
- Nameplate Voltage: 208-230/460V AC
- Maximum Suction Lift: 25 ft
- Flow Rate @ 10 psi: 57 gpm
- Flow Rate @ 20 psi: 46 gpm
- Flow Rate @ 30 psi: 35 gpm
- Flow Rate @ 40 psi: 15 gpm
- Flow Rate @ 50 psi: 0 gpm
- Shut Off Pressure: 50 psi
- Feet of Head (Maximum): 104 ft
- Intake and Discharge Size: 1-1/2 in , 1-1/2 in
- Compatible Intake Pipe Size: 1-1/2 in
- Compatible Discharge Pipe Size: 1-1/2 in
- Connection Type: NPT
- Motor Enclosure: Totally Enclosed Fan Cooled
- Case Pressure (Maximum): 150 psi
- Motor Type: 3-Phase
- Flow Rate @ 15 psi: 52 gpm
- Overall Height: 9.25 in
- Seal Material: Buna-N; Carbon; Ceramic; Stainless Steel
- Wetted Material: Buna-N; Carbon; Cast Iron; Ceramic; Stainless Steel
- Standards: CSA
- Discharge Rotation: 90° Increments
- Thermal Overload Protection: Yes
- Motor Ambient Temperature (Maximum): 104 °F
- Flow Rate (Minimum): 57 gpm
- Compatible with Media Type: Non-Flammable Liquids
- For Use With Potable Systems: No
- Specific Gravity (Maximum): 1
- RPM (Maximum): 3,450 RPM
- Overall Length: 19.25 in
- Overall Width: 9.25 in
- Best Efficiency Flow: 35 gpm
- Best Efficiency Head: 69 ft of head
- Discharge Type: NPT
- Duty Cycle: Continuous
- Frequency: 60 Hz
- Impeller Material: Stainless Steel
