Product Description

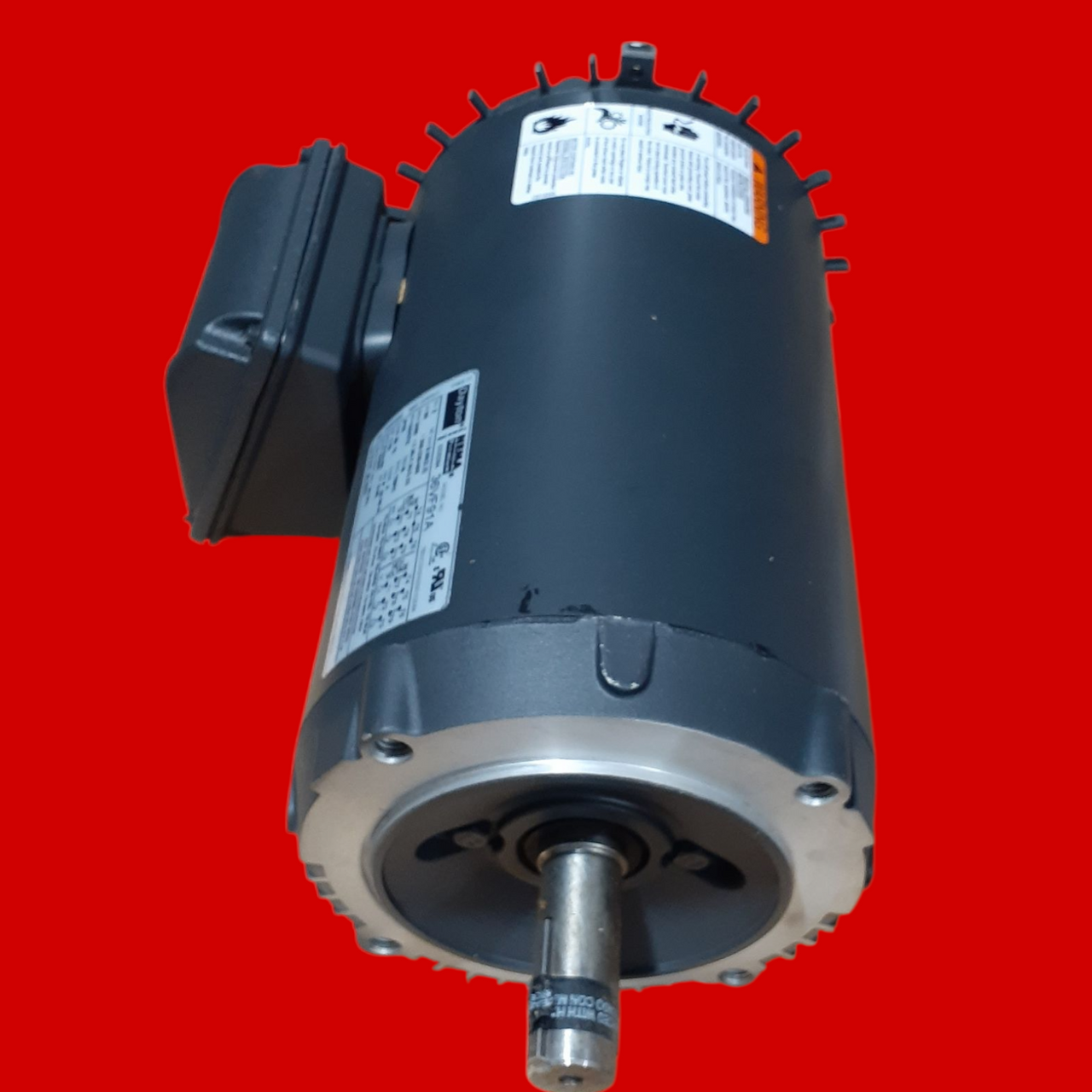

Dayton 36VF91 General Purpose Motor: Totally Enclosed Fan Cooled, C-Face/Rigid Base Mount, 3 HP, Missing Fan Cover
PN: 36VF91
- Motor Application: General Purpose
- Phase: Three
- Motor Design: Three-Phase
- HP: 3
- Nameplate RPM: 3490
- No. of Speeds: 1
- Voltage: 230/460V AC
- Full Load Amps: 7.1/3.5 A
- Frame: 143/5TC
- Hz: 60 Hz
- Motor Service Factor: 1.15
- Max. Ambient Temp.: 40 °C
- Motor Thermal Protection: None
- Duty Cycle: Continuous
- Ins. Class: F
- Motor Enclosure Design: Totally Enclosed Fan Cooled
- Motor Shaft Rotation: CW/CCW
- Motor Mounting Type: C-Face; Rigid Base
- Motor Mounting Position: Horizontal
- Inverter Rated: Yes
- Motor Shaft Design: Keyed
- Motor Frame Material: Steel
- Shaft Dia.: 7/8 in
- Shaft Length: 2-1/4 in
- Motor Bearings: Ball
- Length Less Shaft: 12-15/16 in
- Overall Length: 15-3/16 in
- Includes: Conduit Box
- Nominal Efficiency: 86.5 %
- CC Number: CC029A
- Standards: CSA; UL
- RPM Range: 3,001-3,600
Fan cover missing.
