Product Description

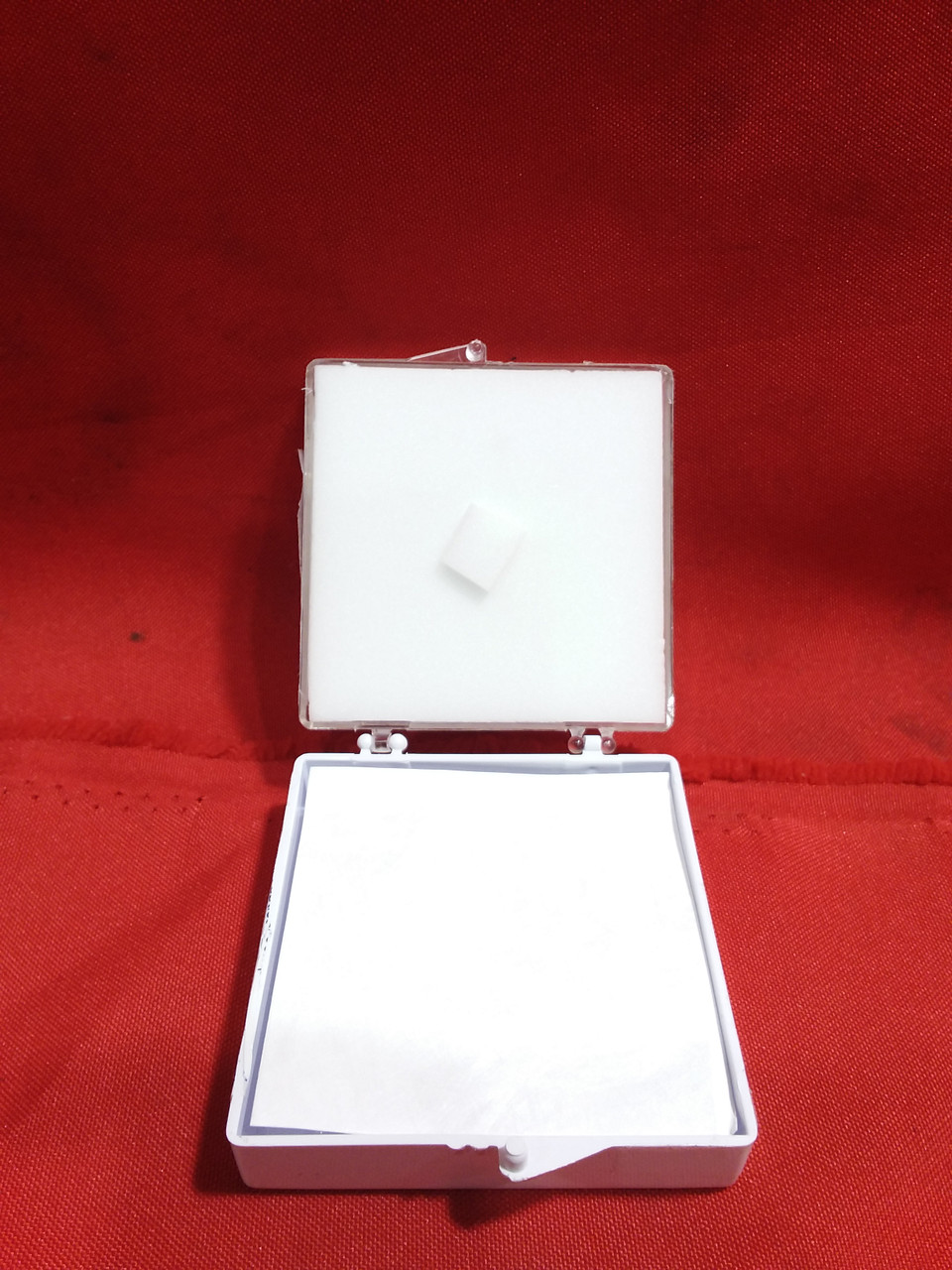

CVI Laser Grade Fused Silica Plano-Concave Lens- PLCC-10. 0-10. 3-UV
PN: PLCC-10. 0-10. 3-UV
- Optical Material: Standard Grade Corning 7980 1-D (Fused Silica)
- Diameter Tolerance: +0/–0.25mm
- Center Thickness Tolerance: (tc): ±0.25mm
- Chamfer: 0.35mm leg width at 45° nominal
- Concentricity: ≤ 0.05mm
- Radius of Curvature (RoC) Tolerance: ±0.5%
- Surface Figure: < λ/10 p-v at 633nm before coating
- Surface Quality: 10-5 scratch-dig per MIL-PRF-13830b
- Clear Aperture (CA): ≥ 85% of central diameter
- Anti-reflection Coating: Wavelength user specified
- Narrowband: R ≤ 0.25% per surface
- Broadband: Ravg ≤ 0.5% per surface
- Dualband: R ≤ 0.3% at 1064, R ≤ 0.6% at 532 per surface
- ƒ (mm): -20.0
- Ø (mm): 10.0
- f/#: -2.4
- ƒb (mm): 21.4
- t c (mm): 2.0
- te (mm): 3.3
- r (mm): 10.3
- ƒ @ 266nm: -20.6
- ƒ @ 355nm: 21.6
- ƒ @ 532nm: -22.4
- ƒ @ 1064nm: -22.9
