Product Description
CJC Offline Filter System, Model: HDU 427/108 MZ-E2L1PTVY
PN: HDU 427/108 MZ-E2L1PTVY
CJC Offline Fine Filters 427/108 are fine filters (filtration degree 3 down to 1 micron), which simultaneously remove particles, water, oil ageing products and acid compounds from oil with high efficiency. Due to the combination of filtration type (depth filtration) and filter material (cellulose), CJC Offline Fine Filters 427/108 offer an extremely high dirt and water holding capacity.
Specifications
- Filter Insert Type: A 27/27
- Number of Filter Inserts: 16Pc(s)
- General Arrangement: 9502778
- P&I Diagram: 7001061
- Pump: MZ-9-6, 455 l/h
- Motor: 71 6 B14L VEM (60Hz, 3x440V-500V)
- Pressure Switch: Layher, High Pressure Cutout: 2.3 bar

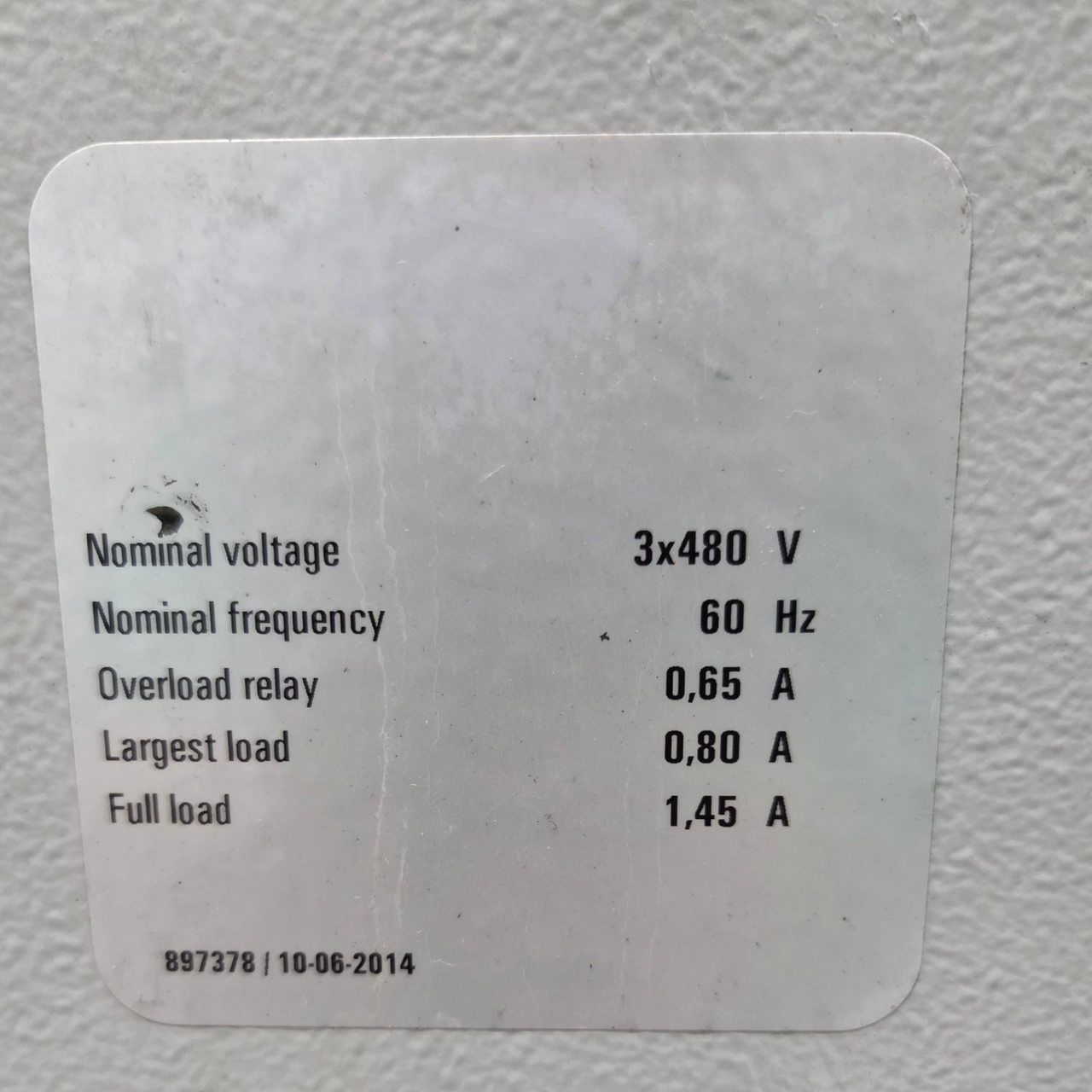

- Control Box: Nominal Voltage: 3x480V, Nominal Frequency: 60Hz, Freq. Inverter: 1.12A
- Additional Equipment: Leak Detection-Sealings and o-rings of viton-CJC Aut. Air vent-Filter plate and spring guide of alu.-Pressure transmitter
- Paint: CJC Standard RAL 5021
- Noise Level: <80 dB(A)
- Design Pressure: 7 bar / 101.5 psig
- Design Temperature: 150°C/302 °F
- Max ambient temperature: 40°C / 104 °F
Instruction Manual Included.
