Product Description

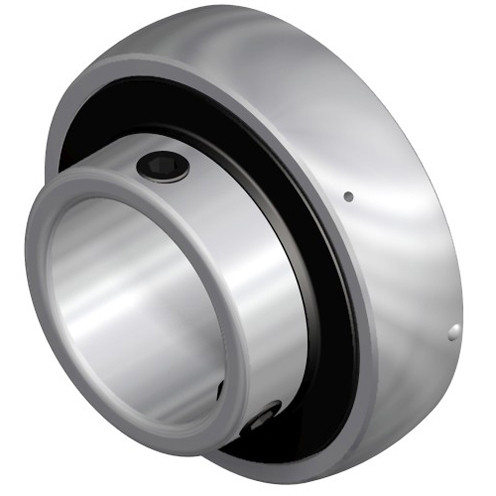

Browning VS-220 767455 Ball Insert Bearings
Round Bore, 1.2500 in ID, Standard Duty, 2.8350 in OD, 1.6880 in Width, Setscrew Locking
- Browning bearing insert with lubrication hole and anti-rotation rivet Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews Single lip contact seal and flinger
| Bore Type | Round |
|---|---|
| Bore Diameter | 1.2500 in |
| Duty Type | Standard Duty |
| Outside Diameter | 2.8350 in |
| Outer Ring Width | 0.7480 in |
| Inner Ring Width | 1.6880 in |
| Locking Device | Setscrew |
| Overall Width | 1.6880 in |
| Operating Temperature Range | -20 to 200 F |
| Radial Dynamic Load Capacity | 5782 lbs |
| Fillet Radius | 0.0400 in |
| Radial Static Load Capacity | 3493 lbs |
| Bearing Material | 52100 Bearing Steel, Black Oxided Inner |
| Snap Ring Included | Without Snap Ring |
| Cage Material | Plastic |
| Finish/Coating | Black Oxide Coated Inner Ring |
| Maximum RPM | 4000 rpm |
| Seal Type | Single Lip Contact Seal |
| Retainer Type | Ball Riding Retainer |
| Retainer Material | Molded fiber glass reinforced nylon |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Set Screw Thread Size | 5/16-24 |
| Series | VS 200 |
| Precision Rating | ABEC 1 |
| Misalignment Angle | ±1.5 ° |
| Housing Type | Insert Only |
| Lubricant | Lithium Complex NLGI 2 Grease |
