Product Description

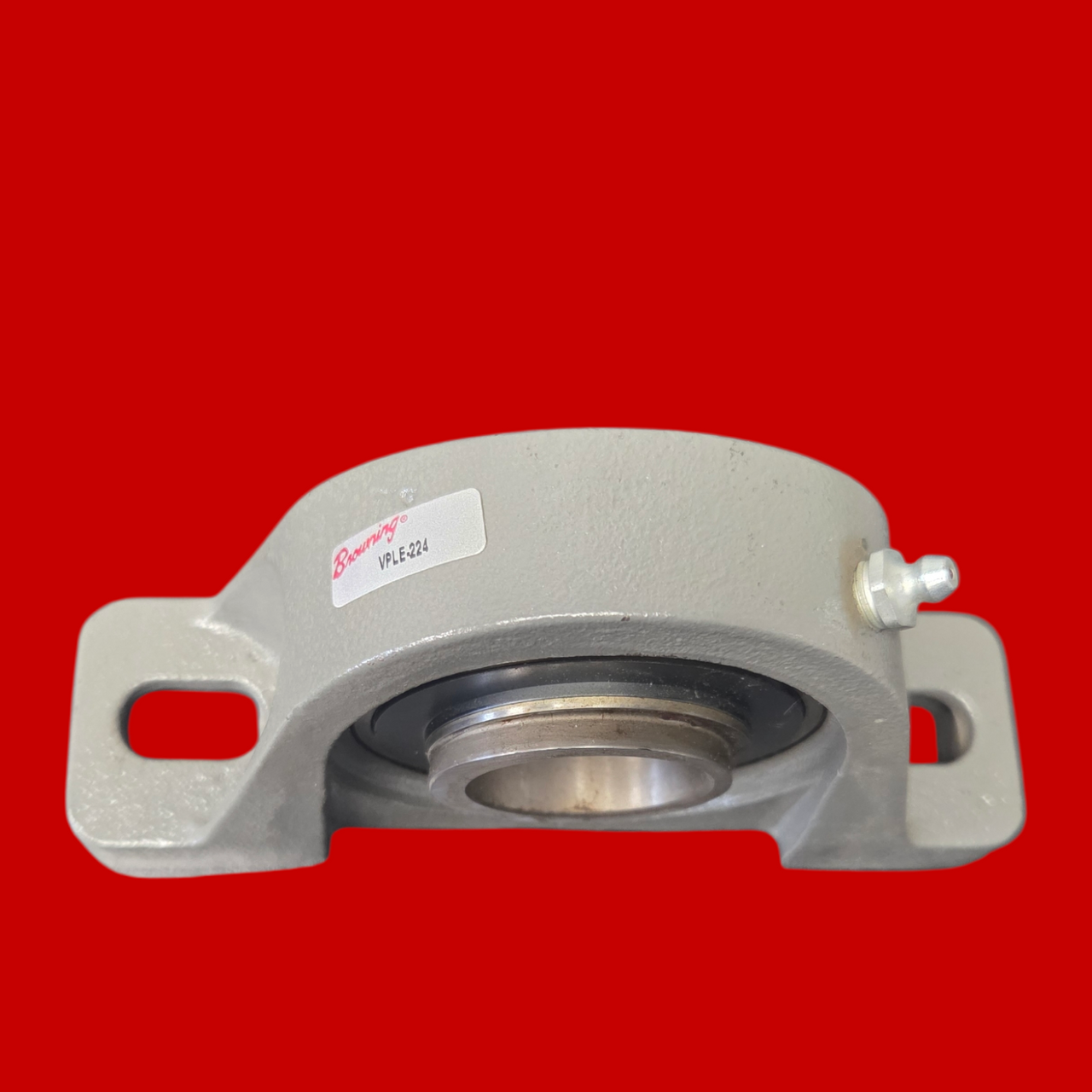

Browning VPLE-224 Pillow Block Ball Bearing Unit - 2-Bolt Base, 1-1/2 in Bore, Cast Iron Material, Standard Duty, Non-Expansion Bearing (Fixed), No Locking Collar
PN: VPLE-224
- Mounting Type: 2-Bolt Base
- Bore Type: Round / Straight
- Bore Diameter: 1-1/2 in
- Bolt Center To Center Length: 4.8750 to 5.8750 in
- Base To Bore Centerline: 1.9380 in
- Duty Type: Standard Duty
- Locking Device: Eccentric Collar-MISSING
- Seal Type: Single Lip Contact with Flinger
- Housing Material: Cast Iron
- Expansion Type: Non-Expansion Bearing (Fixed)
- Overall Height: 3.9380 in
- Overall Length: 7.1250 in
- Base Width: 1.9380 in
- Finish Coating: Gray
- Insert Material: 52100 Bearing Steel, Black Oxided Inner
- Bolt Size: 0.5000 in
- Max Operating Temperature: 200 °F
- Radial Dynamic Load Capacity: 7340 lbf
- Radial Static Load Capacity: 4467 lbf
- Max Rpm: 3500 rpm
- Lubrication Type: Lithium Complex NLGI 2 Grease
- Series: Normal
- Replacement Bearing: VE-224
- Application: Browning - Standard
- Misalignment Angle: ±1.5° Misalignment - Static Only
- Locking Type: Eccentric Collar-MISSING
- Number Of Mounting Holes: 2
- Product Type: Pillow Block Ball Bearing Units
