Product Description

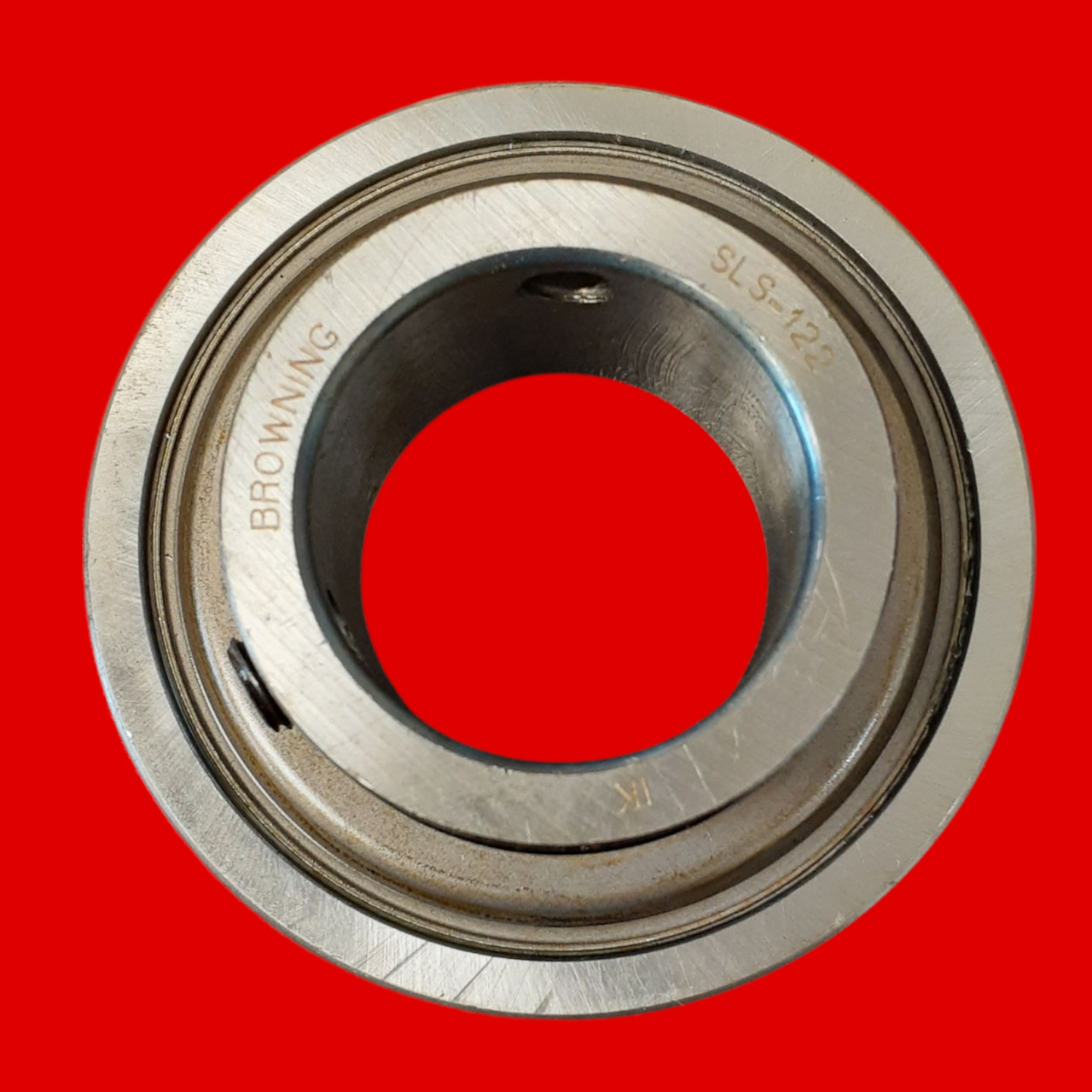

Browning SLS-122 Mounted Insert Only Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock
PN: SLS-122
Key Features
- Cylindrical O.D. narrow inner ring bearing insert with no lubrication
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
Dimensions
- Overall Width (in):1.281 in
- Bore Size (in):1.3750 in
- Inner Ring OD (in):1.859 in
- Outer Race Width (in):0.75 in
- Inner Race Length (in):1.281 in
- Outer Race OD (in):2.835 in
- Centerline to Front Face (in):0.859 in
Specifications
- Housing Type: Insert Only
- Measure Units: Inch
- Radius: 0.08
- Set Screw Thread: 5/16-24
- Insert Material: 52100 Bearing Steel, Black Oxided
- Bore Shape: Straight
- Rolling Element: Ball Bearing
- Speed (Max) (RPM):2500 rpm
- Internal Clearance: Standard
- Radial Dynamic Load Capacity (lb): 5,782 lb
- Misalignment: None
- Outer Ring Land Profile: Standard
- Misalignment Type: Static Only
- Bearing Insert Coating: Black Oxide Coated
- Retainer Material: Molded fiber glass reinforced nylon
- End Cap: No
- Radial Static Load Capacity (lb): 3,493 lb
- Precision Rating: ABEC 1
- Outer Race Profile: Cylindrical
- Inner Race Profile: Narrow Inner Ring
- Maximum Operating Temperature (F): 200 °F
- Fixed vs. Expansion: No
- Type of Seal: Single Lip Contact Seal
- Locking Type: Set Screw
- Lubrication Type: Lithium Complex NLGI 2 Grease
- Inner Race Heat Treat Method: Zone-Hardened
- Retainer Type: Ball Riding Retainer
- Ability to Relubricate: No
- Duty/Series: Light
