Product Description

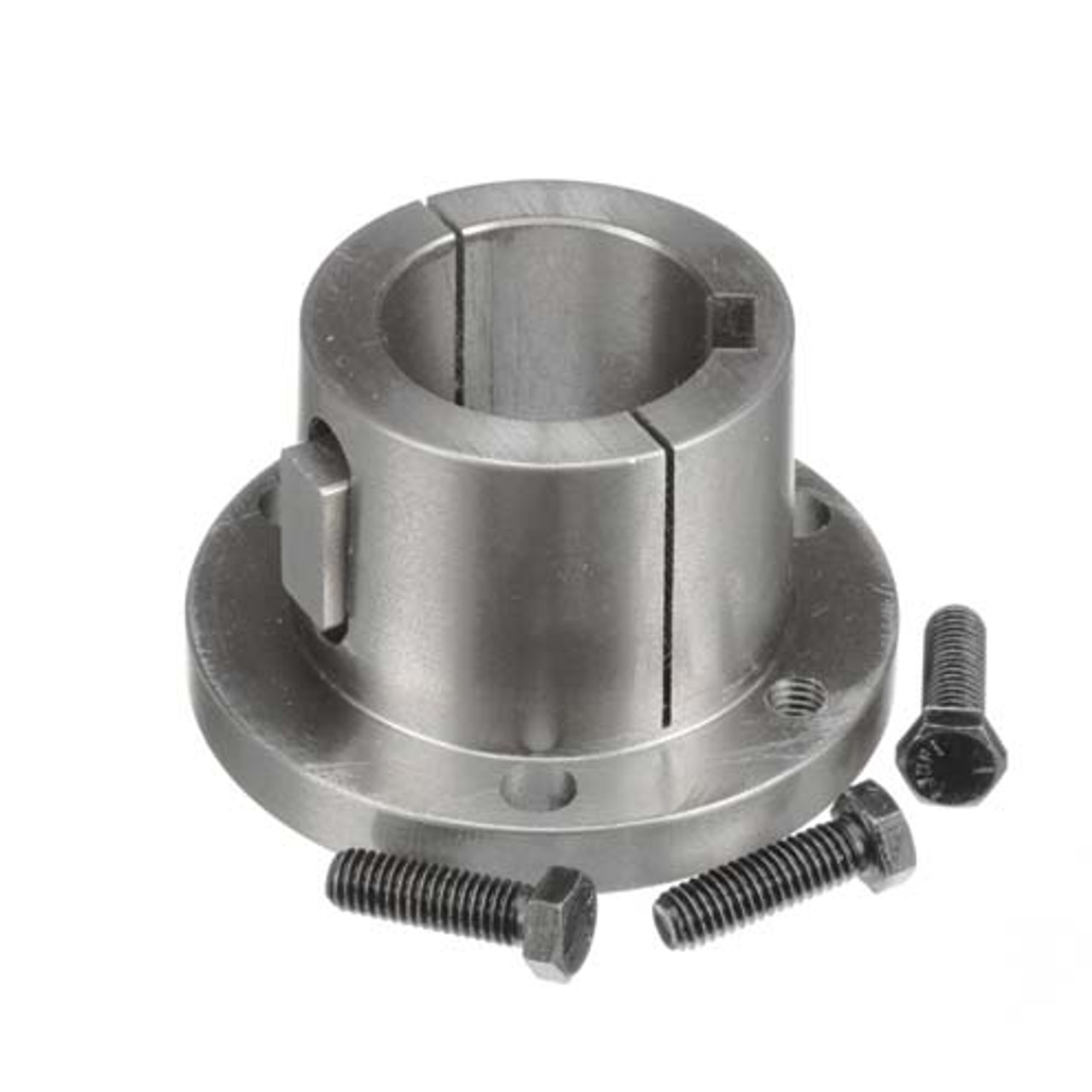

Browning Q1 1 1/8 Split Taper Bushing
Q1 Series, 1.1250 in Bore, 4-1/8 in Flg OD, 2-1/2 in LTB, Material: Sintered Steel
- Keyed to both shaft and hub. External key provides positive drive with no torque on the cap screws
- Highest torque carrying capacity
- Double split barrel improves true concentricity -grips the shaft with positive clamp fit
| Bore Diameter | 1.1250 in |
|---|---|
| Flange Outside Diameter | 4-1/8 in |
| Flange Thickness | 17/32 in |
| Length Through Bore | 2-1/2 in |
| Barrel Diameter (Large End) | 2-7/8 in |
| Bushing Size | Q1 |
| Bore Type | Finished w/ Keyway |
| Keyway Size | 1/4 x 1/8 in |
| Material | Sintered Steel |
| Flange Type | Solid Flange |
| Mounting Type | Conventional |
| Screw Torque | 348 in-lbs |
| Barrel Diameter (Small End) | 2.7657 in |
| Bolt Circle Diameter | 3-3/8 in |
| Number of Bolt Holes | 3 |
| Screw Thread Size | 3/8 in |
| Screw Length | 1-1/4 in |
| Weight | 4.25 lbs |
