Product Description

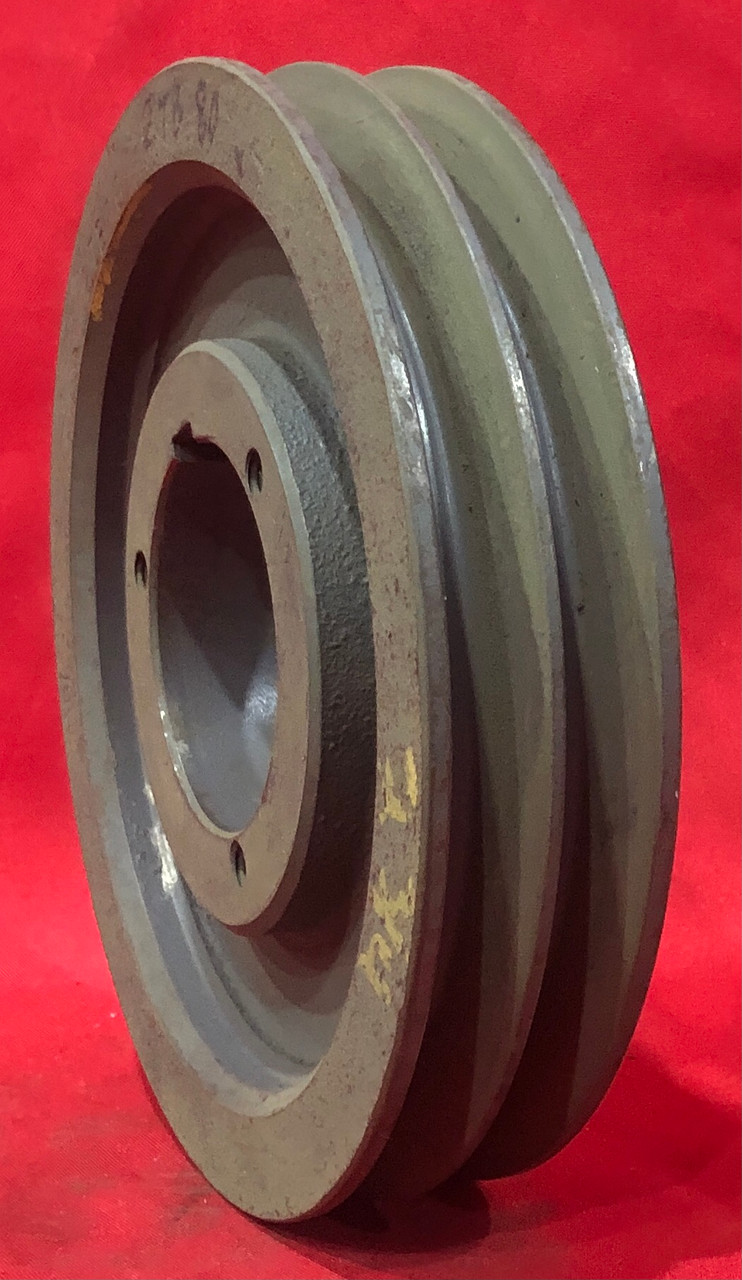

Browning2TB80 1002393 Bushing Bore V-Belt Pulley
Tech Specs
Number of Grooves 2
Outside Diameter 8.35 in
Length Through Bore 2.5000 in
Face Width 1.7500 in
Belt Section Size B, A
Bore Type Split Taper Bushed
Bushing Series Q1
Keyway Size 1/2 x 1/4 (1-13/16 to 2-1/4 Bore) in, 1/4 x 1/8 (15/16 to 1-1/4 Bore) in,
3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32
(1-5/16 to 1-3/8 Bore) in,
5/8 x 5/16 (2-5/16 to 2-11/16 Bore) in
Material Cast Iron
Bushing Bore Range 3/4 to 2-11/16 in
Pitch Diameter 7.6 (A) in, 8 (B) in
Overall Width 2-25/32 in
