Product Description

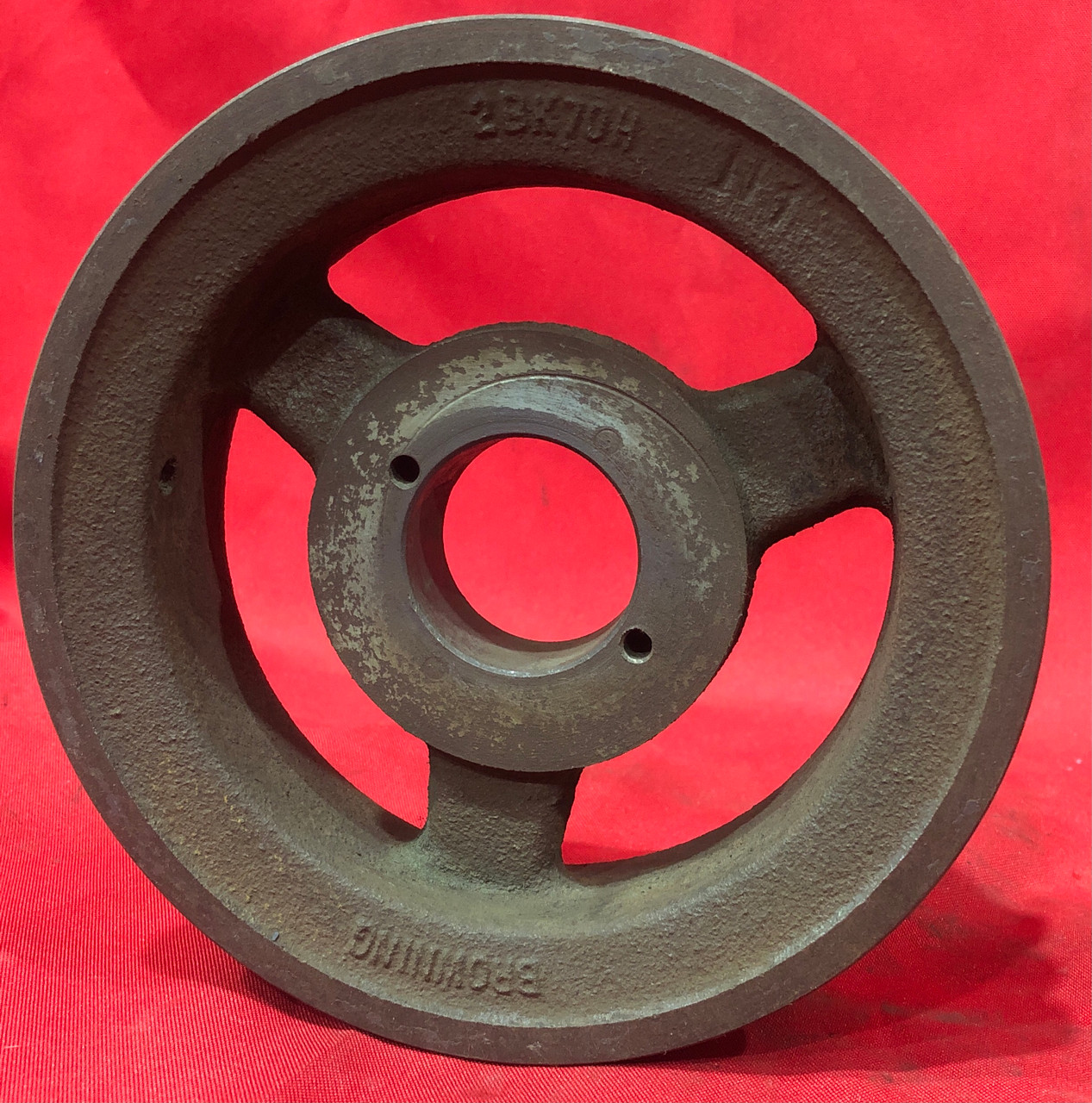

Browning 2BK70H V-Belt Pulley
Tech Specs:
Number of Grooves 2
Outside Diameter 6.75 in
Length Through Bore 1.2500 in
Face Width 1.7500 in
Belt Section Size B, 4L, 5L, A
Bore Type Split Taper Bushed
Bushing Series H
Keyway Size 1/4 x 1/16 (1-1/4 Bore) in, 1/4 x 1/8 (15/16 to 1-3/16 Bore) in, 1/8 x 1/16 (1/2 to 9/16 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 1/16 (1-3/8 to 1-1/2 Bore) in, 5/16 x 1/16 (1-5/16 to 1-3/8 Bore) in
Material Cast Iron
Bushing Bore Range 1/2 to 1-1/2 in
Pitch Diameter 6 (A/4L) in, 6.4 (B/5L) in
Overall Width 1-3/4 in
