Product Description

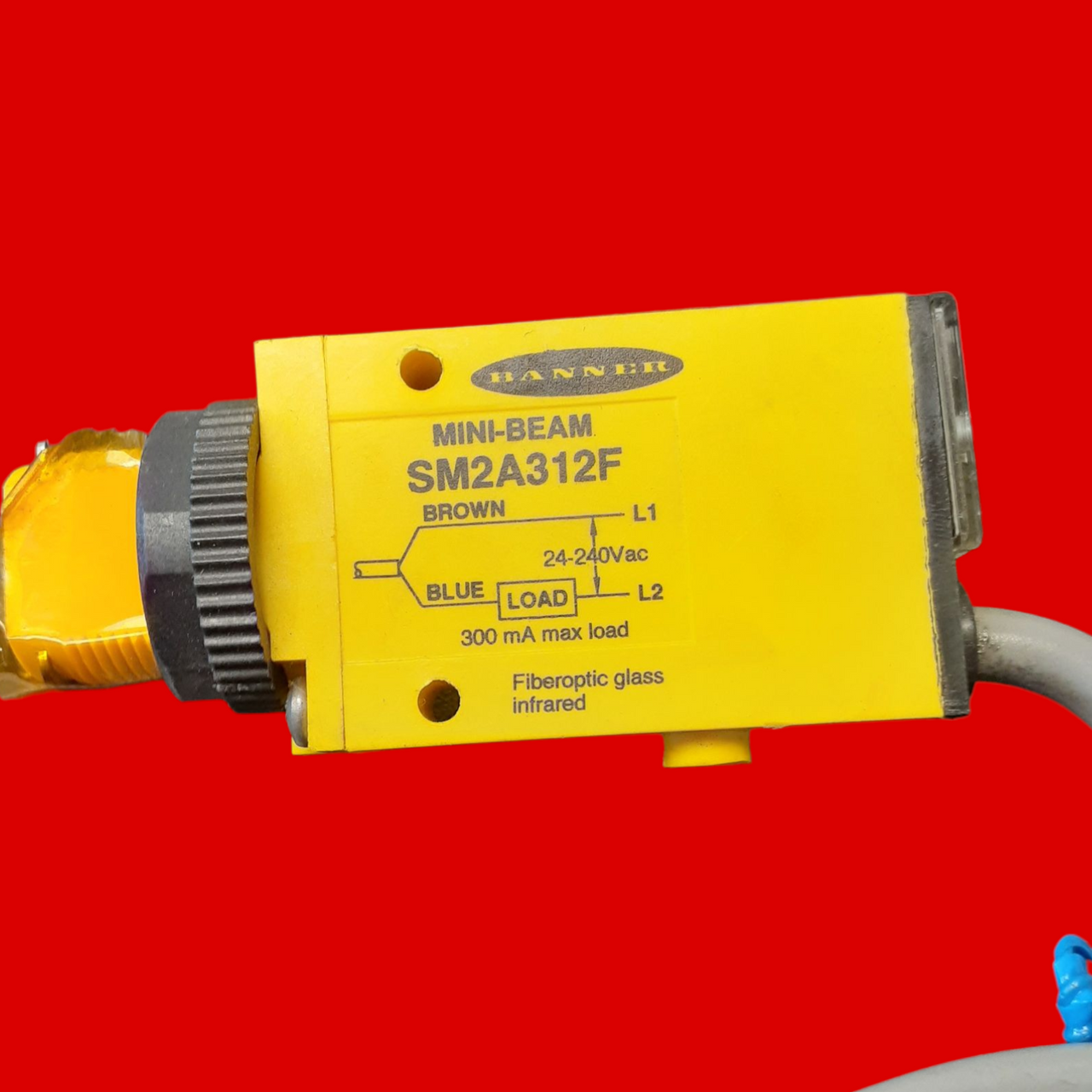

Banner Engineering SM2A312F Sensor, Mini-Beam, Glass Fiber Optic, 2M(6.5In), Pig Tail
PN: SM2A312F
- Power: AC
- Cable Length (m): 2
- IP Rating: IP67
- Accepts Fiber Termination Type: Glass Fiber Termination
- NEMA / UL Type Rating: NEMA 4X
- Housing Style: Rectangular w/M18 Mount
- Primary Housing Material: Thermoplastic
- Input Output: Discrete
- Color LED - Amplifiers: Infrared
- Fiber Type: Glass Only
- Output: Solid-State AC Switch
- Connection: Cable
- Output Type (Specific): Single Discrete
- Repeatability (µs): 2600
- Number of Pins: 2
- Max Op. Temperature (°C): 70
- Min Op. Temperature (°C): -20
- Max Op. Relative Humidity (%): 90% @ 50°C
- Special Feature: Remote Teach: No
- Intrinsically Safe: No
- Adjustments: Potentiometer
- Power Supply/Supply Voltage: 24-240 V ac
- Delay at Power-up (ms): 300
- Indicator Display Type Indicator: LEDs
- Minimum response time (ms): 8
- Special Feature: Bussable Power: No
- Feature: Audible: No
- Housing Material: Thermoplastic
