Product Description

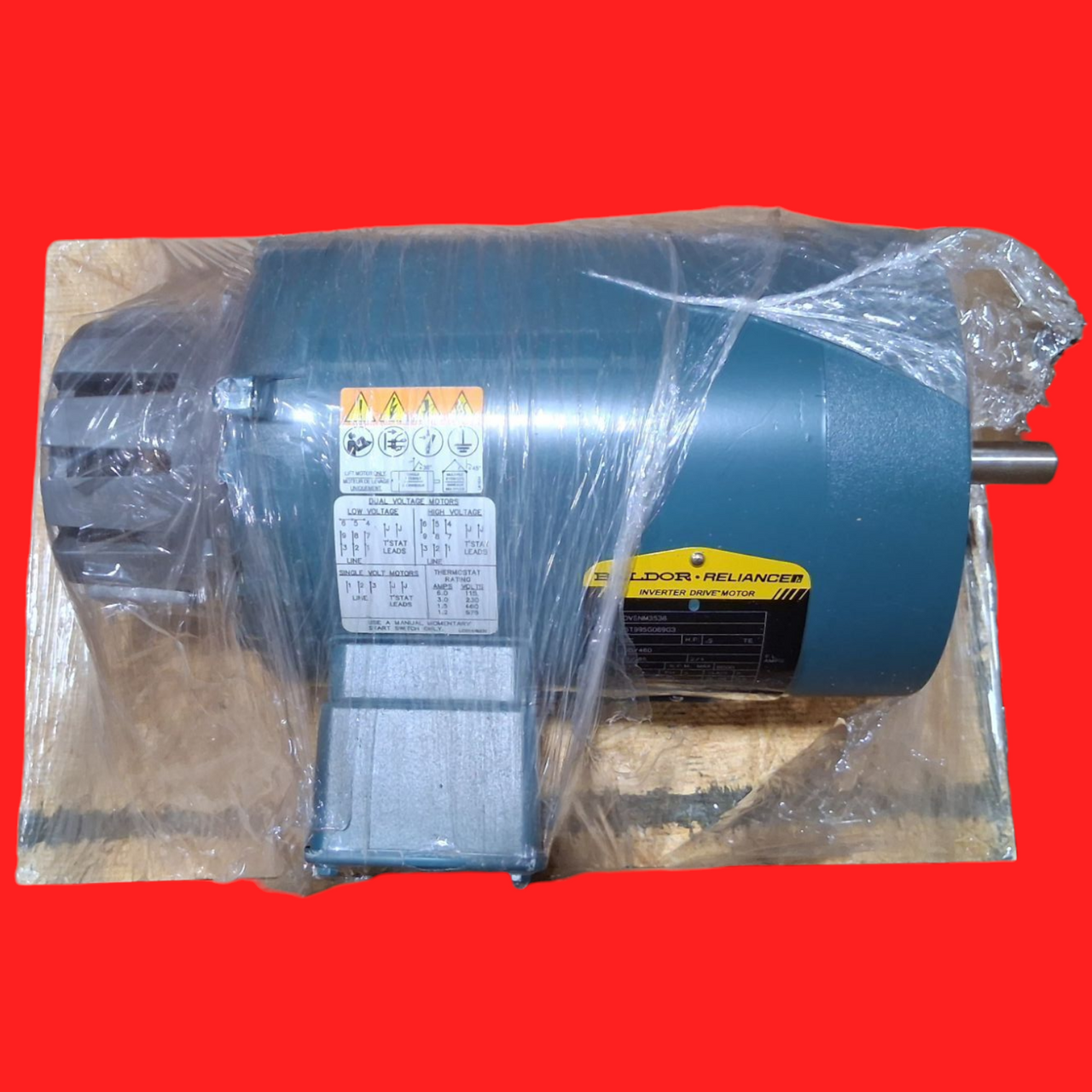

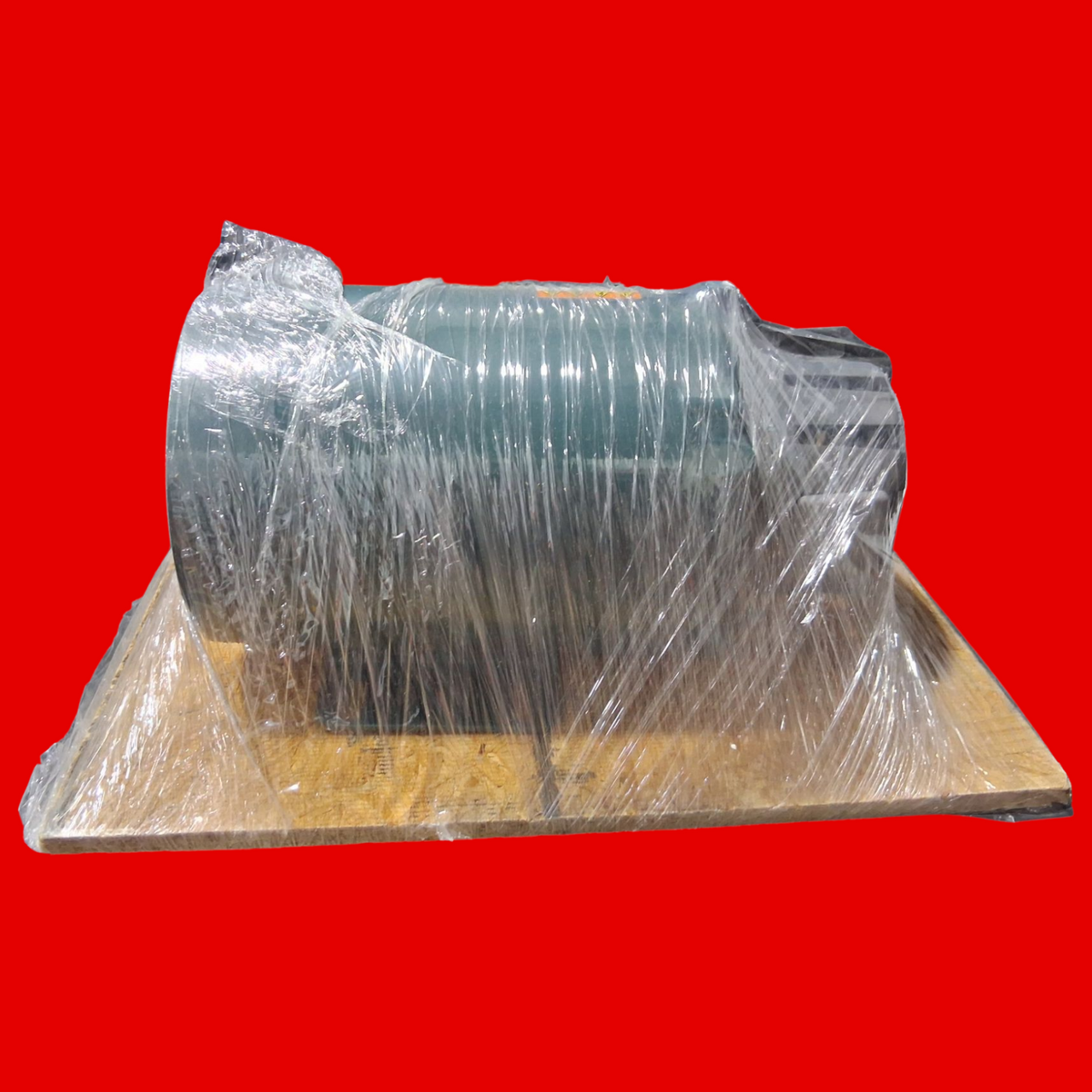

Baldor Reliance IDVSNM3538 .5HP, 1775RPM, 3PH, 60HZ, 56C, 3514M, TENV, F1 Inverter Drive Motor
Cat. #: IDVSNM3538
- Enclosure: TENV
- Frame: 56C
- Frame Material: Steel
- Frequency: 60.00 Hz
- Motor Letter Type: Three Phase
- Output @ Frequency: .500 HP @ 60 HZ
- Phase: 3
- Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
- Voltage @ Frequency: 230.0 V @ 60 HZ/ 460.0 V @ 60 HZ
- Haz Area Class and Group: None
- Haz Area Division: Not Applicable
- Agency Approvals: UR, CSA
- Ambient Temperature: 40 °C
- Auxiliary Box NO AUXILLARY BOX
- Auxiliary Box Lead Termination: None
- Base Indicator: Rigid
- Bearing Grease Type: Polyrex EM (-20F +300F)
- Blower: None
- Current @ Voltage: 1.000 A @ 460.0 V/ 2.000 A @ 230.0 V
- Design Code: B
- Drip Cover: No Drip Cover
- Duty Rating: CONT
- Efficiency @ 100% Load: 81.5 %
- Electrically Isolated Bearing: Not Electrically Isolated
- Feedback Device: NO FEEDBACK
- High Voltage Full Load Amps: 1.0 a
- Front Face Code Encoder/Feedback Device
- Front Shaft Indicator: None
- Heater Indicator: No Heater
- Insulation Class: F
- Inverter Code: Inverter Duty
- KVA Code: P
- Lifting Lugs: No Lifting Lugs
- Locked Bearing Indicator: Locked Bearing
- Max Speed: 6000 rpm
- Motor Lead Exit: Ko Box
- Motor Lead Termination: Flying Leads

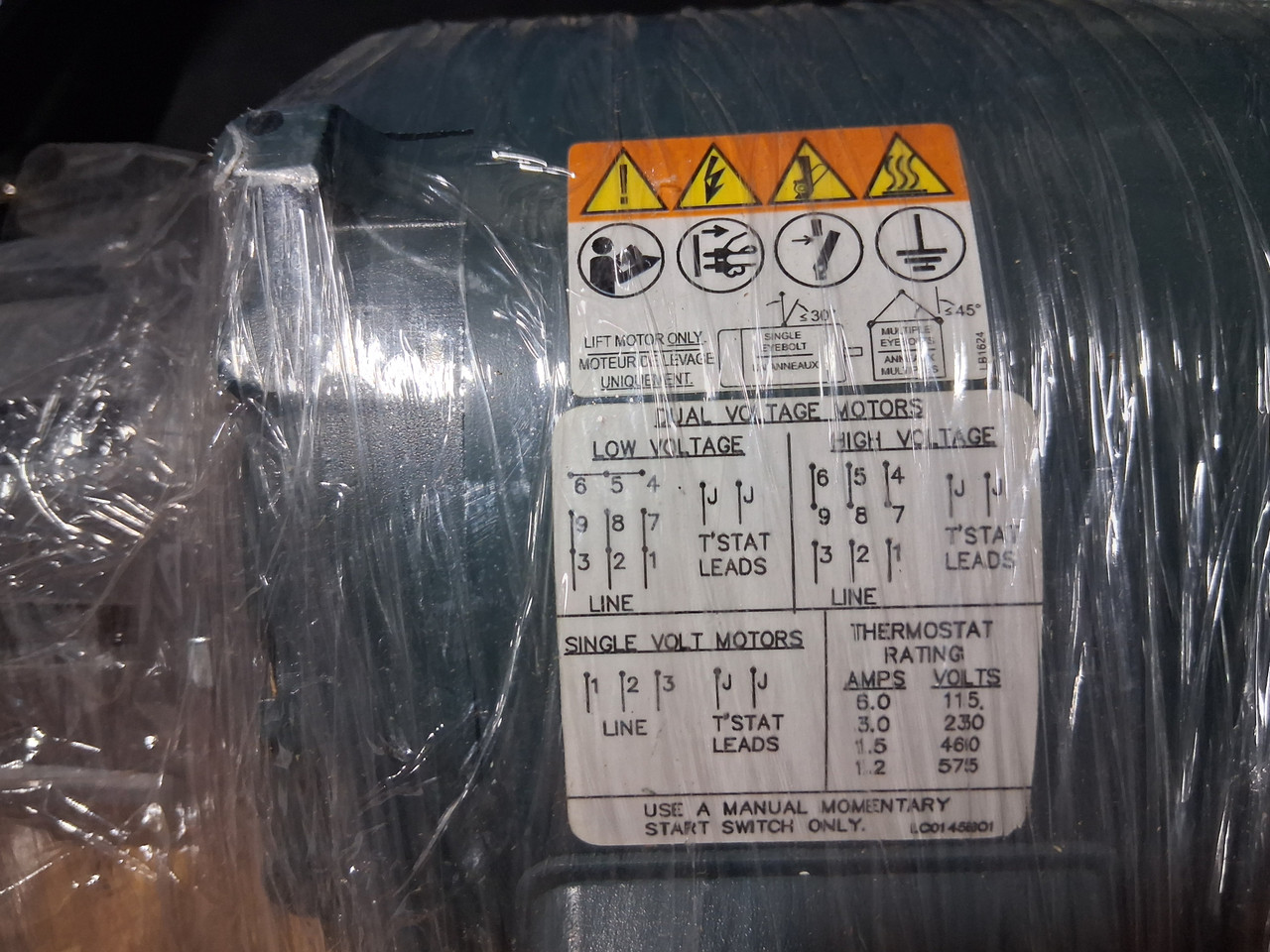

- Motor Lead Quantity/Wire Size: 9 @ 18 AWG
- Motor Type: 3514M
- Mounting Arrangement: F1
- Number of Poles: 4
- Overall Length: 13.84 IN
- Power Factor: 58
- Product Family: General Purpose
- Pulley End Bearing Type: Ball

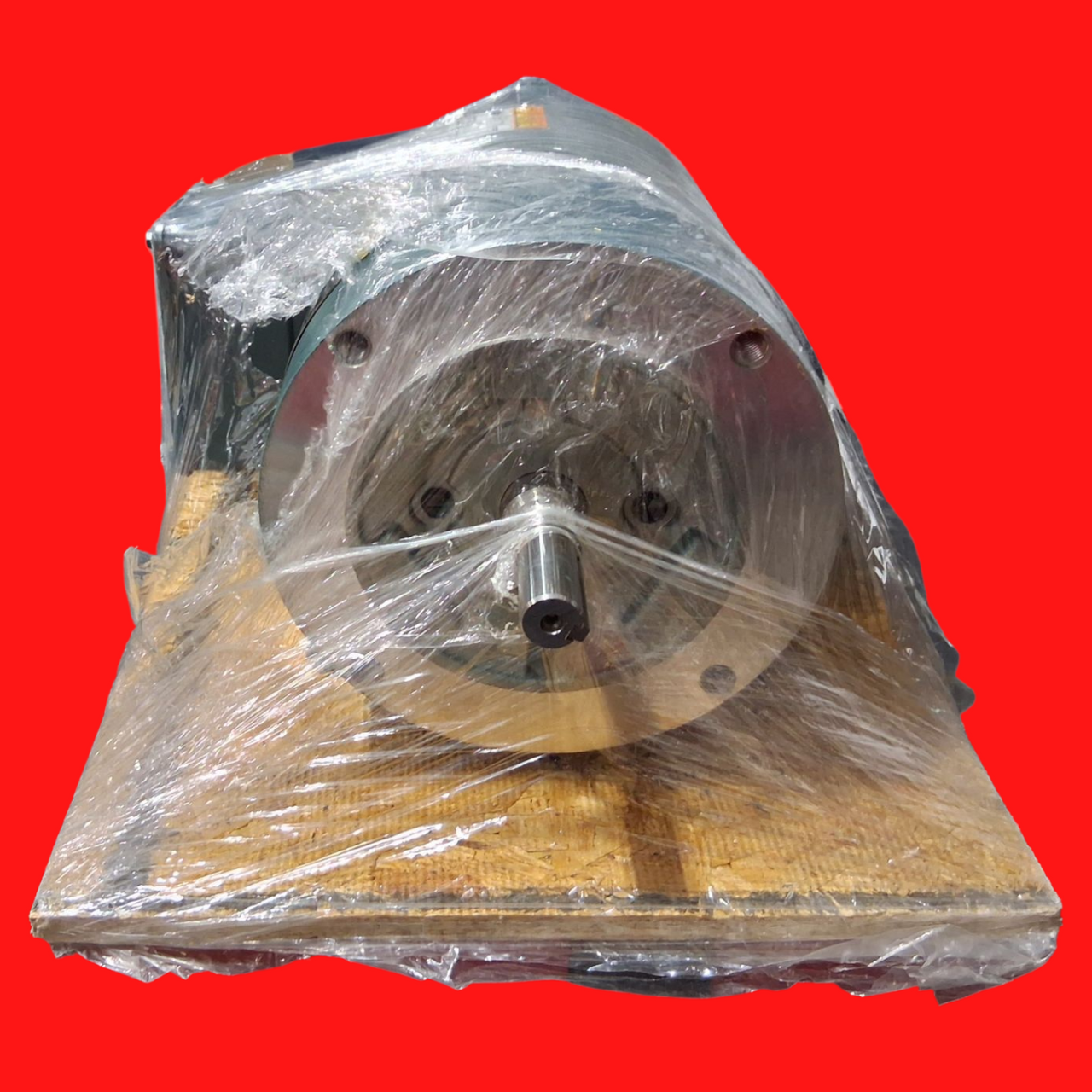

- Pulley Face Code: C-Face
- Pulley Shaft Indicator: Standard
- Rodent Screen: None
- RoHS Status: ROHS NON-COMPLIANT
- Service Factor: 1.00
- Shaft Diameter: 0.625 IN
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: No Slinger
- Speed: 1775 rpm
- Speed Code: Single Speed
- Motor Standards: NEMA
- Starting Method: Direct on line
- Thermal Device - Bearing: None
- Thermal Device - Winding: Normally Closed Thermostat
- Vibration Sensor Indicator: No Vibration Sensor
- Winding Thermal 1: None
- Winding Thermal 2: None
