Product Description

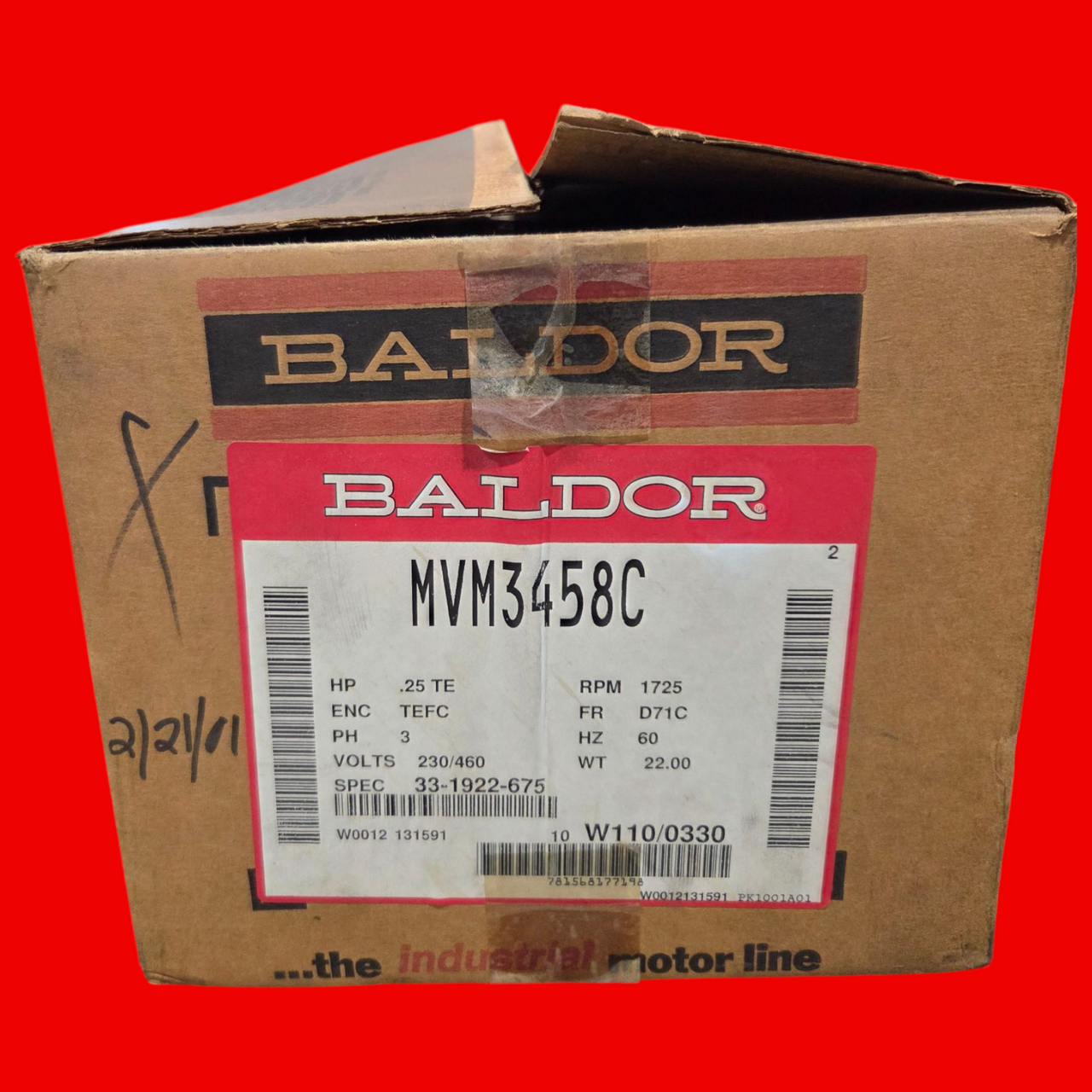

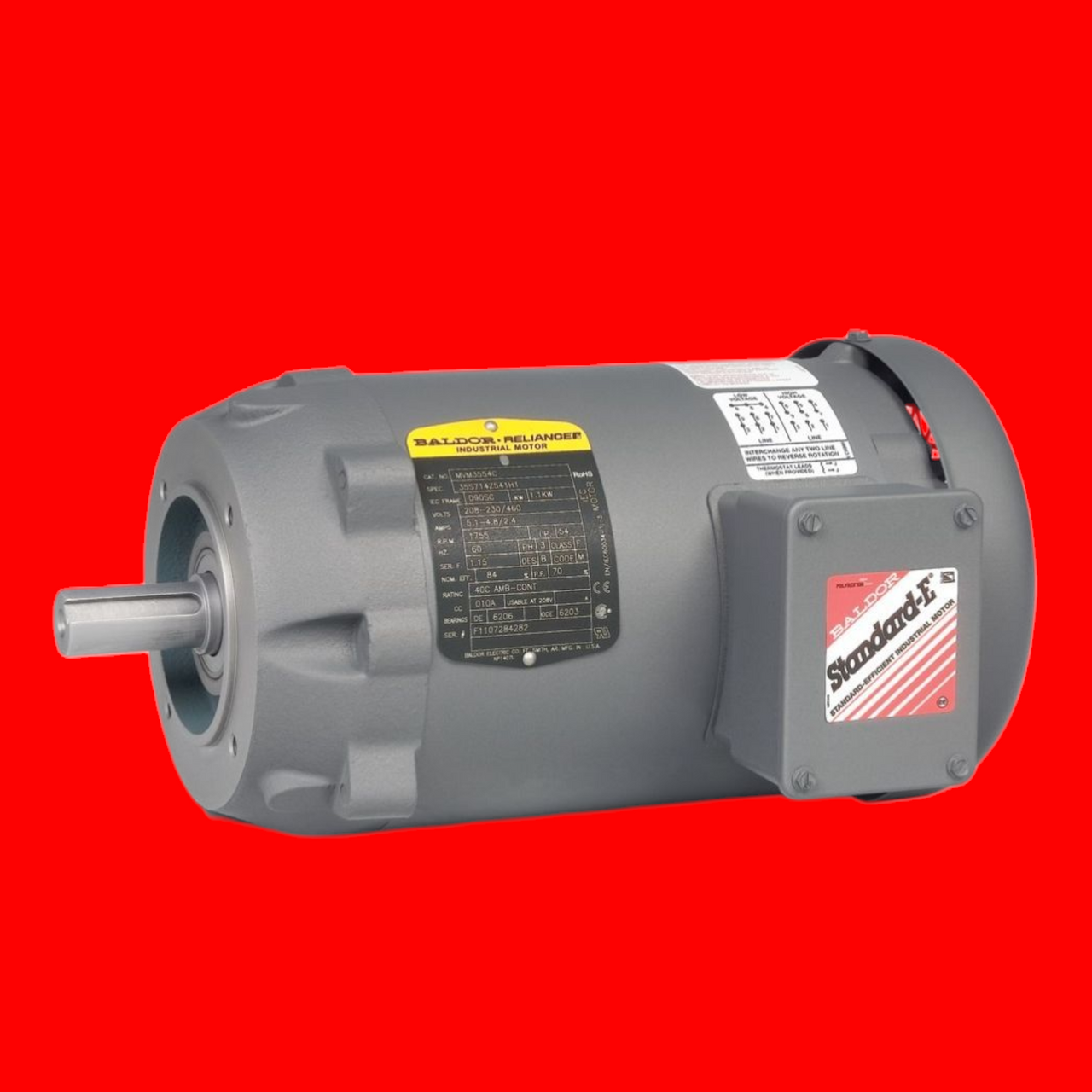

Baldor MVM3458C General Purpose Motor, .25KW, 1725RPM, 3PH, 60HZ, D71C, 3320M, TEFC
PN: MVM3548C
- Enclosure: TEFC
- Frame: D71C
- Frame Material: Steel
- Frequency: 60.00 Hz
- Motor Letter Type: Three Phase
- Output @ Frequency: .330 HP @ 60 HZ
- Phase: 3
- Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
- Voltage @ Frequency: 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
- Agency Approvals: CURUS
- Ambient Temperature: 40 °C
- Auxillary Box: No Auxillary Box
- Auxillary Box Lead Termination: None
- Base Indicator: No Mounting
- Bearing Grease Type: Polyrex EM (-20F +300F)
- Blower: None
- Current @ Voltage: .700 A @ 460.0 V, 1.400 A @ 230.0 V, 1.700 A @ 208.0 V
- Design Code: B
- Drip Cover: No Drip Cover
- Duty Rating: CONT
- Efficiency @ 100% Load: 74.0 %
- Electrically Isolated Bearing: Not Electrically Isolated
- Feedback Device: NO FEEDBACK
- Feedback Signal: NONE
- High Voltage Full Load Amps: 0.7 a
- Frame Prefix: D
- Front Face Code: Standard
- Front Shaft Indicator: None
- Heater Indicator: No Heater
- Insulation Class: B
- Inverter Code: Not Inverter
- IP Rating: NONE
- KVA Code -
- Lifting Lugs: No Lifting Lugs
- Locked Bearing Indicator: Locked Bearing
- Motor Lead Exit: Ko Box
- Motor Lead Termination: Flying Leads
- Motor Lead Quantity/Wire Size: 9 @ 18 AWG
- Motor Type: 3320M
- Mounting Arrangement: F2
- Number of Poles: 4
- Overall Length: 10.74 IN
- Power Factor: 58
- Product Family: General Purpose
- Pulley End Bearing Type: Ball
- Pulley Face Code: C-Face
- Pulley Shaft Indicator: Tapped & Key
- Rodent Screen: None
- RoHS Status ROHS COMPLIANT
- Service Factor: 1.35
- Shaft Diameter: 0.552 IN
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: No Slinger
- Speed: 1725 rpm
- Speed Code: Single Speed
- Motor Standards: IEC
- Starting Method: Direct on line
- Thermal Device - Bearing: None
- Thermal Device - Winding: None
- Vibration Sensor Indicator: No Vibration Sensor
- Winding Thermal 1: None
- Winding Thermal 2: None
