Product Description

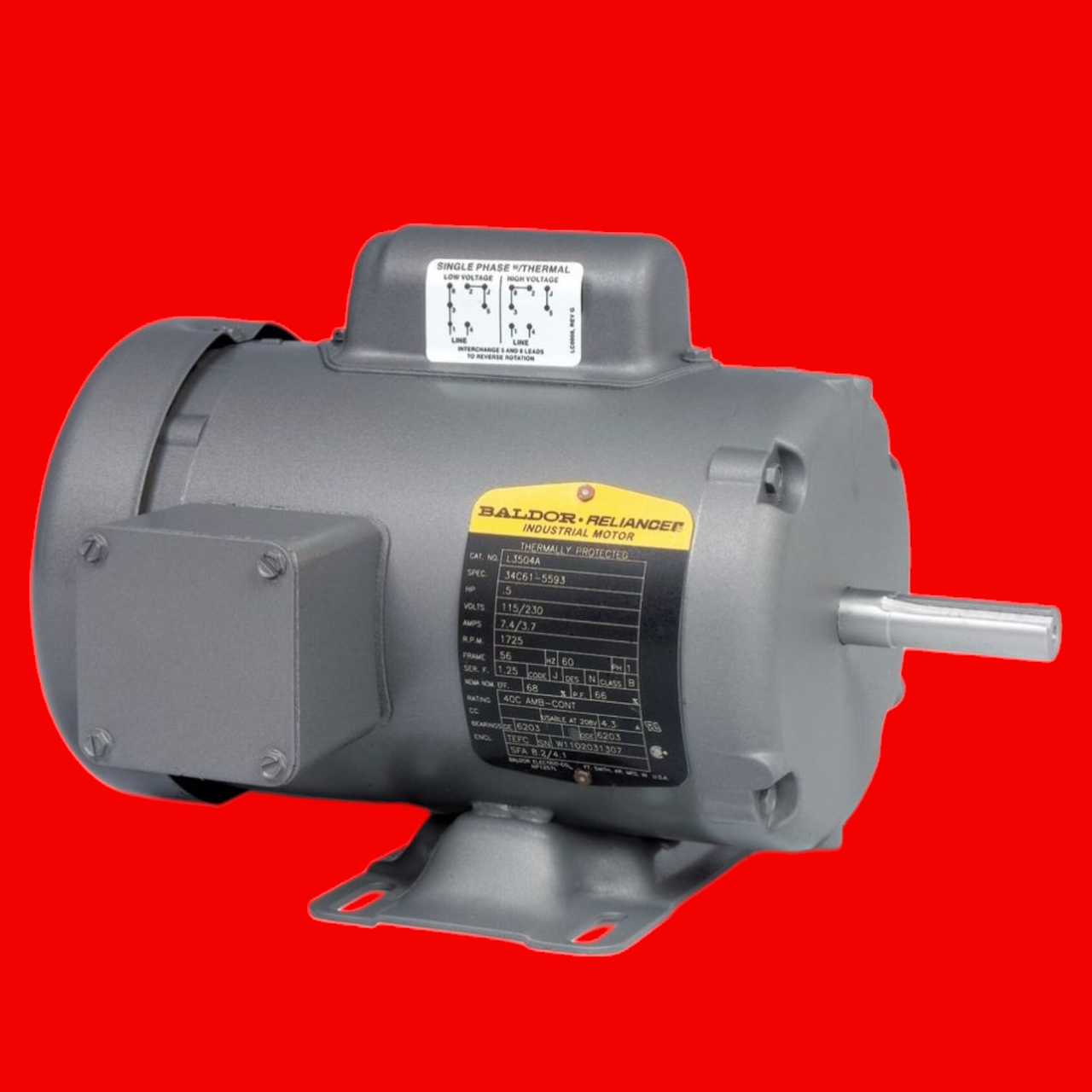

Baldor L3351 General Purpose Motor, .08HP, 1725RPM, 1PH, 60HZ, 42, 3310L, TEFC, F1
PN: L3351
- Enclosure: TEFC
- Frame: 42
- Frame Material: Steel
- Frequency: 60.00 Hz
- Motor Letter Type: Cap Start, Induction Run
- Output @ Frequency: .080 HP @ 60 HZ
- Phase: 1
- Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
- Voltage @ Frequency: 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
- Agency Approvals: CURUS, C UR US
- Ambient Temperature: 40 °C
- Auxillary Box: No Auxillary Box
- Auxillary Box Lead Termination: None
- Base Indicator: Rigid
- Bearing Grease Type: Polyrex EM (-20F +300F)
- Blower: None
- Current @ Voltage: 1.000 A @ 230.0 V, 1.150 A @ 208.0 V, 2.000 A @ 115.0 V
- Design Code -
- Drip Cover: No Drip Cover
- Duty Rating: CONT
- Efficiency @ 100% Load: 44.0 %
- Electrically Isolated Bearing: Not Electrically Isolated
- Feedback Device: NO FEEDBACK
- Feedback Signal: NONE
- High Voltage Full Load Amps: 1.0 a
- Front Face Code: Standard
- Front Shaft Indicator: None
- Heater Indicator: No Heater
- Insulation Class: B
- Inverter Code: Not Inverter
- KVA Code: M
- Lifting Lugs: No Lifting Lugs
- Locked Bearing Indicator: No Locked Bearing
- Motor Lead Exit: Ko Box
- Motor Lead Termination: Flying Leads
- Motor Lead Quantity/Wire Size: 6 @ 18 AWG
- Motor Type: 3310L
- Mounting Arrangement: F1
- Number of Poles: 4
- Overall Length: 9.56 IN
- Power Factor: 52
- Product Family: General Purpose
- Pulley End Bearing Type: Ball
- Pulley Face Code Standard
- Pulley Shaft Indicator: Standard
- Rodent Screen: None
- RoHS Status: ROHS COMPLIANT
- Service Factor: 1.40
- Shaft Diameter: 0.375 IN
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: No Slinger
- Speed: 1725 rpm
- Speed Code: Single Speed
- Motor Standards: NEMA
- Starting Method Direct on line
- Thermal Device - Bearing: None
- Thermal Device - Winding: None
- Vibration Sensor Indicator: No Vibration Sensor
- Winding Thermal 1: None
- Winding Thermal 2: None
