Product Description

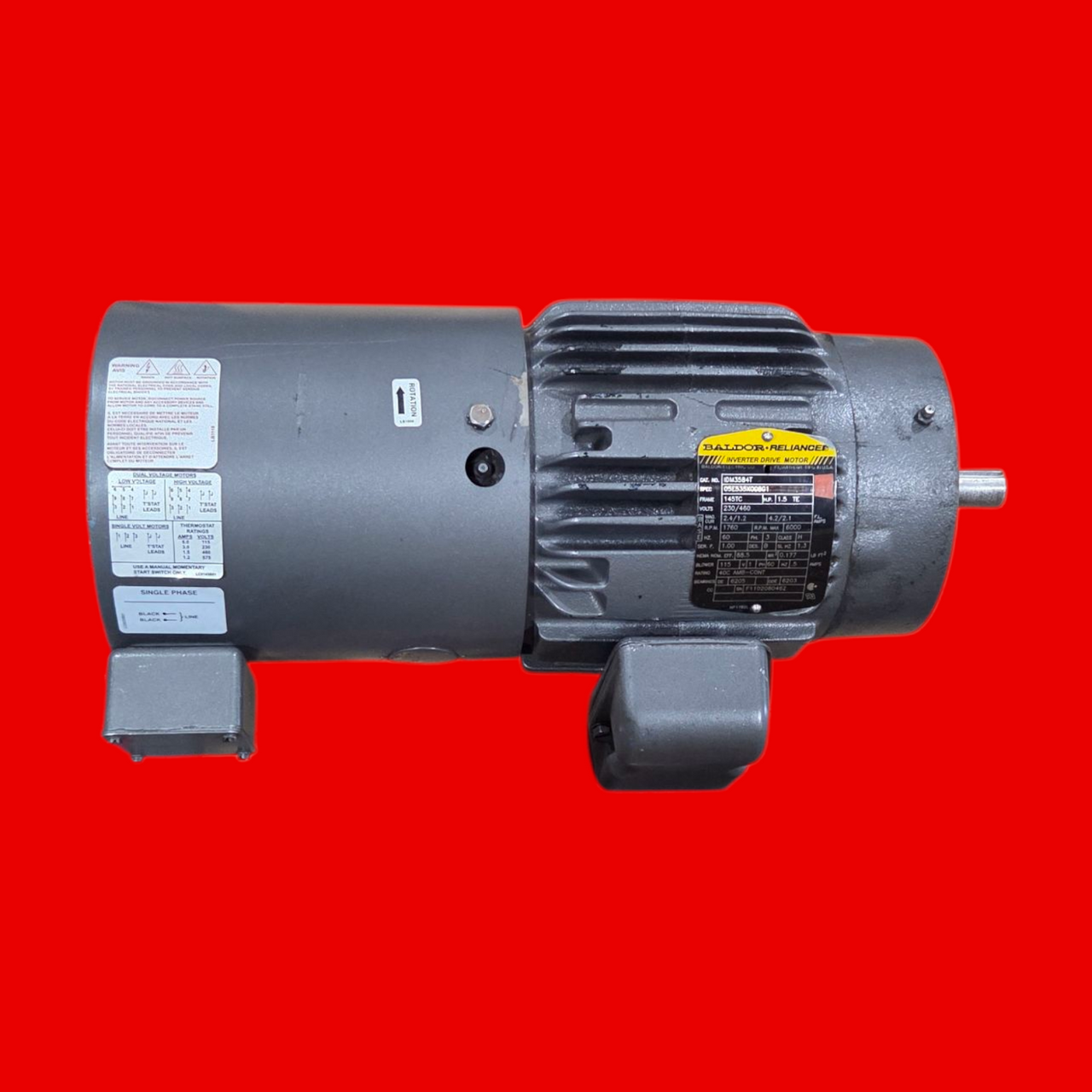

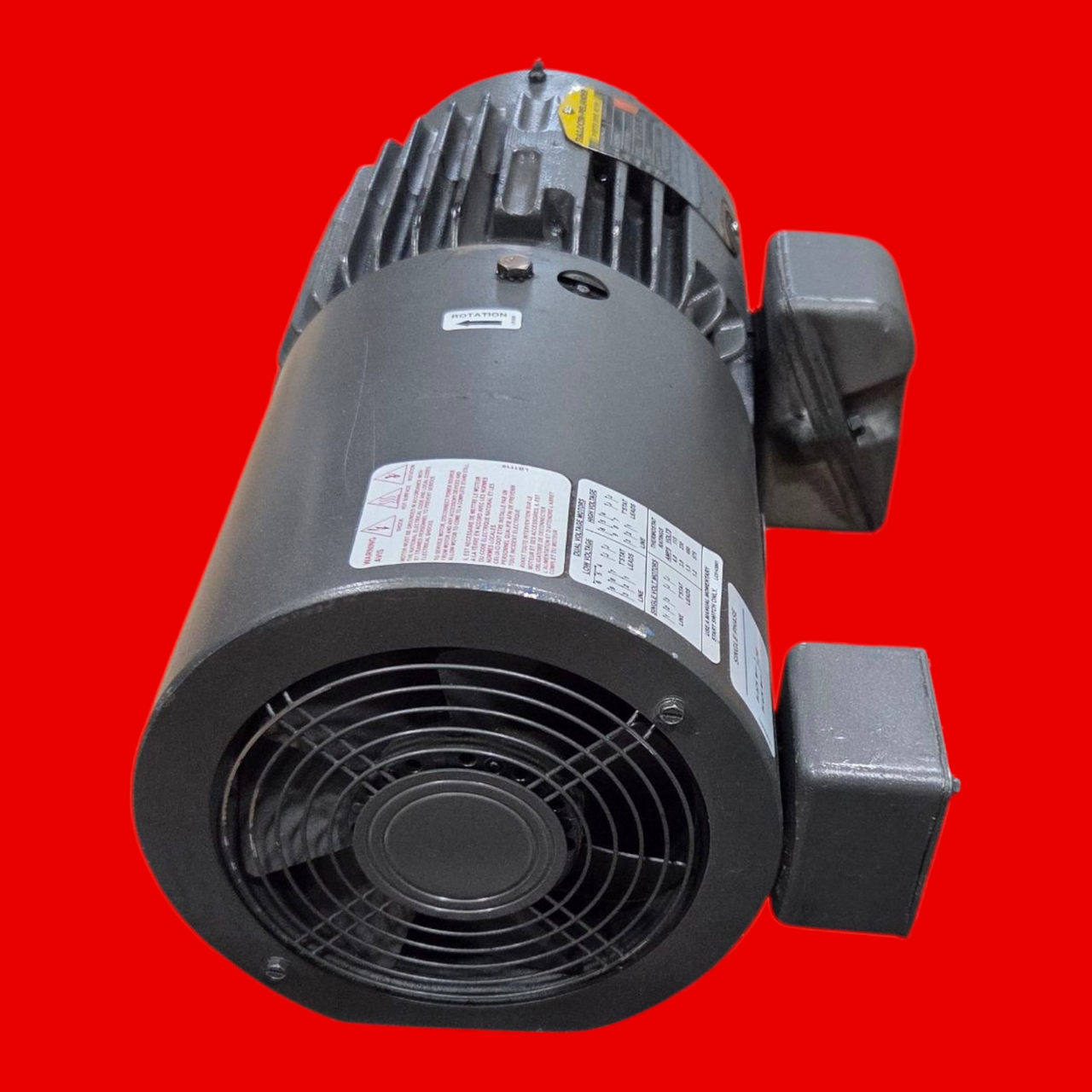

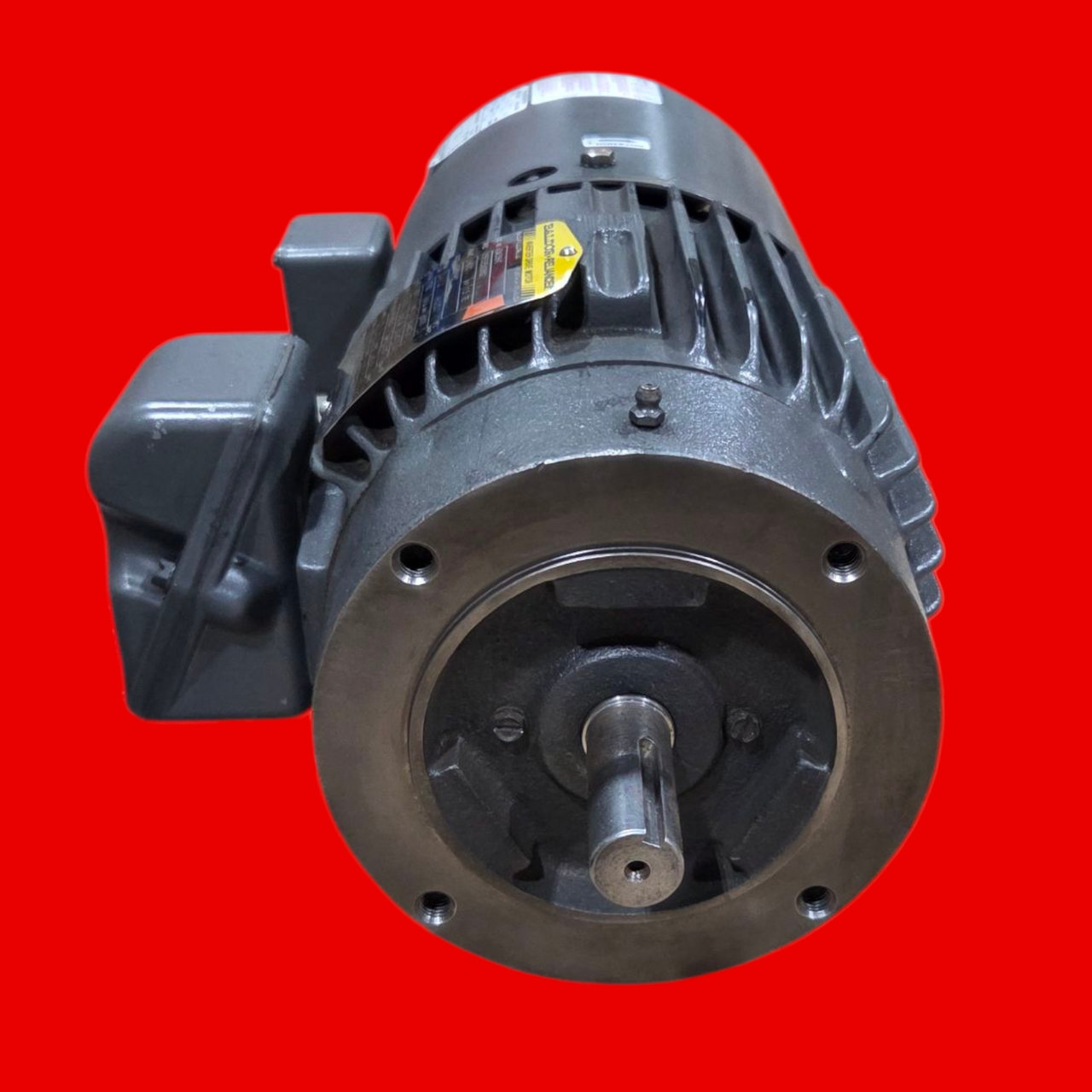

Baldor General Purpose Motor, IDM3584T, 1.5HP, 1770RPM, 3PH, 60HZ, 145TC, 0524M, TEBC
PN: IDM3584T
- Enclosure: TEBC
- Frame: 145TC
- Frame Material: Iron
- Frequency: 60.00 Hz
- Motor Letter Type: Three Phase
- Output @ Frequency: 1.500 HP @ 60 HZ
- Phase: 3
- Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
- Voltage @ Frequency: 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
- Haz Area Class and Group: None
- Haz Area Division: Not Applicable
- Agency Approvals: CSA, UR
- Ambient Temperature: 40 °C
- Auxillary Box: No Auxillary Box
- Auxillary Box Lead Termination: None
- Base Indicator: Rigid
- Bearing Grease Type: Polyrex EM (-20F +300F)
- Blower: BLOWER
- Current @ Voltage: 4.600 A @ 230.0 V, 4.640 A @ 208.0 V, 2.300 A @ 460.0 V
- Design Code: B
- Drip Cover: No Drip Cover
- Duty Rating: CONT
- Efficiency @ 100% Load: 86.5 %
- Electrically Isolated Bearing: Not Electrically Isolated
- Feedback Device: NO FEEDBACK
- High Voltage Full Load Amps: 2.3 a
- Front Face Code: Encoder/Feedback Device
- Front Shaft Indicator: None
- Heater Indicator: No Heater
- Insulation Class: H
- Inverter Code: Inverter Ready
- KVA Code: M
- Lifting Lugs: Standard Lifting Lugs
- Locked Bearing Indicator: Locked Bearing
- Max Speed: 2700 rpm
- Motor Lead Exit: Ko Box
- Motor Lead Termination: Flying Leads
- Motor Lead Quantity/Wire Size: 9 @ 18 AWG
- Motor Type: 0524M
- Mounting Arrangement: F1
- Number of Poles: 4
- Overall Length: 19.02 IN
- Power Factor: 72
- Product Family: General Purpose
- Pulley End Bearing Type: Ball
- Pulley Face Code: C-Face
- Pulley Shaft Indicator: Standard
- Rodent Screen: None
- Service Factor: 1.00
- Shaft Diameter: 0.875 IN
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: Shaft Slinger
- Speed: 1770 rpm
- Speed Code: Single Speed
- Motor Standards: NEMA
- Starting Method: Direct on line
- Thermal Device - Bearing: None
- Thermal Device - Winding: Normally Closed Thermostat
- Vibration Sensor Indicator: No Vibration Sensor
- Winding Thermal 1: None
- Winding Thermal 2: None
