Product Description

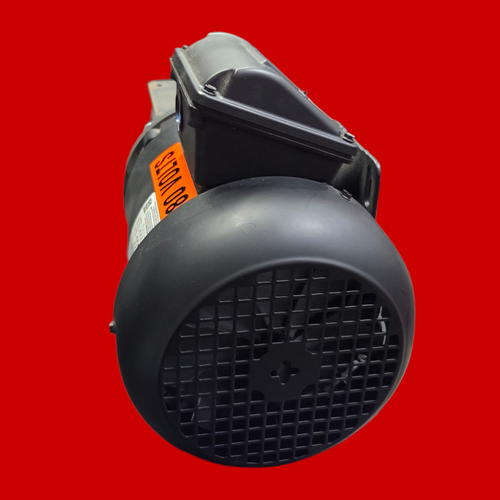

Baldor Gear Reducer, 35 RPM, GHF5018AH with Weg General Purpose Motor: Totally Enclosed Fan Cooled, C-Face/Rigid Base Mount, 3/4 HP, 56C Frame, .7518ES3E56C-S
PN: GHF5018AH Gear Reducer
- Reducer Gear Ratio 50.000
- Sub Family HF
- Output Type RIGHT ANGLE
- Shaft Configuration HOLLOW SHAFT
- Motor Mount 56C
- Output Speed 35 rpm
PN: .7518ES3E56C-S WEG General Purpose Motor
- Motor Application: General Purpose
- Phase: Three
- Motor Design: Three-Phase
- HP: 3/4
- Nameplate RPM: 1755 rpm
- No. of Speeds: 1
- Voltage: 208-230/460V AC
- Full Load Amps: 2.70-2.44/1.22 A
- Frame: 56C
- Usable @ 208V: Yes
- Usable @ 200V: No
- Hz: 60 Hz
- Motor Service Factor: 1.15
- Max. Ambient Temp.: 40 °C
- Motor Thermal Protection: None
- Duty Cycle: Continuous
- Ins. Class: F
- Motor Shaft Rotation: CW/CCW
- Motor Mounting Type: C-Face; Rigid Base
- Motor Mounting Position: All Angle
- Inverter Rated: Yes
- Motor Shaft Design: Keyed
- Motor Frame Material: Steel
- Shaft Dia.: 5/8 in
- Shaft Length: 1-7/8 in
- Motor Bearings: Ball
- Length Less Shaft: 10-1/16 in
- Overall Length: 11-15/16 in
- Weight: 23-1/2 lb
- Nominal Efficiency: 78.5 %
- Standards: CSA; UL
- Full Load Amps @ 50Hz: 2.58/1.37; 2.74/1.37 A
- HP @ 50Hz: 3/4 hp
- RPM Range: 1,701-1,800
