Product Description

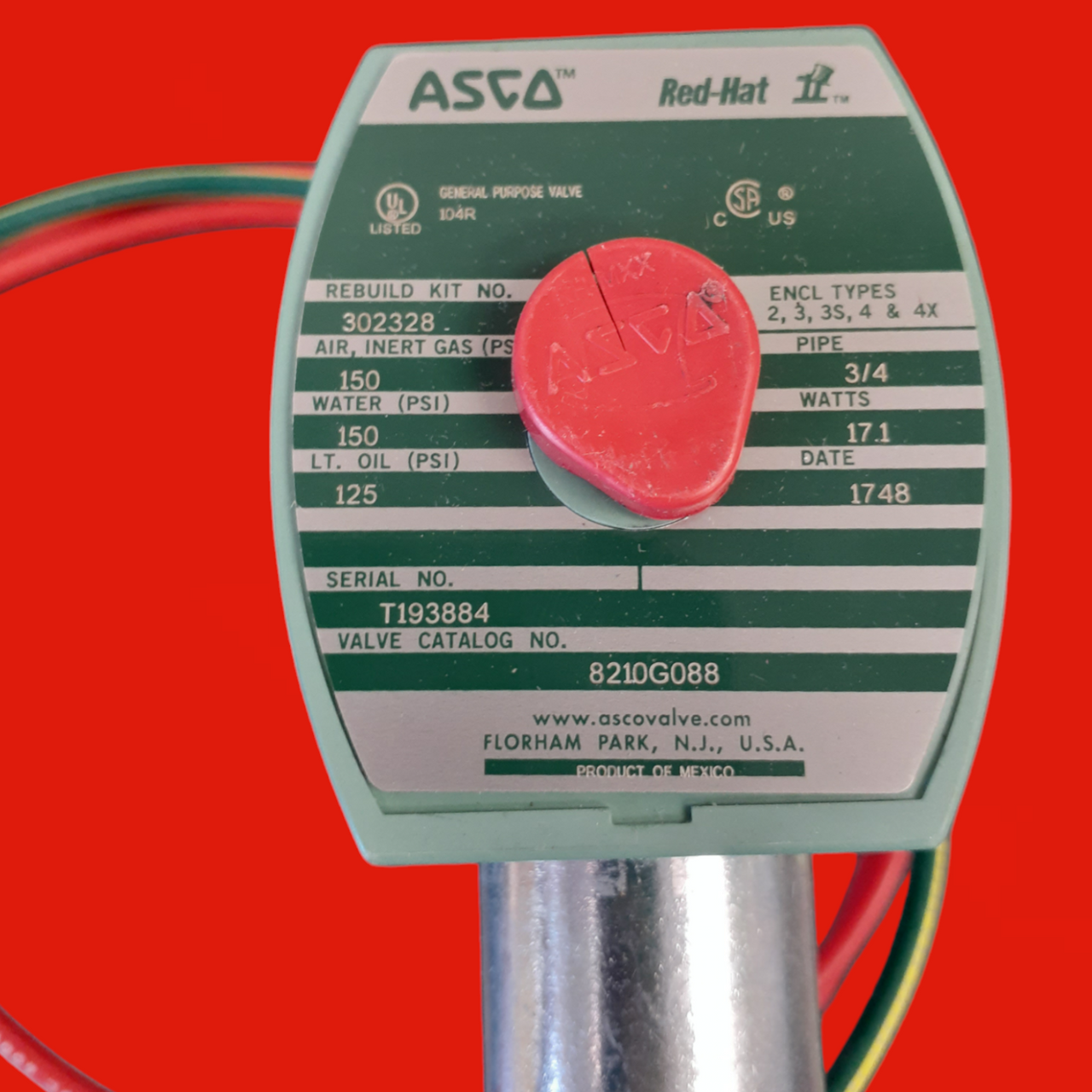

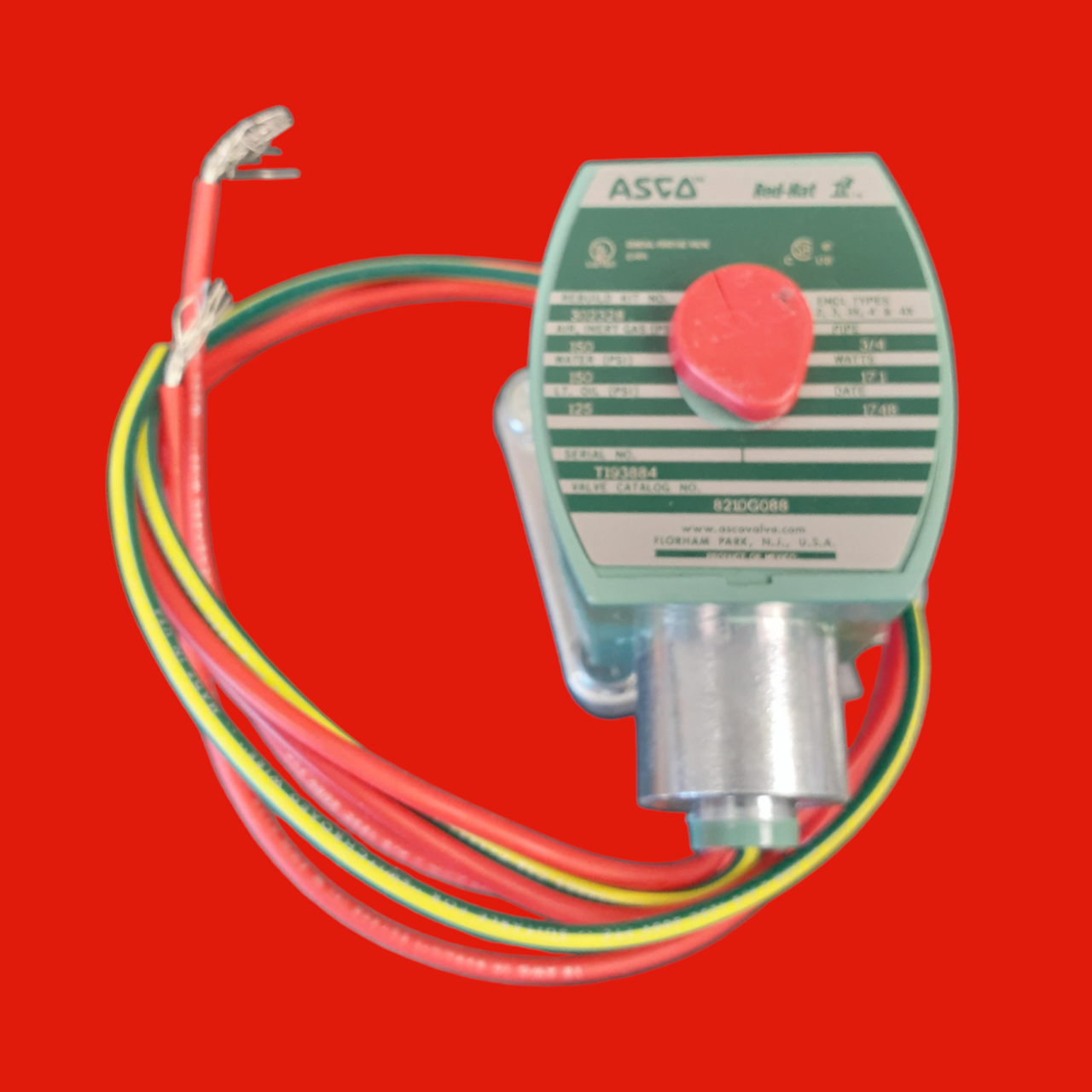

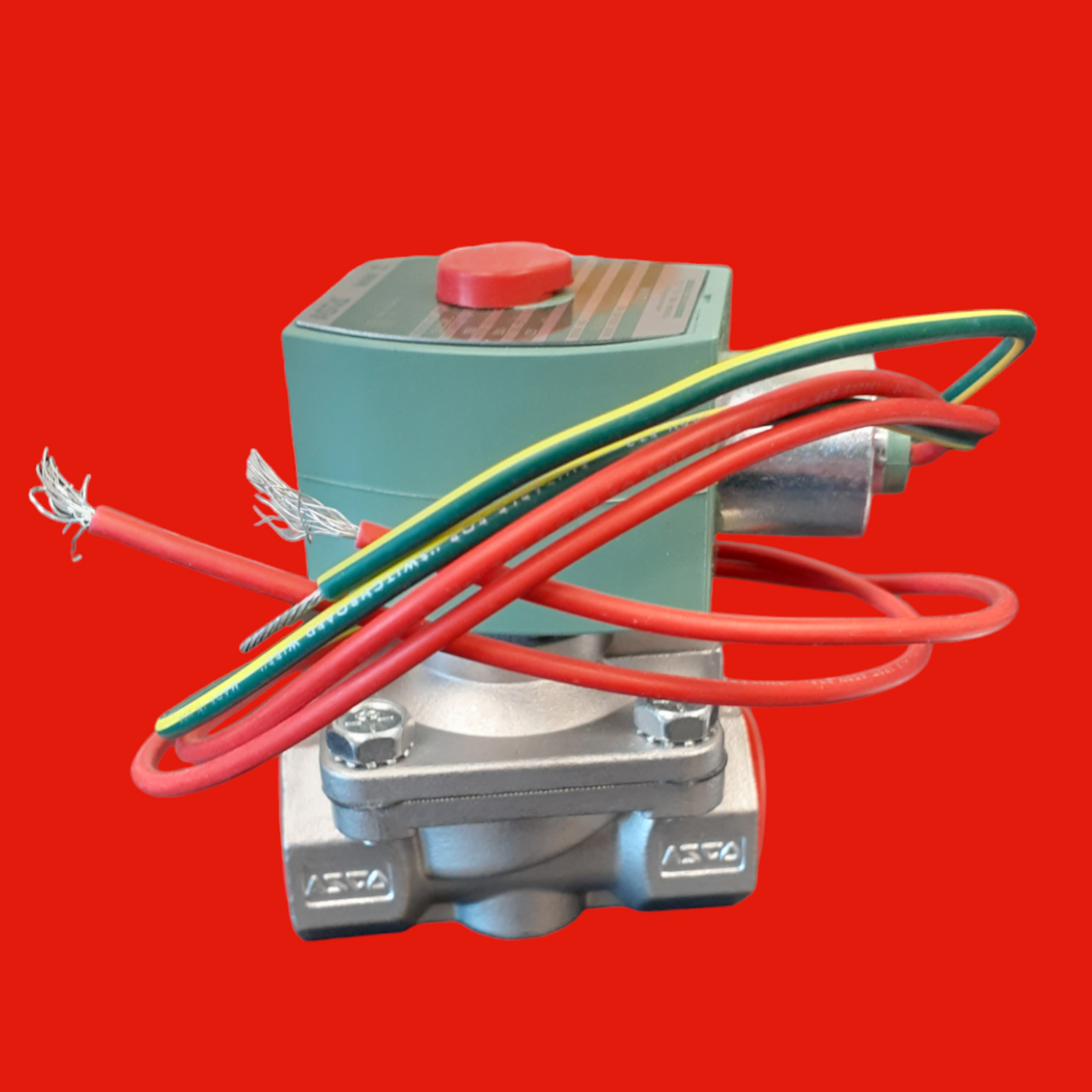

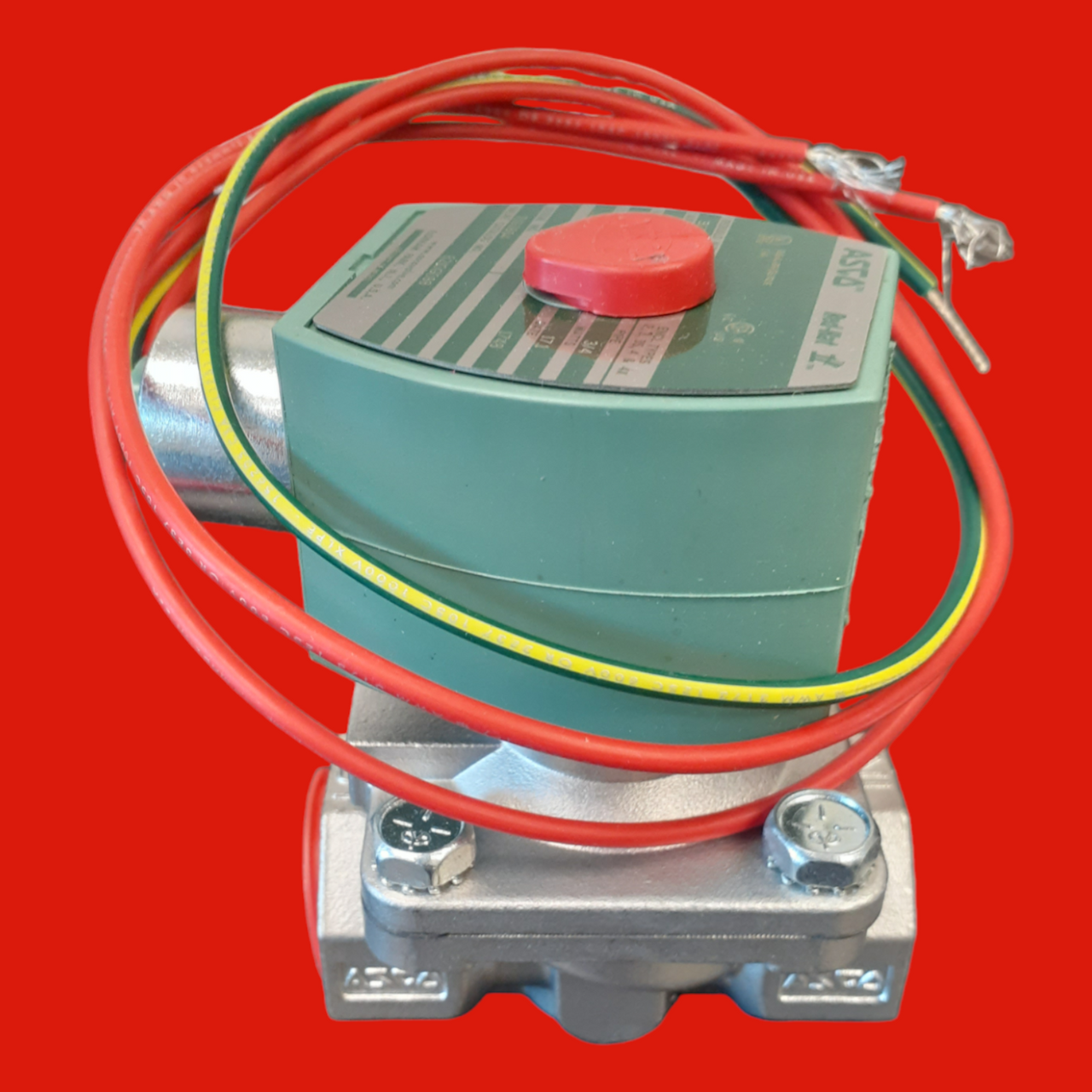

Asco 8210G088 Solenoid Valve: 2-Way, Normally Closed, 3/4 in Pipe Size, 110V AC/120V AC, Watertight
PN: 8210G088
- For MediaAir; Inert Gases; Light Oil; Water
- Application: Air Compressors; Car Wash Equipment; Industrial Water Control; Laundry Equipment; Pumps
- Valve Type: High Flow
- Mounting Orientation: Vertical
- Operation Type: Pilot Operated
- Valve Ways: 2-Way
- Valve Positions: 2-Position
- Body Material: Stainless Steel
- Seal Material: NBR
- Nominal Pipe Size: 3/4 in
- Inlet Connection Type: NPTF
- Outlet Connection Type: NPTF
- Voltage: 110V AC; 120V AC
- Wattage: 17.1 W
- Frequency: 50 Hz; 60 Hz
- Electrical Connections: 1/2" Conduit Hub
- Coefficient of Volume (Cv): 4.5
- Orifice Diameter: 5/8 in
- Min. Operating Pressure Differential: 0 psi
- Max. Operating Pressure Differential - Water: 150 psi
- Max. Operating Pressure Differential - Steam: Not Rated
- Max. Operating Pressure Differential - Light Oil: 125 psi
- Max. Operating Pressure Differential - Air/Inert Gas: 150 psi
- Max. Fluid Temperature: 175 °F
- Min. Ambient Temperature: 14 °F
- Max. Ambient Temperature: 140 °F
- Response Time: 1 sec
- Includes Seal: Yes
- Includes Coil: Yes
- Coil Enclosure: Watertight
- Coil Insulation Class: F
- Overall Height: 4-3/16 in
- Overall Length: 2-13/16 in
- Overall Width: 2-5/16 in
- Operating Environment: Indoor; Outdoor
- IP Rating: IP66
- NEMA Rating: 1; 2; 3; 3S; 4; 4X
- Standards: UL Listed
- Valve Configuration: Normally Closed
