Product Description

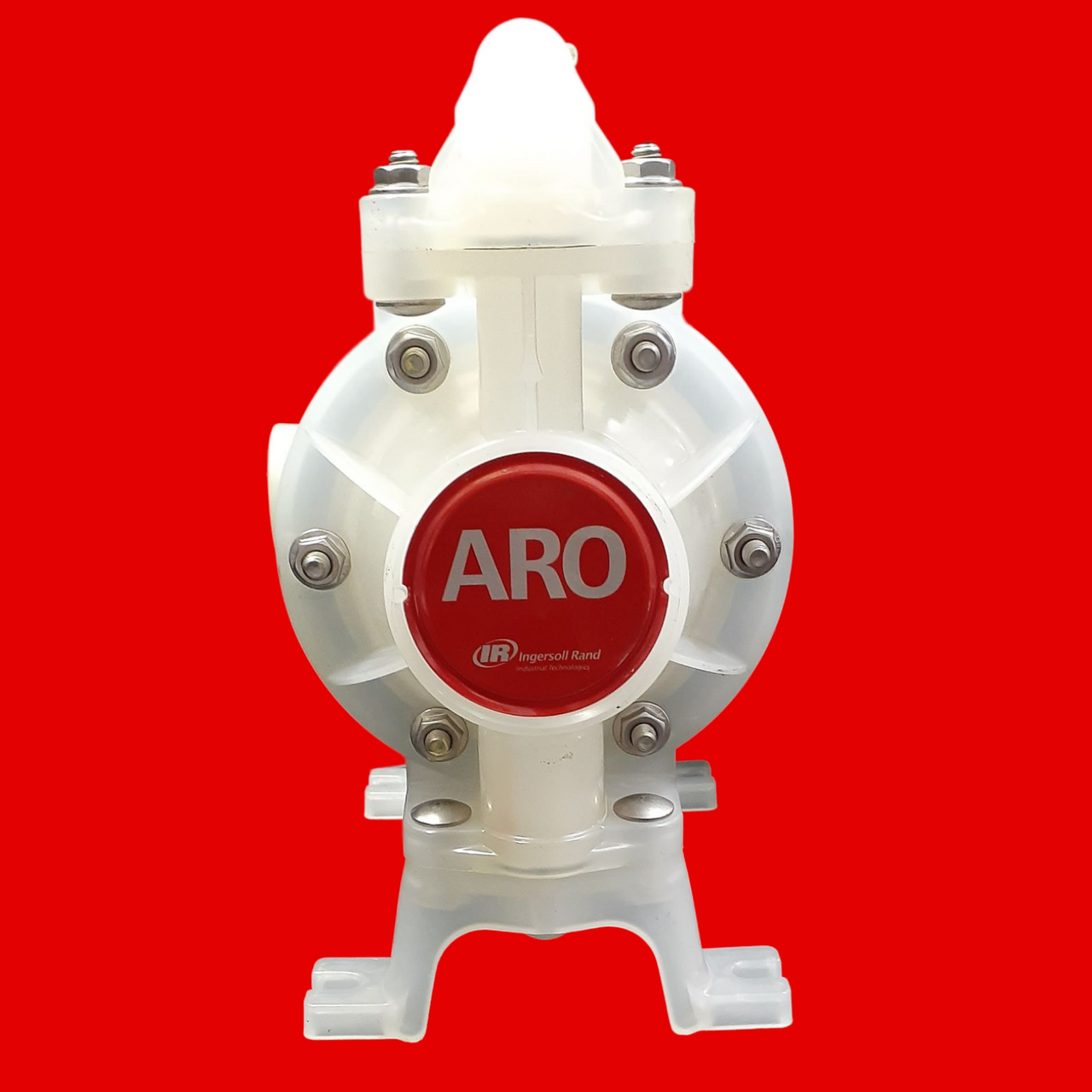

ARO PD03P-APS-PTT Double Diaphragm Pump: Air, Polypropylene, Bolt, 3/8 in Fluid Connection Size, NPT, PTFE, PTFE
PN: PD03P-APS-PTT
- Power Source: Air
- Housing Material: Polypropylene
- Diaphragm Material: PTFE
- Valve Material: PTFE
- Check Seat Material: Polypropylene
- Center Section Material: Plastic
- Mounting Hardware Material: Stainless Steel
- Pump Assembly Type: Bolt
- Manifold Connection: Single Port
- Fluid Intake Connection: 3/8 in NPT
- Fluid Discharge Connection: 3/8 in NPTF
- Max. Flow Rate: 11 gpm
- Manifold Connection TypeNPT
- Flow Rate @ 40 psi: 8 gpm
- Flow Rate @ 50 psi: 9 gpm
- Flow Rate @ 60 psi: 9.5 gpm
- Flow Rate @ 70 psi: 10 gpm
- Flow Rate @ 80 psi: 10.5 gpm
- Flow Rate @ 90 psi: 10.8 gpm
- Flow Rate @ 100 psi: 11 gpm
- Max. Discharge Pressure: 100 psi
- Max. Feet of Head: 230 ft
- NPSHr: 35 ft of head
- Max. Solid Dia.: 0.06 in
- Max. Viscosity: 500 cps
- Min. Media Temperature: 40 °F
- Max. Media Temperature: 225 °F
- Air Consumption: 18 scfm
- Air Inlet: 1/4 in NPT
- Rated Air Pressure: 100 psi
- Valve Type: Ball
- Priming: Self-Priming
- Media Intake Location: Side
- Media Discharge Location: Side
- For Use With Potable Systems: Yes
- Nameplate Voltage: N
- Overall Height: 9.2 in
- Overall Length: 7.9 in
- Overall Width5.7 in
- Series Family: Compact
- Series: PD03P
- Chemical Compatibility
- Ammonium Hydroxide; Calcium Carbonate; Diesel Exhaust Fluid; Hydrochloric Acid 10%; Hydrochloric Acid 20%; Hydrochloric Acid 30%; Hydrochloric Acid 40%; Phosphoric Acid 40%; Phosphoric Acid 50%; Phosphoric Acid 60%; Phosphoric Acid 70%; Phosphoric Acid 80%; Phosphoric Acid 90%; Phosphoric Acid 100%; Potassium Hydroxide 50%; Sodium Hydroxide 20%; Sodium Hydroxide 50%; Sodium Hydroxide 80%; Sodium Hypochlorite 5%; Sodium Hypochlorite 10%; Sodium Hypochlorite 20%; Sulfuric Acid 10%; Sulfuric Acid 20%; Sulfuric Acid 30%; Sulfuric Acid 40%; Sulfuric Acid 50%; Sulfuric Acid 60%; Sulfuric Acid 70%; Water
- NEW WITHOUT ORIGINAL PACKAGING.
