Product Description

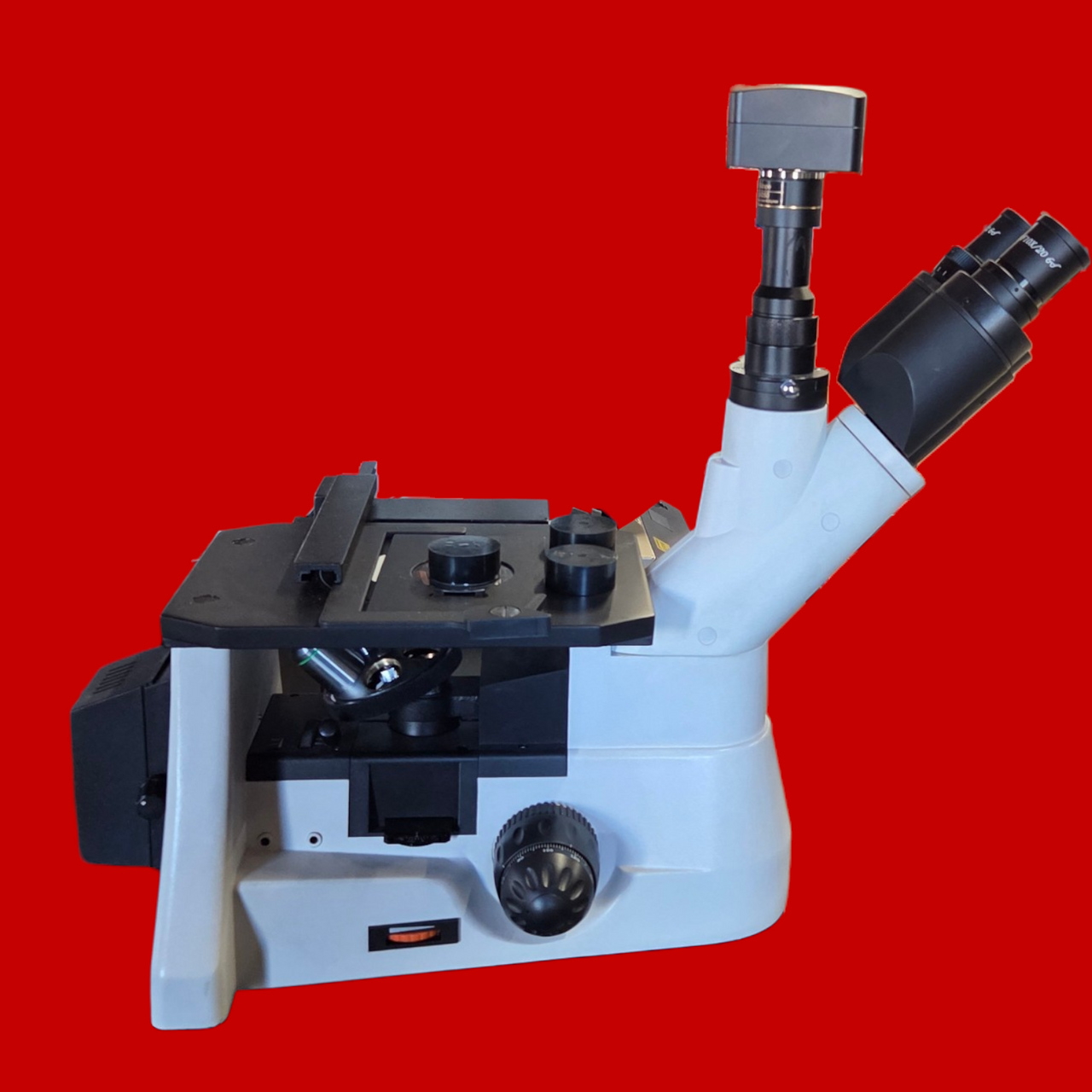

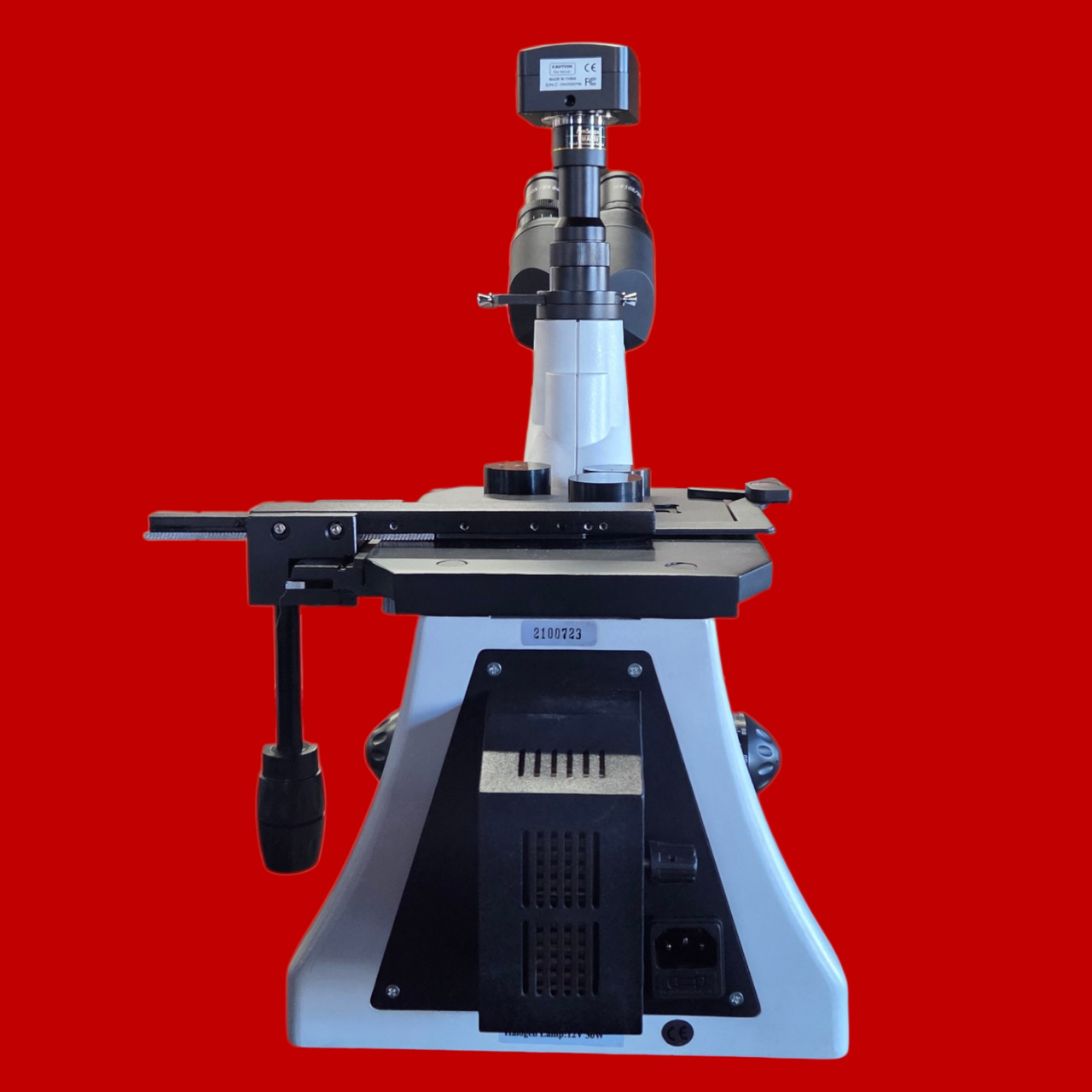

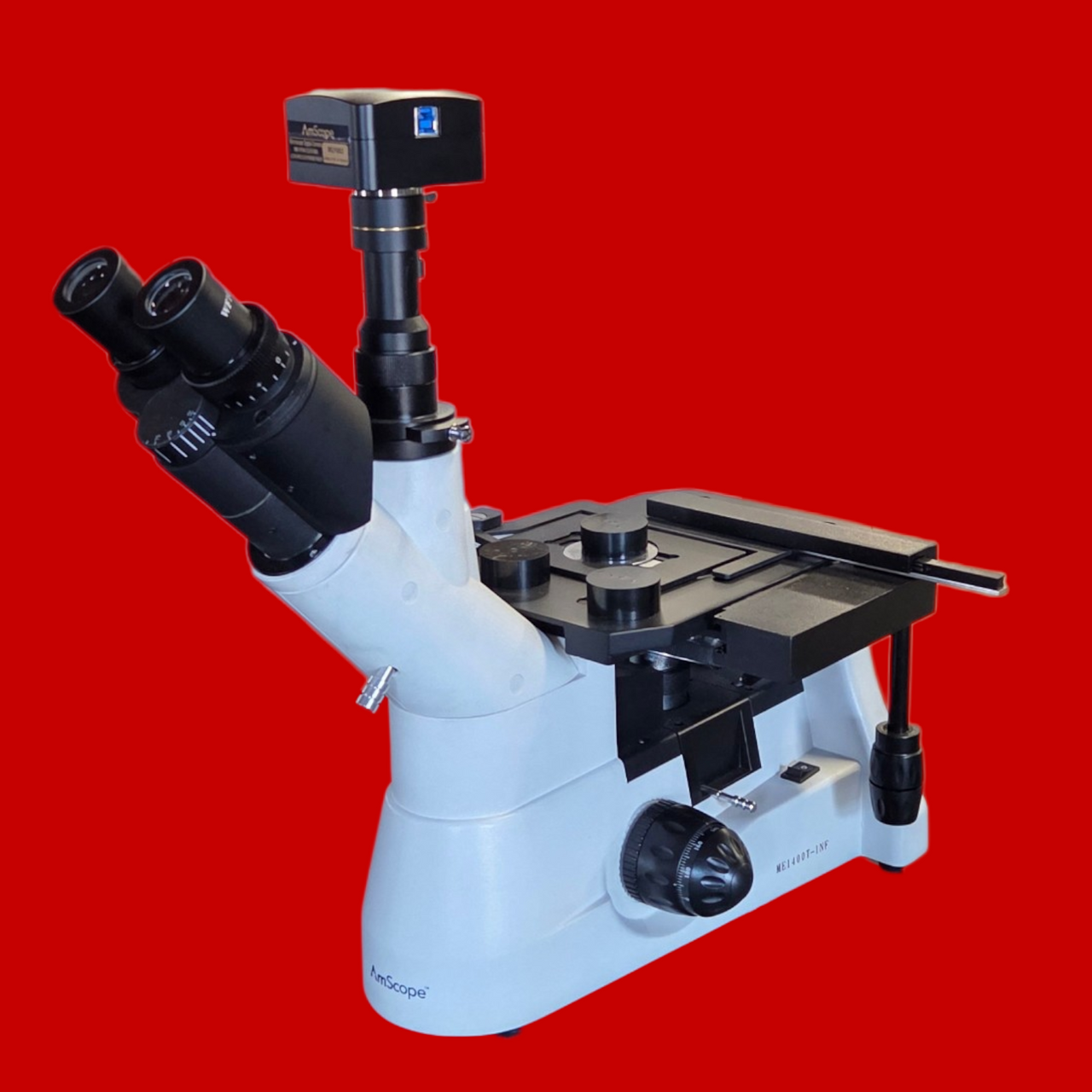

AmScope ME1400 Series Inverted Plan Optics Infinity-Corrected Polarizing Metallurgical Trinocular Compound Microscope 50X-500X Magnification with w/ 10MP USB 2.0 C-mount Camera, ME1400T-INF-10M
PN: ME1400T-INF-10M
Key Features
- 50X to 500X magnification range using four metallurgical objective lenses and 10X eyepieces for four unique settings. *This microscope comes with 3 objectives. 20 X 0.40, 5 x 0.1, 10 x 0.25.
- An inverted microscope with simple polarization for manufacturing, QC, and materials analysis
- The infinity-corrected optical system reduces distortion and improves color accuracy.
- Use a combination of brightfield and simple polarization to bring out complex details such as stress in metal and other materials.
- The inverted format supports heavier and irregular samples like cut ore and metal fragments.
- The trinocular head provides a dedicated photo port for adding a camera for recording photos and videos.
- Monitor and capture photos and videos with the included 10MP USB 2.0 camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.
Specifications:
- Head: Compensation Free Trinocular Head, Inclined 45°
- Eyepiece: 10X
- Objective: infinity metallurgical objectives, 5X/0.1 (W.D. 25mm), 10x/0.25 (W.D.12mm), 20X/0.4 (W.D.10mm)
- Nosepiece: quintuple
- Interpupillary Distance: 2"-3" (50mm-75mm)
- Mechanical Stage: two-layer; size: 9.53"x6.77" (242x172mm); traveling range: 3"x1.97" (75x50mm)
- Central Stage: 4.33" (110mm) in diameter
- Condenser: NA 0.3 Abbe with iris diaphragm, working distance: 3" (75mm)

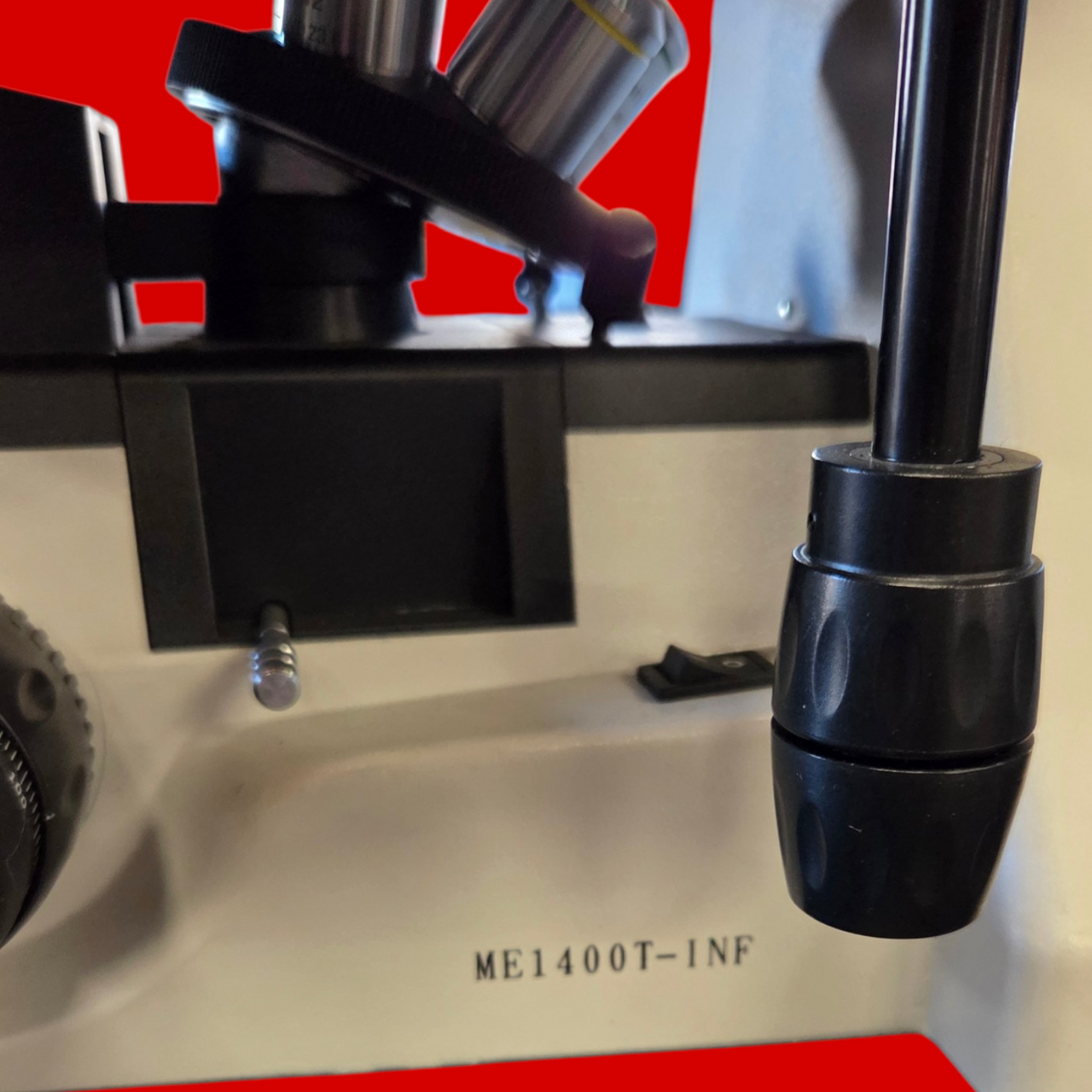

- Focus: coaxial coarse & fine focusing system rack and pinion with tension control; fine focusing scale value 0.000079" (0.002mm)

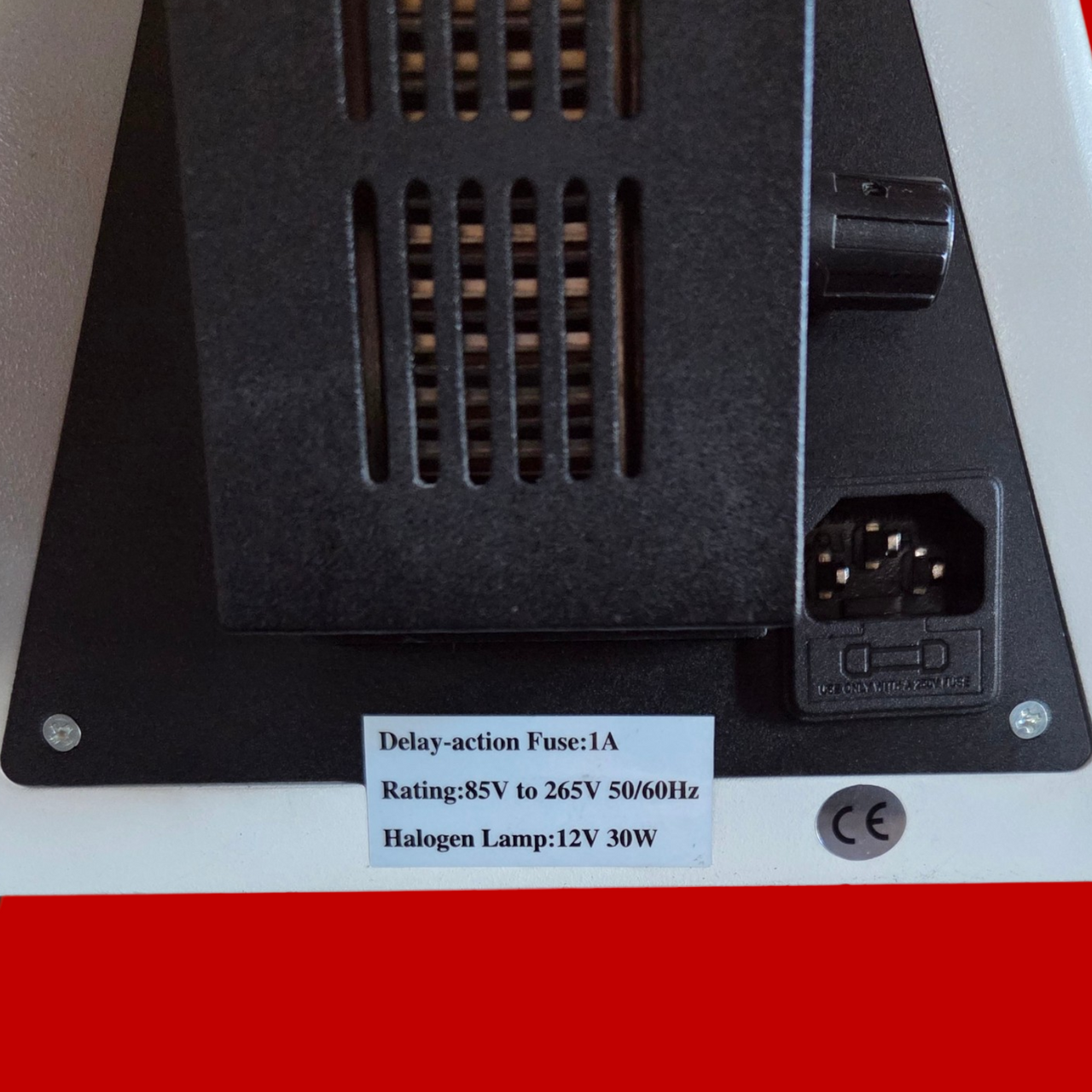

- lllumination: Epi-Kohler 12V/30W, with aperture iris diaphragm and field iris diaphragm
- Power Supply: AC 85V-230V
- Filter: blue, green, yellow
- Polarizing Outfit: analyzer 360 degree rotatable, polarizer & analyzer can be slided in/out of the optical path
Camera Specifications:
- Sensor Type: CMOS
- Sensor Optical Format: 1/2.3"
- Active Pixels: 10.6M (3854 x 2748)
- Pixel Size: 1.67µm x 1.67µm
- Active Sensor Area: 5.99mm x 4.59mm
- Shutter: electronic rolling shutter
- Sensitivity: 0.31V/Lux-sec
- Spectral Response: 380-650nm with IR-cut filter
- Capture Resolution and Maximum Framerate: 1.9fps @ 3585X2748, 8fps @ 1745X1308, 27fps @ 872x654
- Connectivity: USB 2.0
- Lens-mount: C-mount
- Compensating Lens: 0.5X
- Power: 5VDC over USB
