Product Description

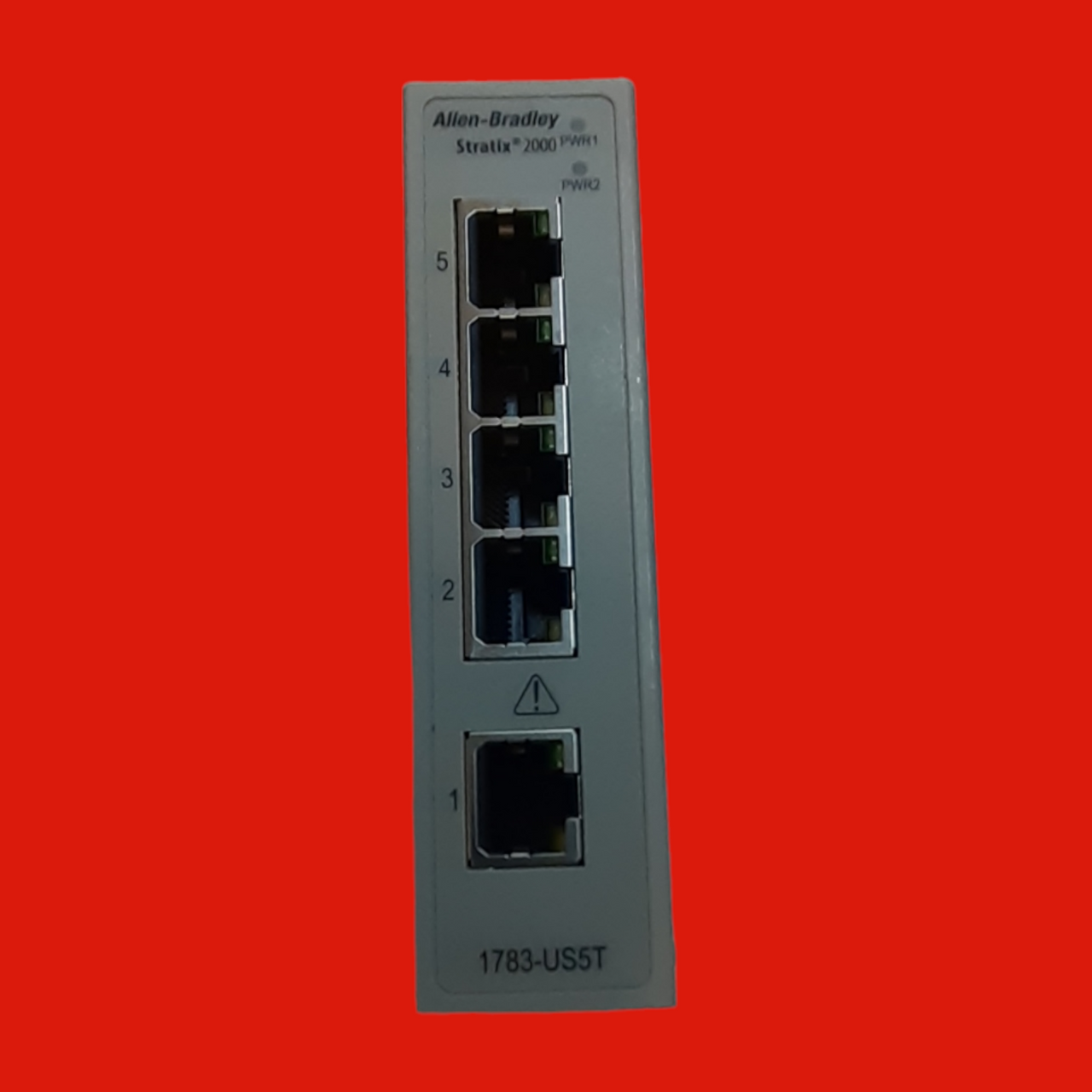

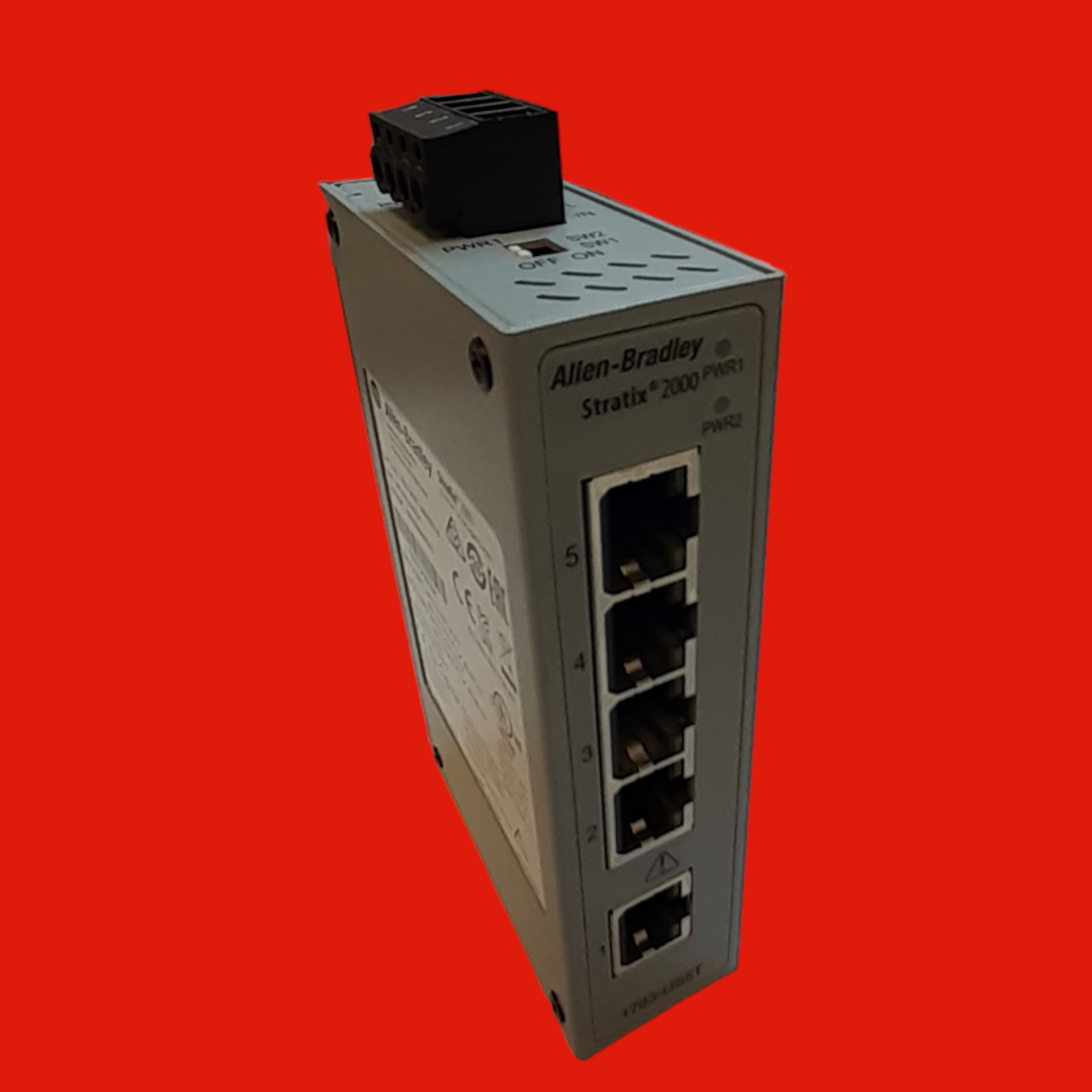

Allen Bradley Stratix 2000 5 Port Unmanaged Switch, 1783-US5T Series B
PN: 1783-US5T
The Allen-Bradley Stratix 2000 5 Port Unmanaged Switch, 1783-US5T Series B is a compact, low-cost Ethernet switch that is ideal for small control networks and requires no configuration. It features five copper 10/100 ports, and is powered by an external 24 VDC / 24 VAC supply voltage with a power consumption of 3.4 Watts. It also has an industrial-grade enclosure with an IP-30 rating and extended temperature range for enhanced environmental protection.
- TYPE: Unmanaged Switch
- # OF FIBER PORTS REQUIRED: None
- NUMBER OF COMBO PORTS(COPPER/FIBRE): none
- DATA: STRATIX ETHERNET FAMILY: Stratix 2000
- ENVIRONMENT: IP20
- ETHERNET FAMILY: Stratix 2000 , 5 port unmanaged switch
- NETWORK MEDIA: 1585 Ethernet Cables Cat5e, 100BASE-TX, 100 Mbit/s, 8 Conductors, RJ45, Straight Male, Standard, RJ45, Straight Male, Teal Robotic TPE, Weld Splatter, sun light and oil resistant; UL CMG, CMX; cUL CMG; Standard TIA 568-B, flex rated
- MOUNTING: Din Rail
- OPERATING TEMPERATURE: 0...60 °C (32...140 °F)
- PORTS PER MODULE: 5
