Product Description

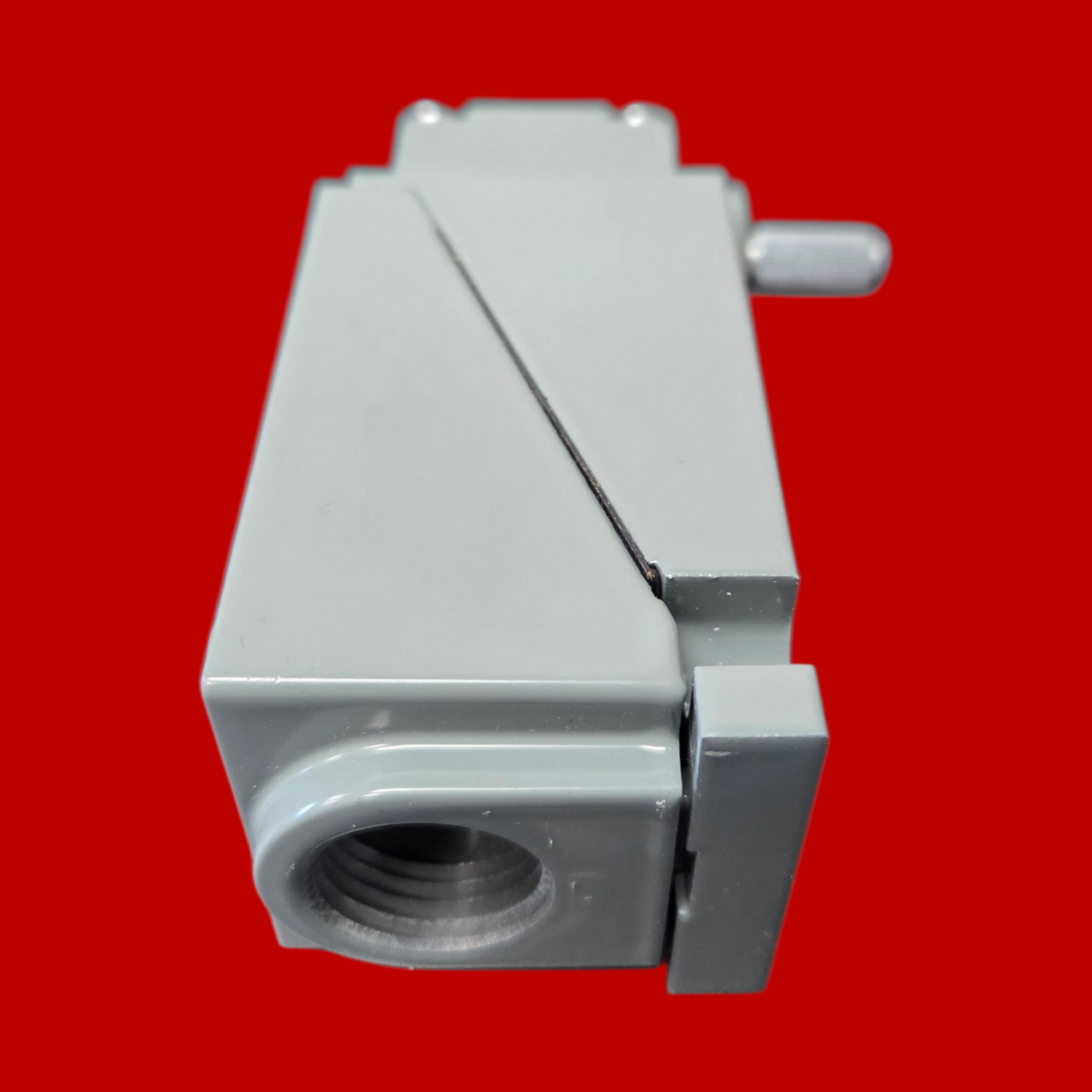

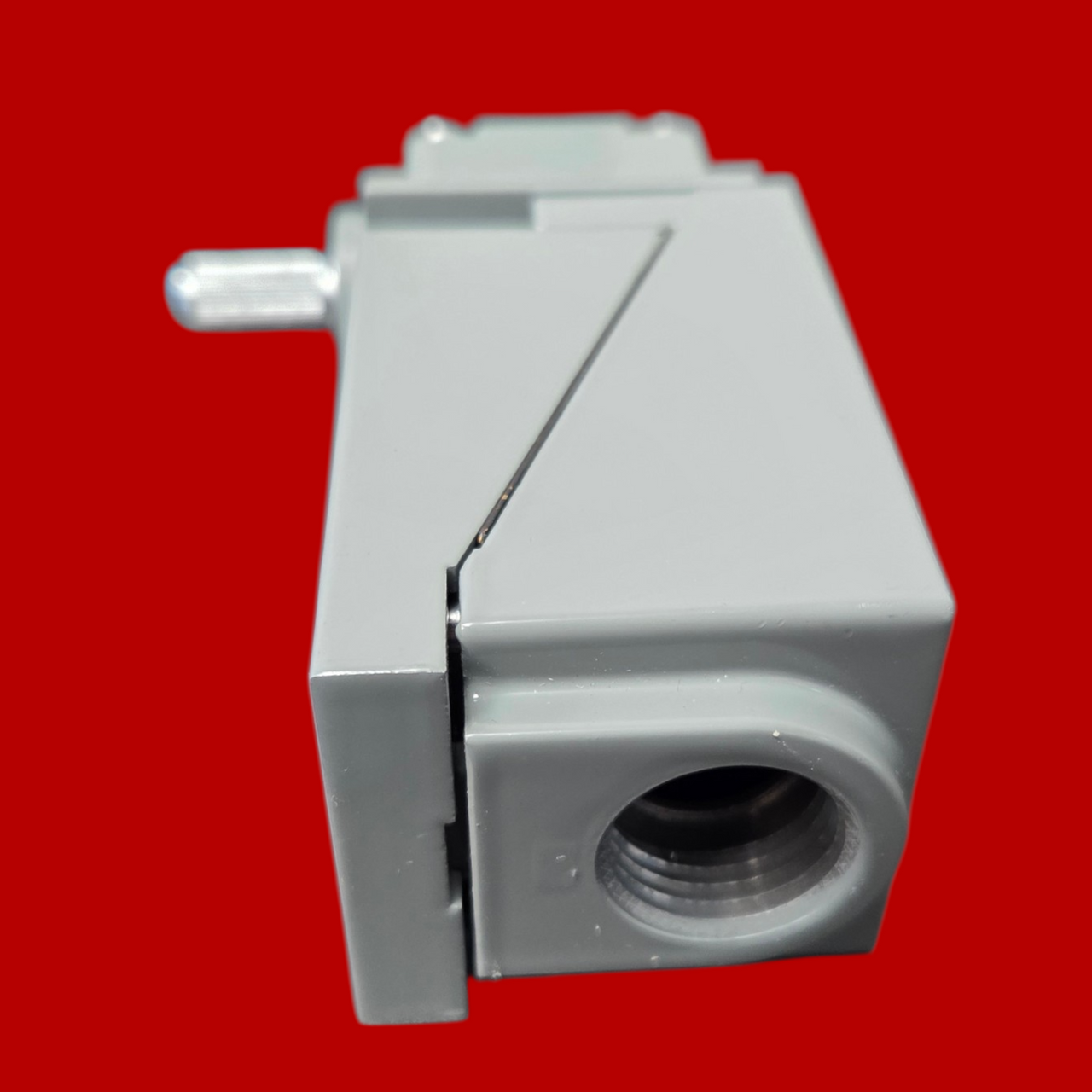

Allen Bradley 802T-AP Limit Switch, Series J
Part#: 802T-AP
Series: J

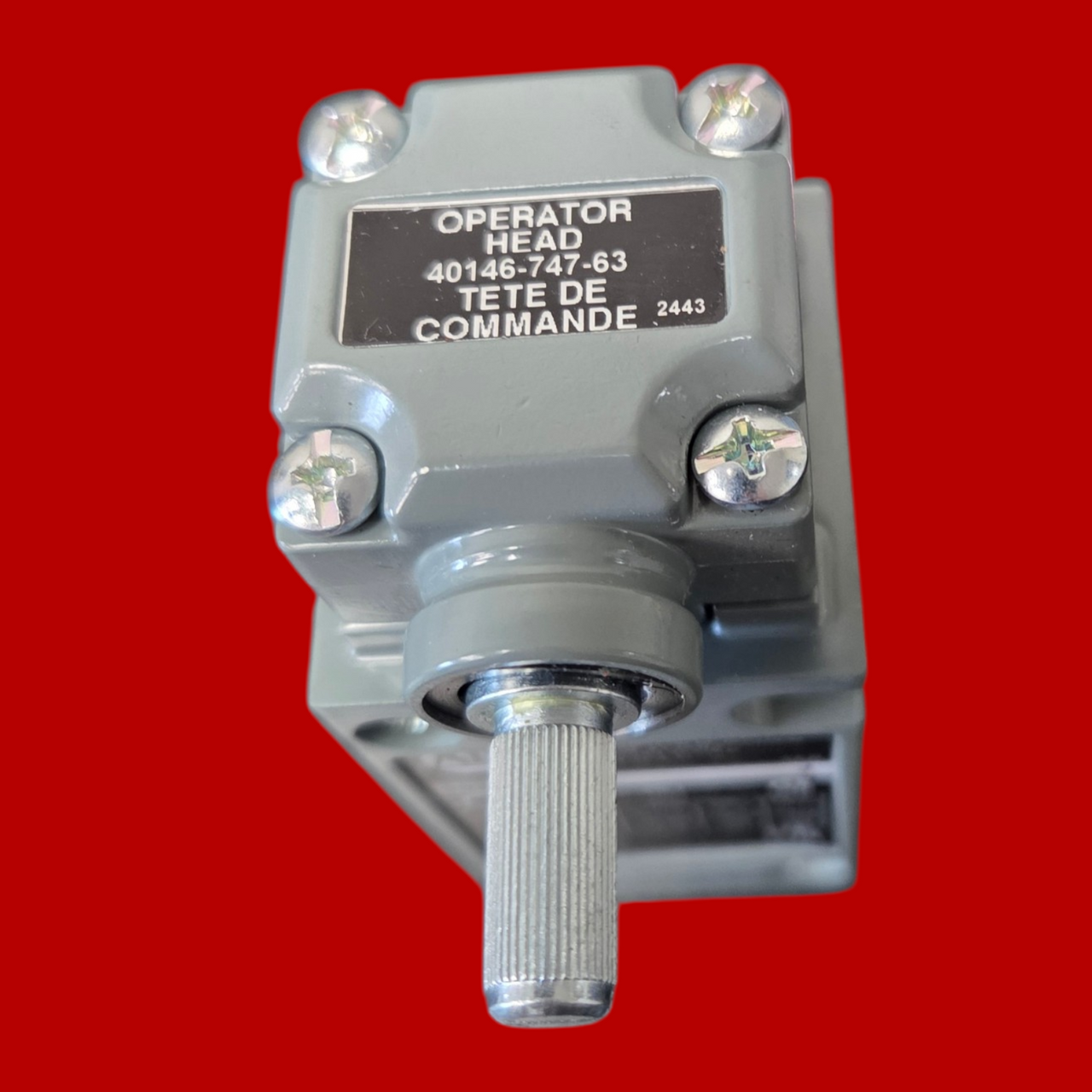

Operator Head - 40146 747 63
The Allen Bradley 802T-AP Limit Switch (Series J) is a heavy-duty, oiltight plug-in limit switch designed for industrial automation and sensing applications. It features a spring-return lever mechanism and is rated for high-durability performance in harsh environments.
- Operation Mode: Supports both Clockwise (CW) and Counter-Clockwise (CCW) operation.
- Contact Configuration: Standard 2-circuit design with 1 Normally Open (N.O.) and 1 Normally Closed (N.C.) contact.
- Electrical Ratings: Rated for up to 600V AC with a continuous current capacity of 10 Amperes (NEMA A600 rating).
- Operating Torque: Features a standard operating torque of 0.29 N-m (2.6 lb-in).
- Travel Angles: Maximum travel for actuation is 13°, with a maximum reset travel of 7°.
- Enclosure Rating: Built with NEMA Type 4, 6P, and 13 oiltight construction, it also carries an IP67 rating for protection against dust and water immersion.
- Operating Temperature: Rated for industrial use between -18°C and 110°C (0°F to 230°F)
