Product Description

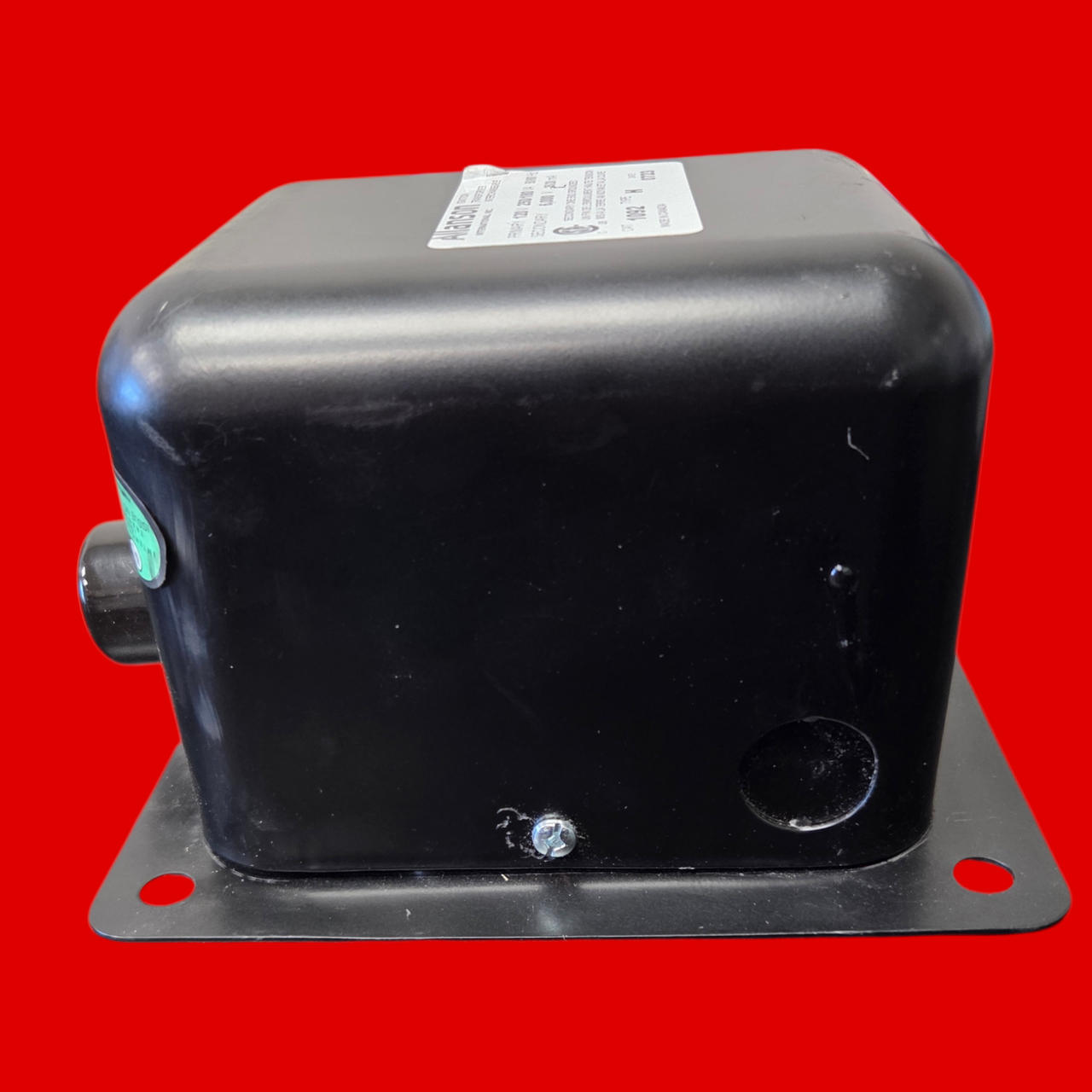

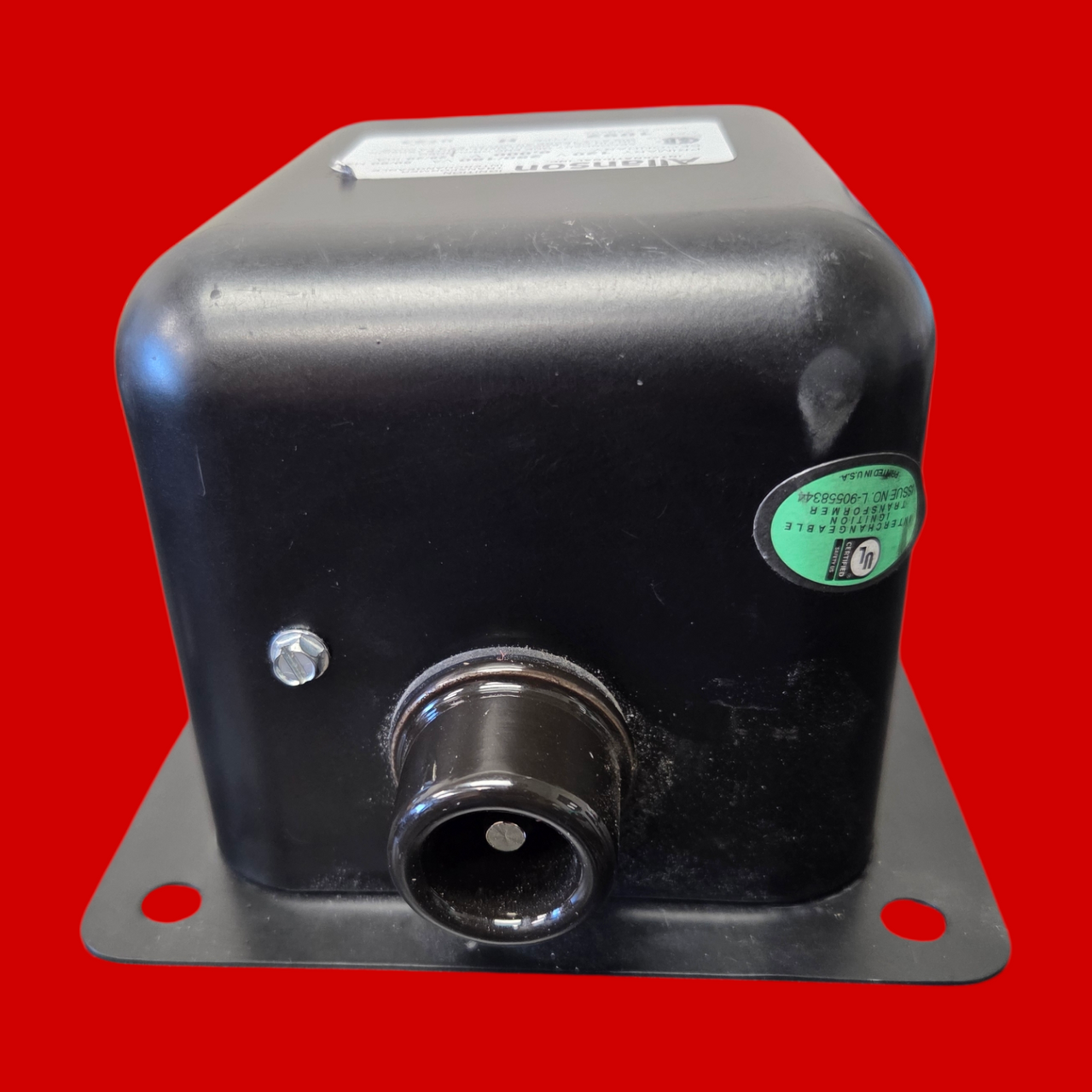

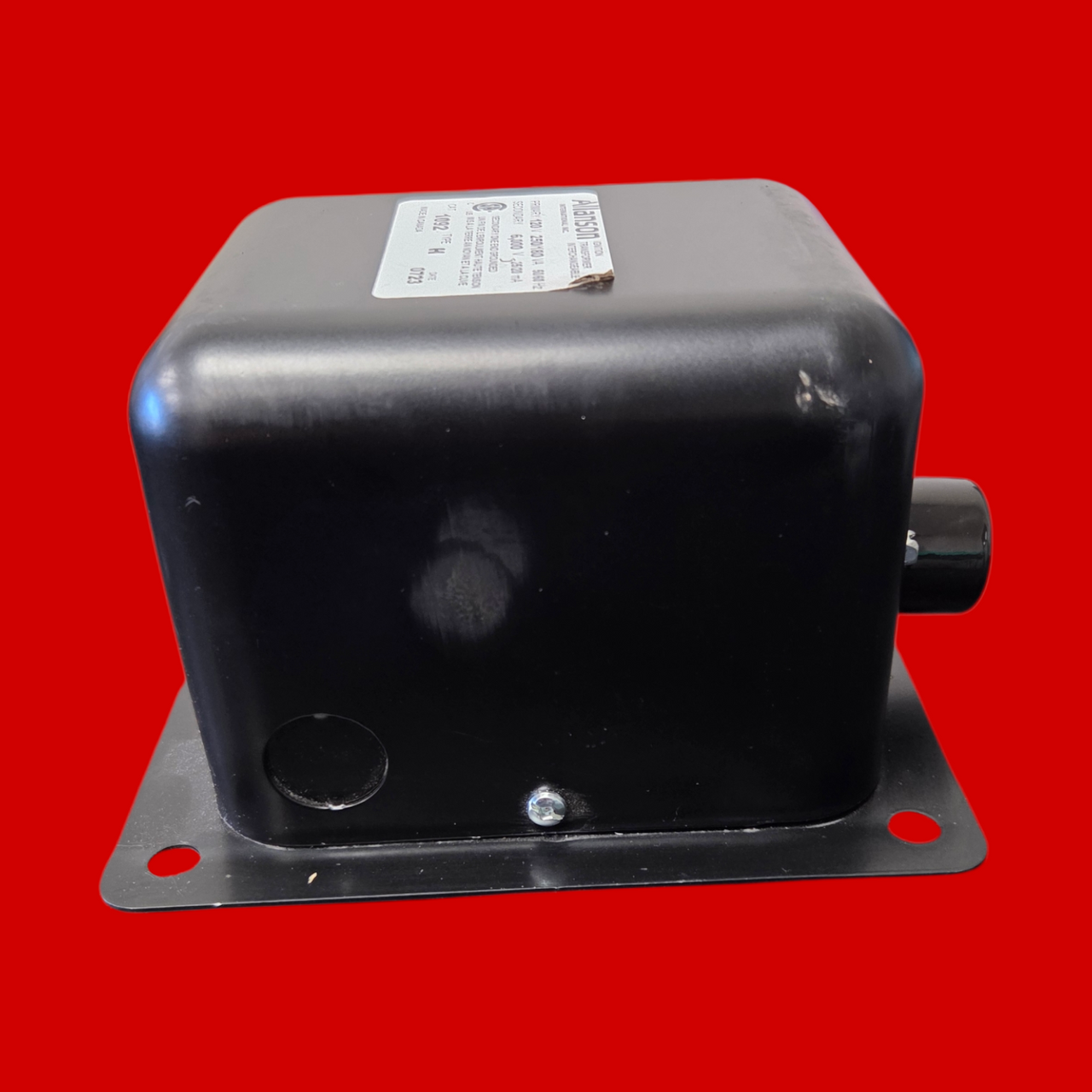

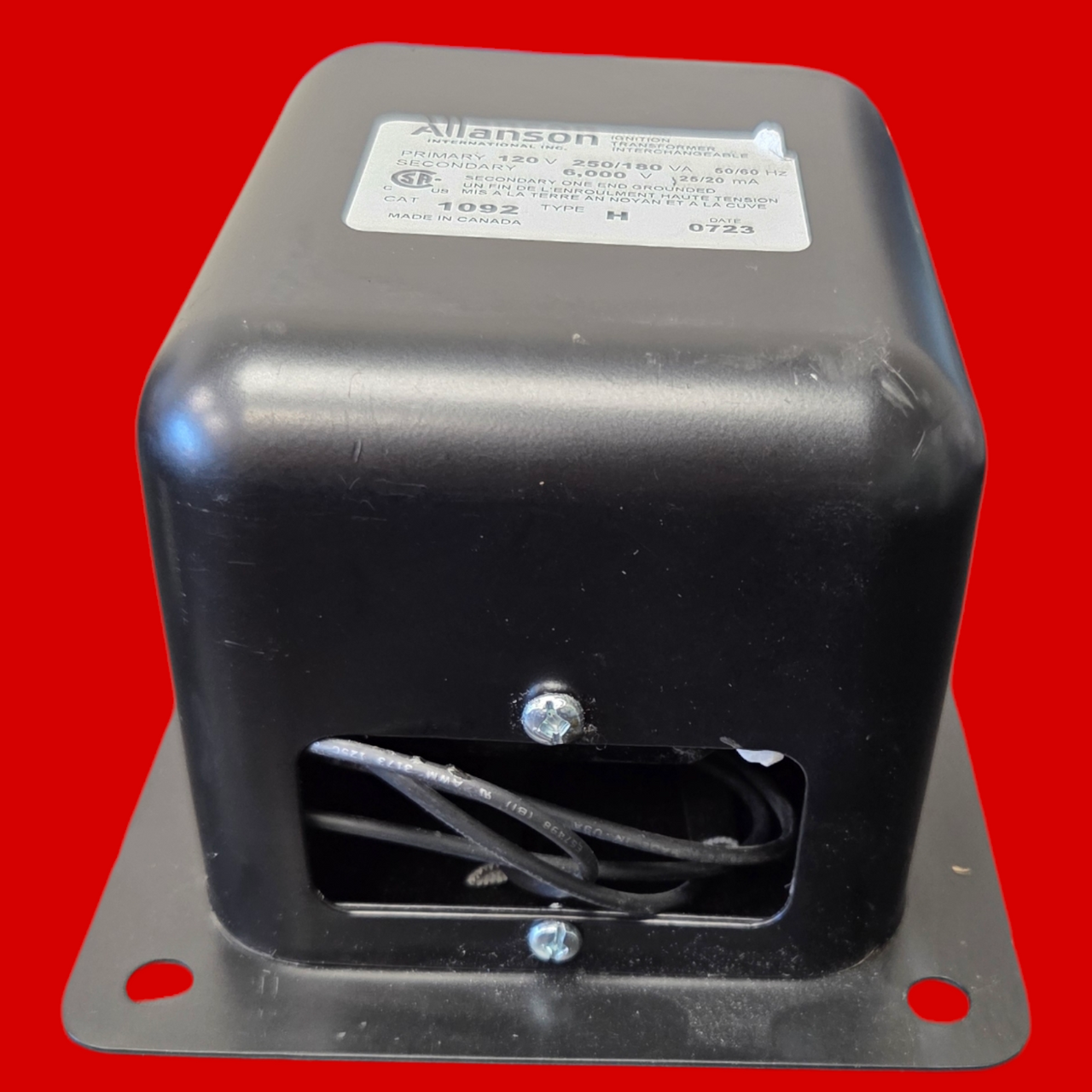

Allanson 1092-H Single Pole Ferromagnetic Transformer
PN: 1092-H
Features:
- Designed with high temperature wire
- Runs cooler, quieter and safer on all types of burners.
- Designed to burner manufacturer?s specifications
- Meets American and European noise emission standards offering superior EMI and RFI protection.
- Single porcelain designs
- Dependable Power
Specifications:
- Rated Operating Input Voltage (V): 120
- Operating Input Voltage Range (V): 108-132
- Input Supply Frequency (Hz): 50/60
- Primary Voltage - Amperes (VA): 250/180
- Secondary Voltage (RMS): 6000
- Secondary Short Circuit Current (mA): 25/20
- Storage Temperature (°C): -40 to +80
- Operating Temperature (°C): -30 to +40
- Operating Relative Humidity (%): 90
- Loading Air Gap (inches): 1/16 - 1/8
