Product Description

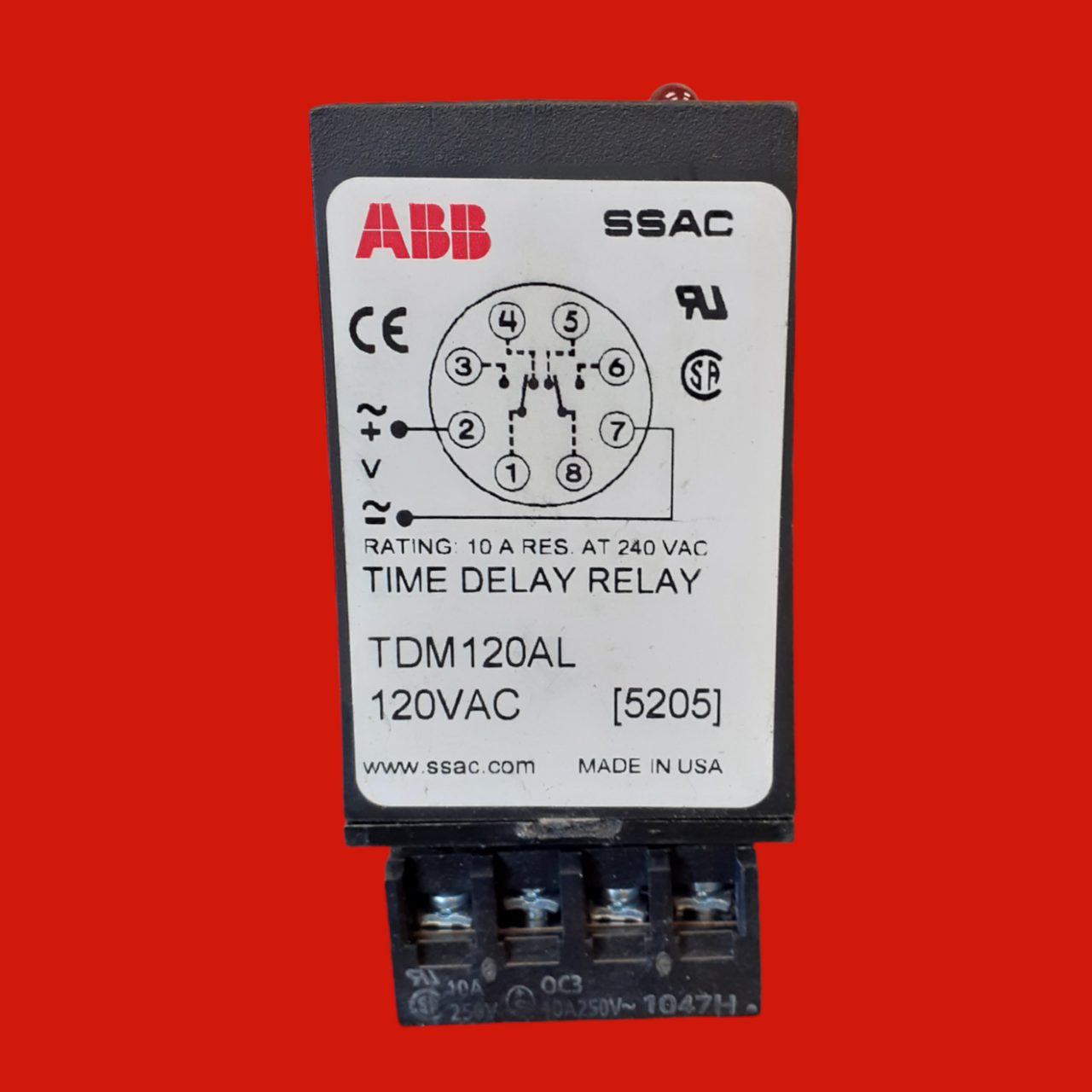

ABB - SSAC Timer Delay-on-Make 120VAC Relay 1 1023s 8-PIN LED, TDM120AL
PN: TDM120AL
The TDM Series is a delay-on-make timer that combines accurate digital circuitry with isolated, DPDT relay contacts in an industry standard 8-pin plug-in package. DIP switch adjustment allows precise selection of the time delay over the full time delay range. The TDM Series is the product of choice for custom control panel and OEM designers.
Features
- Switch settable time delay
- Three time ranges from 0.1s - 10,230s
- ±0.1% repeat accuracy
- ±2% setting accuracy
- 10A, DPDT output contacts
- LED indication
