Product Description

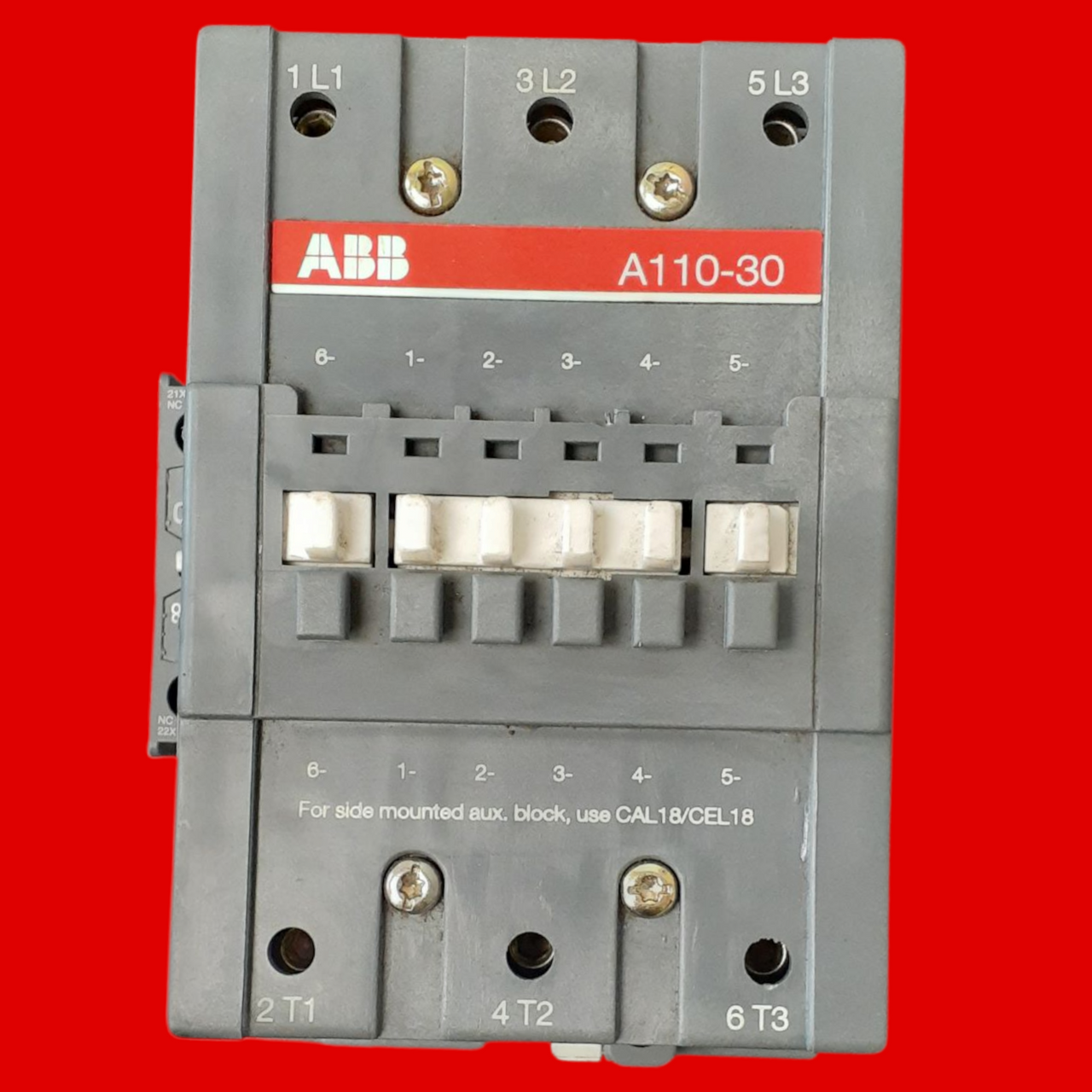

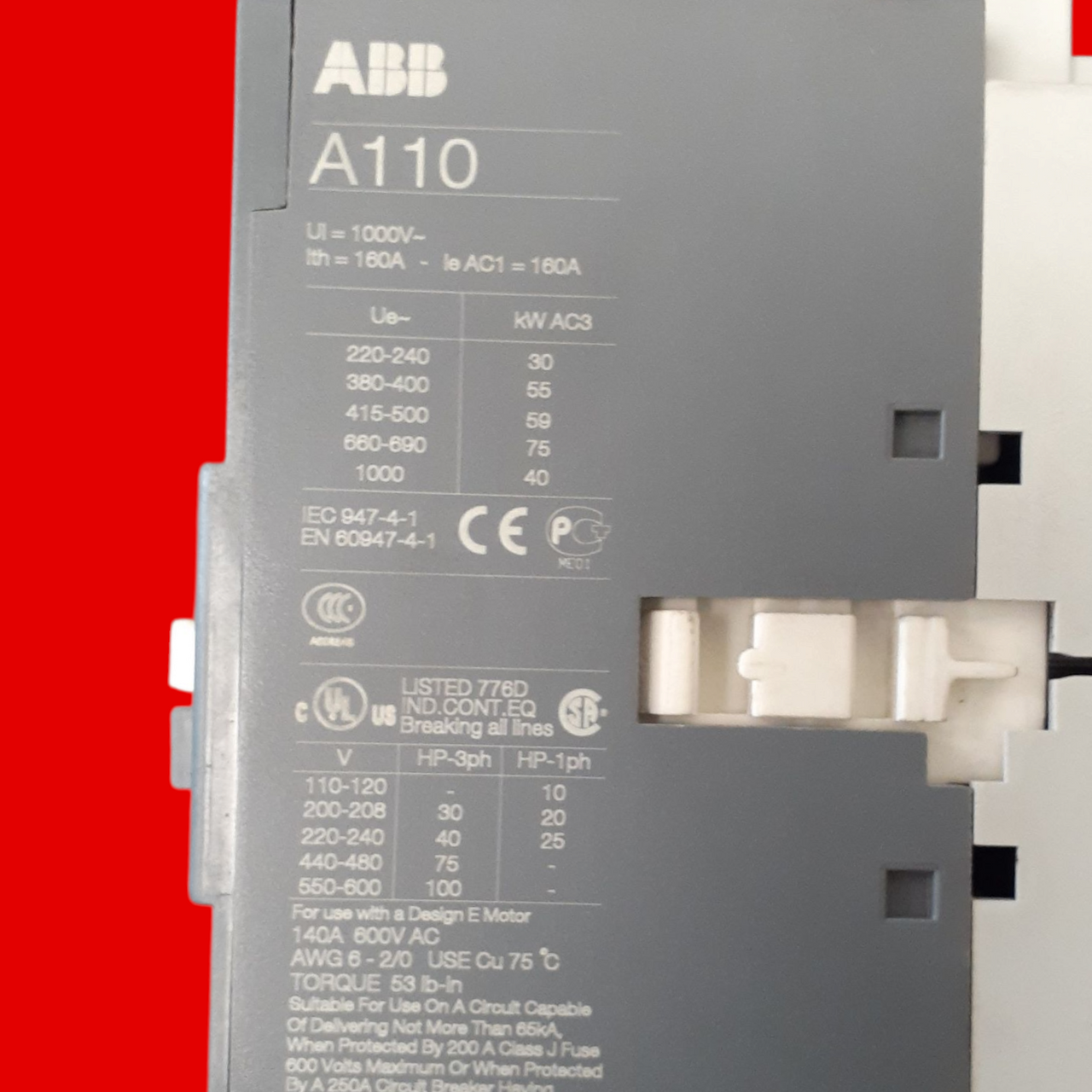

ABB A110-30-11-84 110V 50Hz / 110-120V 60Hz Contactor
PN: A110-30-11-84
A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V.
- Number of Main Contacts NO: 3
- Number of Main Contacts NC: 0
- Number of Auxiliary Contacts NO: 1
- Number of Auxiliary Contacts NC: 1
- Number of Poles: 3P
- Rated Operational Voltage: Main Circuit 1000 V
- Rated Frequency (f): Main Circuit 50 / 60 Hz
- Enclosure Type : IP20
- Type : Magnetic
- Coil Voltage : 110 to 120 VAC
- Contact Configuration : 3NO
- Number of Poles : 3
- Operating Temperature : -40 to 70 deg C
- Dimensions : 148 mm H x 102 mm W x 123.5 mm D
- Terminal Type : Screw
- Wattage : 55 kW
- Contact Type : Non-Reversing
- Coil Power Rating : 22/26/27/350/365/410/450 VA
- Contact Rating : 690 VAC
- Operating Cycles : 3600 Cycles
- Series : A110
- Number of Auxiliary Contacts : 1NO-1NC
- Maximum Load Current : 160 A
New without original packaging.
