Product Description
NUTEC MG-1900 Supermag Soluble Fiber Board - 1.5x12x36" (8 Pcs/Ctn)
PN:MG-1900

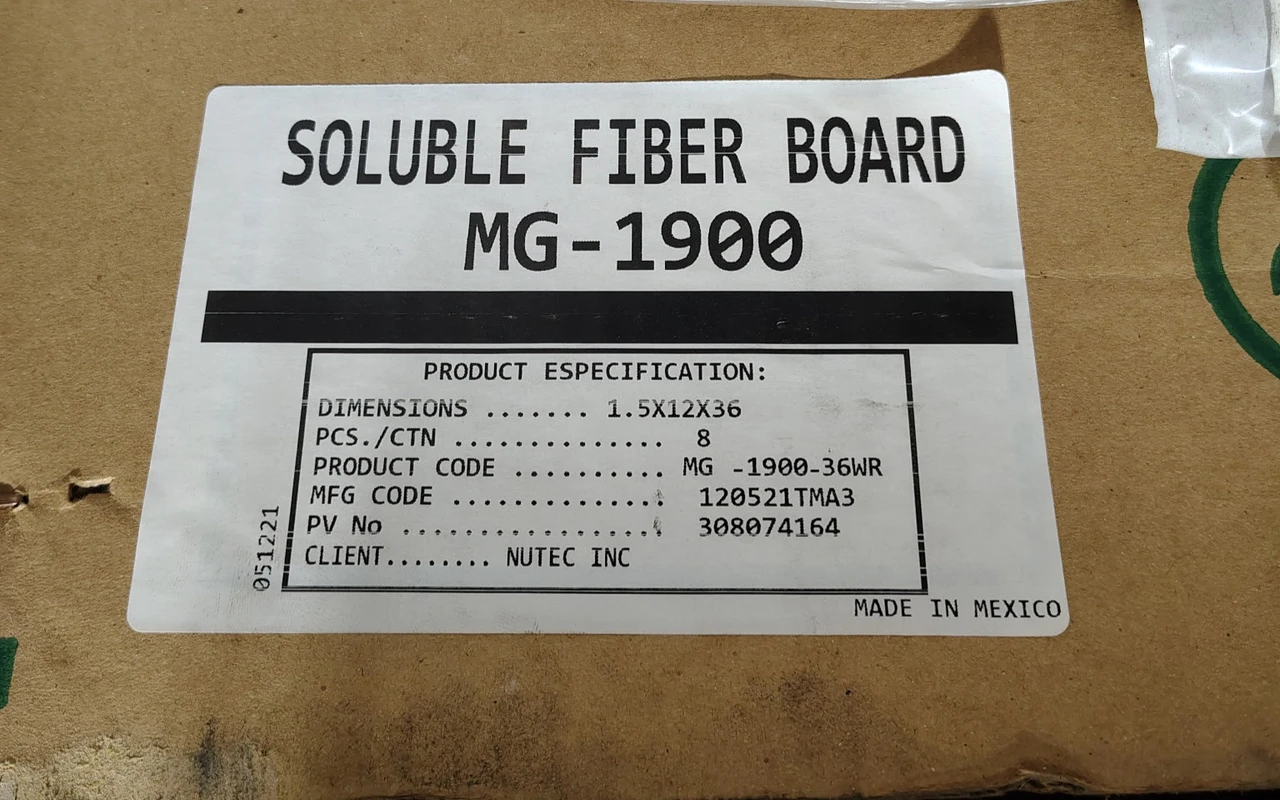

Product Specification:
Dimensions: 1.5" x 12" x 36"
Pcs./CTN: 8
Physical Properties
-
Maximum Use Temperature2012°F (1100°C)
-
Continuous Use Temperature1832°F (1000°C)
-
CompositionHigh Temperature Fiber Mix
-
Density lb/ft³ (kg/m³)16-20 (256-320)
MG 1900 vacuum-formed boards are a low-cost, high strength insulating board manufactured with the specific requirements of the refractory industry in mind. Made from a blend of high temperature fibers and other fillers, MG 1900 offers an effective solution compared to other mineral wool products used for similar applications. MG 1900 vacuumformed boards are ideal for refractory backup applications, comes standard with a water repellent coating as an added protection if installed behind refractory castables.
Key Features:
• Low Thermal Conductivity
• Low Heat Loss and Storage
• Lightweight • Erosion resistance
• Excellent machining and cutting characteristics
• Easy to Install • Contains No Asbestos
• High resistance to thermal shock
• Homogeneous structure. Machinable
• Non corrosive
Common Applications
- Refractory Lining for Industrial Furnaces
- Combustion Chamber Linings
- Boilers and Heaters
- Expansion Joints
- Board over Blanket Linings
- Back-up Insulation
- OEM Furnaces & Ovens
