Product Description

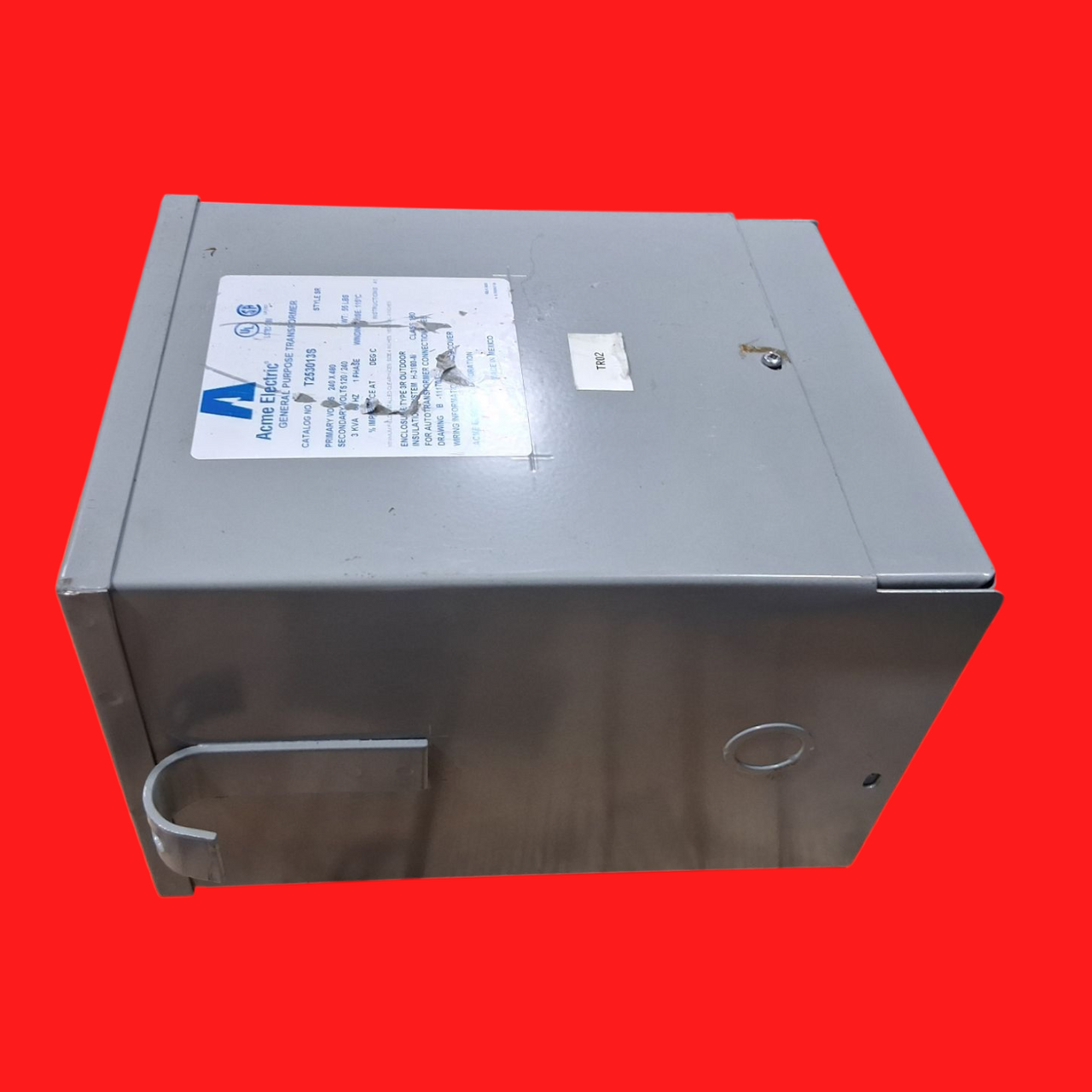

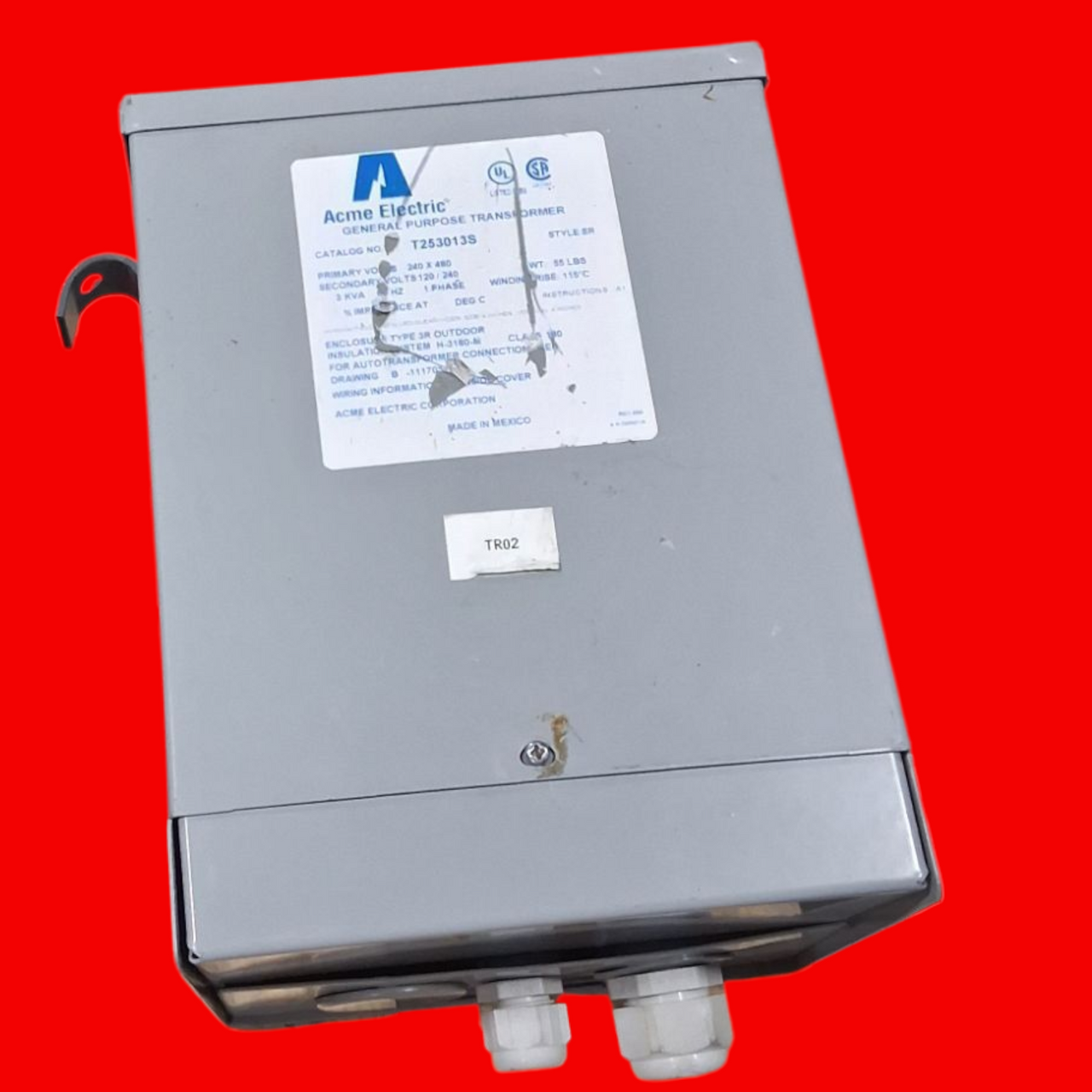

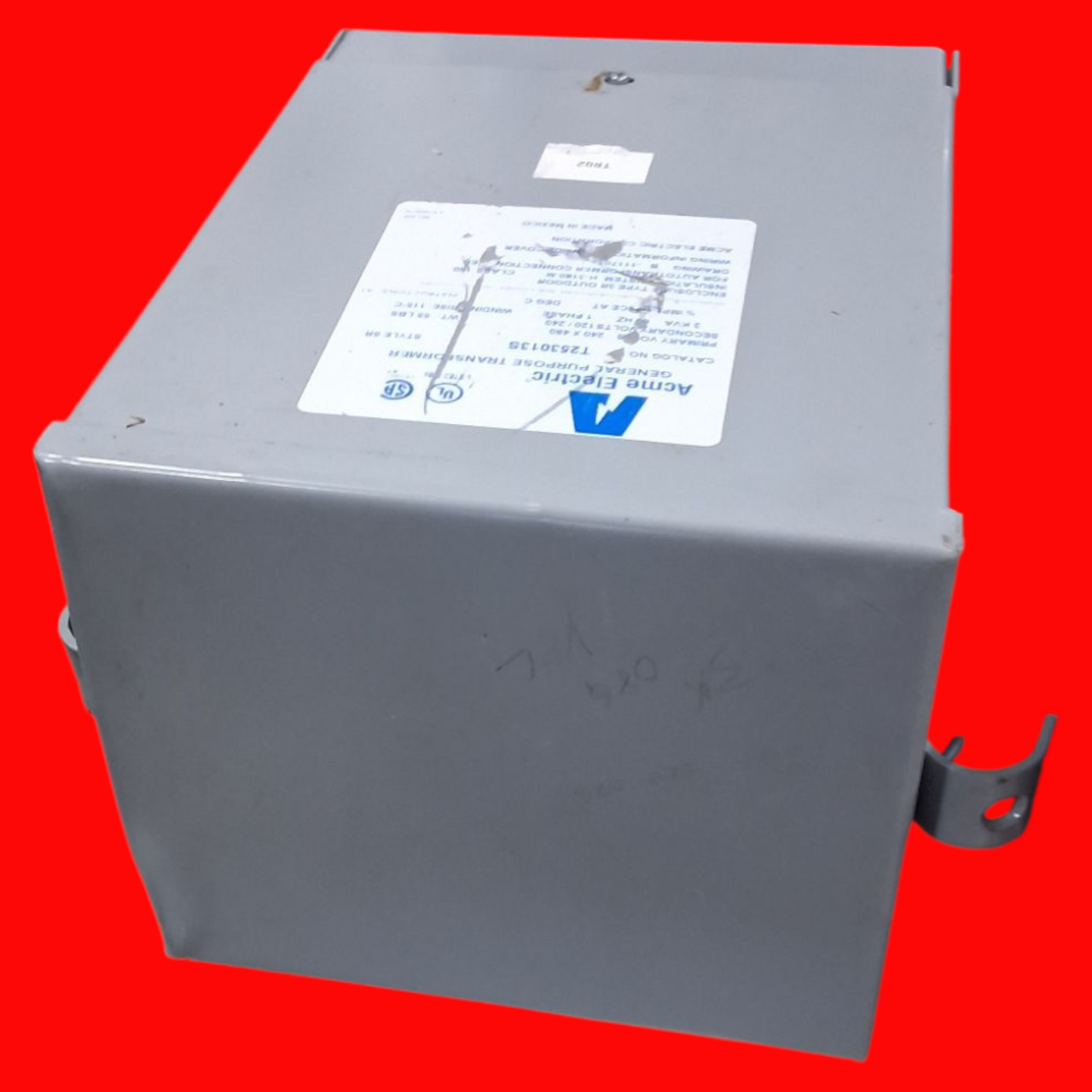

Acme Electric 3 kVA, Single Phase, 240X480 - 120/240V Dry-Type General Purpose Transformer- T253013S
Part#: T253013S
- Power Rating: 3 kVA (3,000 VA)
- Primary (Input): 240/480 VAC
- Secondary (Output): 120/240 VAC
- Configuration: Single-phase, 60 Hz
- Enclosure: NEMA 3R rated steel, finished in gray powder polyurethane paint
- Insulation: Class H (180°C) with a 115°C temperature rise
- Winding Material: Copper (CU)
- Features: Includes an electrostatic shield for cleaner power and reduced electrical noise
- Mounting: Designed for wall mounting
- Dimensions: 11.5" H x 10.31" W x 7.13" D
